Product Data Sheet · Laboratory Equipment

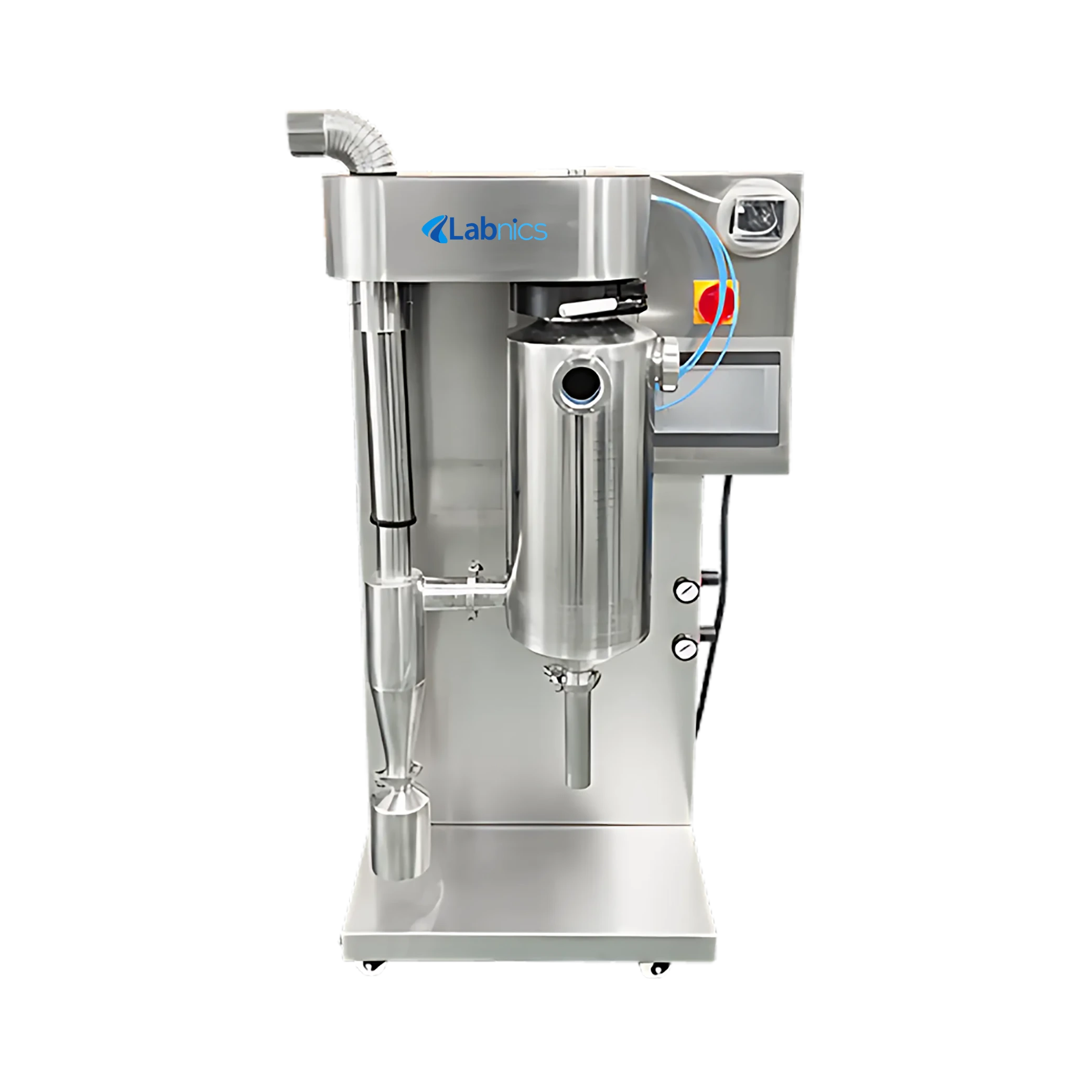

Spray Dryer NSPD-102 provides up to 2000ml/h of liquid for efficient drying performance. This dryer features a nozzle and delivers steady airflow at 5.6m³/min. It supports precise thermal control with inlet temperatures up to 300°C. It includes an integrated air compressor and fan for consistent performance. Our unit offers a compact and space-saving design, ensuring efficient drying in lab.
| Air Inlet temperature control | 30 to 300℃ |
|---|---|
| Air outlet temperature control | 30 to 150℃ |
| Evaporation | 2000ml/H |
| Maximum feeding capacity | 2000ml/H |
| Maximum air volume | 5.6m³/min |
| Maximum air Pressure | 1020Pa |
| Nozzle diameter | 1.00mm |
| Operating Temperature | 10 to 40°C |
| Air compressor power | 0.2KW |
| Electric heater power | 3KW AC220V |
| Fan power | 0.55kw |
| Dimension (L×W×H) | 800×650×1300 mm |
| Weight | 125KG |
