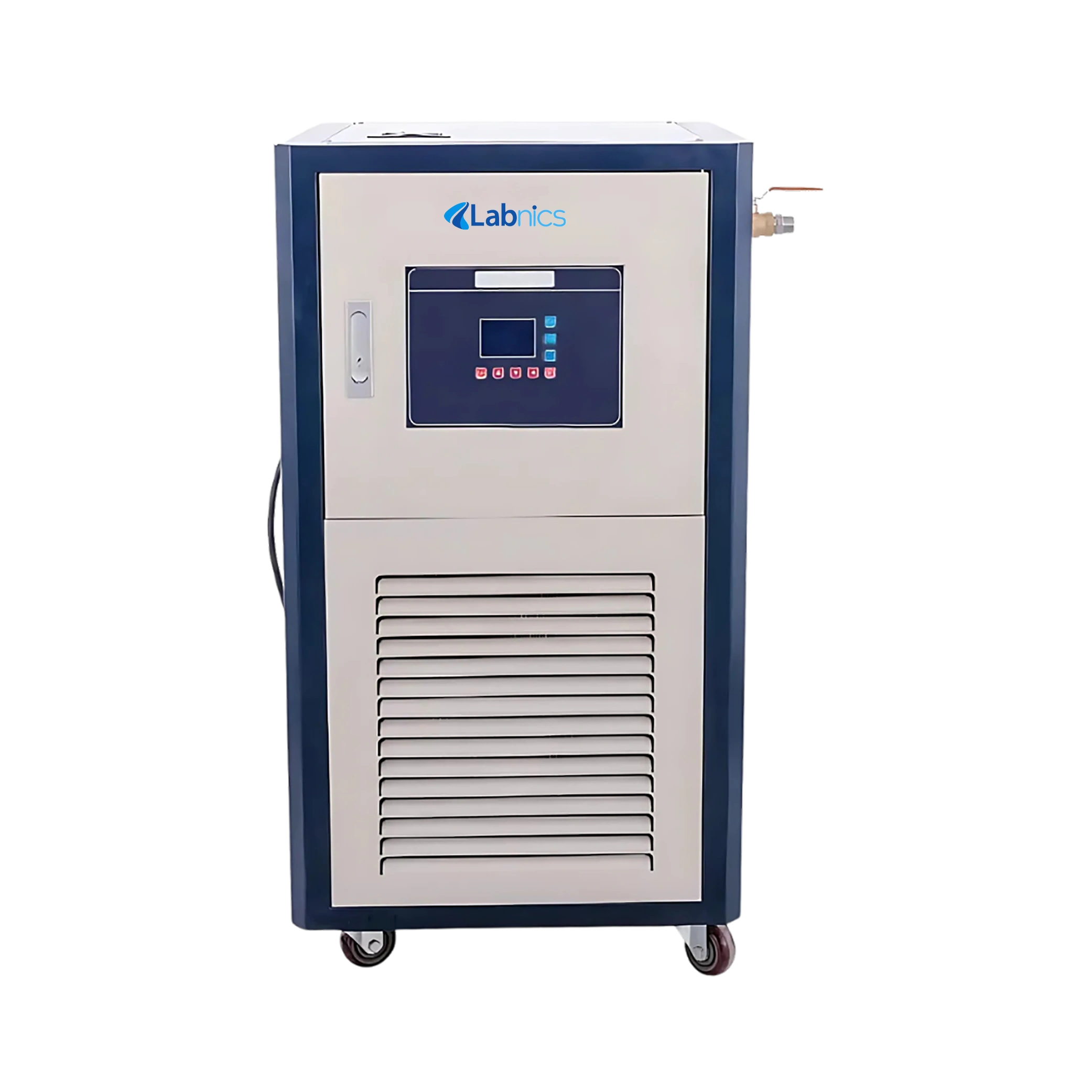

Refrigerated and Heating Circulator NRHC-406 handles a 30L capacity and is ideal for efficient thermal fluid circulation. It supports a wide temperature range from -20°C to 200°C, ensuring versatile application. This unit uses a PT100 temperature sensor for precise measurements. It withstands a maximum pressure of ≤0.4MPa, offering safe performance. Our circulator comes with a corrosion-resistant cold plate sprayed body for enhanced durability.
| Capacity | 30L |
| Temperature range | -20°C to 200°C |
| Ambient temperature | 5 to 35°C |
| Temperature accuracy | ±0.1°C |
| Temperature sensor | PT100 |
| Room humidity | ≤70% ventilation |
| Flow | 20 to 40L/min |
| Lifting head | 4 to 6M |
| Pressure | ≤0.4MPa |
| Refrigerant | R22 |
| Body material | Cold plate spray anticorrosion |
| Compressor type | Closed |
| Compressor quantity | 1 |
| Screen display | LCD screen, key operation |
| Safety protection | Delay, overcurrent, overheating, and over-temperature |
| Compressor power | 1838W |
| Cooling capacity | 4648W |
| Heating power | 6000W |
| Total power consumption | 7938W |
| Power supply | 1phase 220V/50Hz |
| Outer loop interface | 4 points wire mouth with 4 points × 2 meters metal circulation pipe two |
| Circulating fluid | Grade A silicone oil |
| Product dimension | 695×720×1100 mm |
| Packaging dimension | 800×740×1270 mm |
| Net weight | 140 kg |
| Packaging weight | 172 kg |
Refrigerated and Heating Circulator NRHC-406 is used to provide precise temperature control for processes requiring both heating and cooling. It is applied in chemical reactors, pharmaceutical research, biotechnology labs, and industrial process control systems.
