Product Data Sheet · Laboratory Equipment

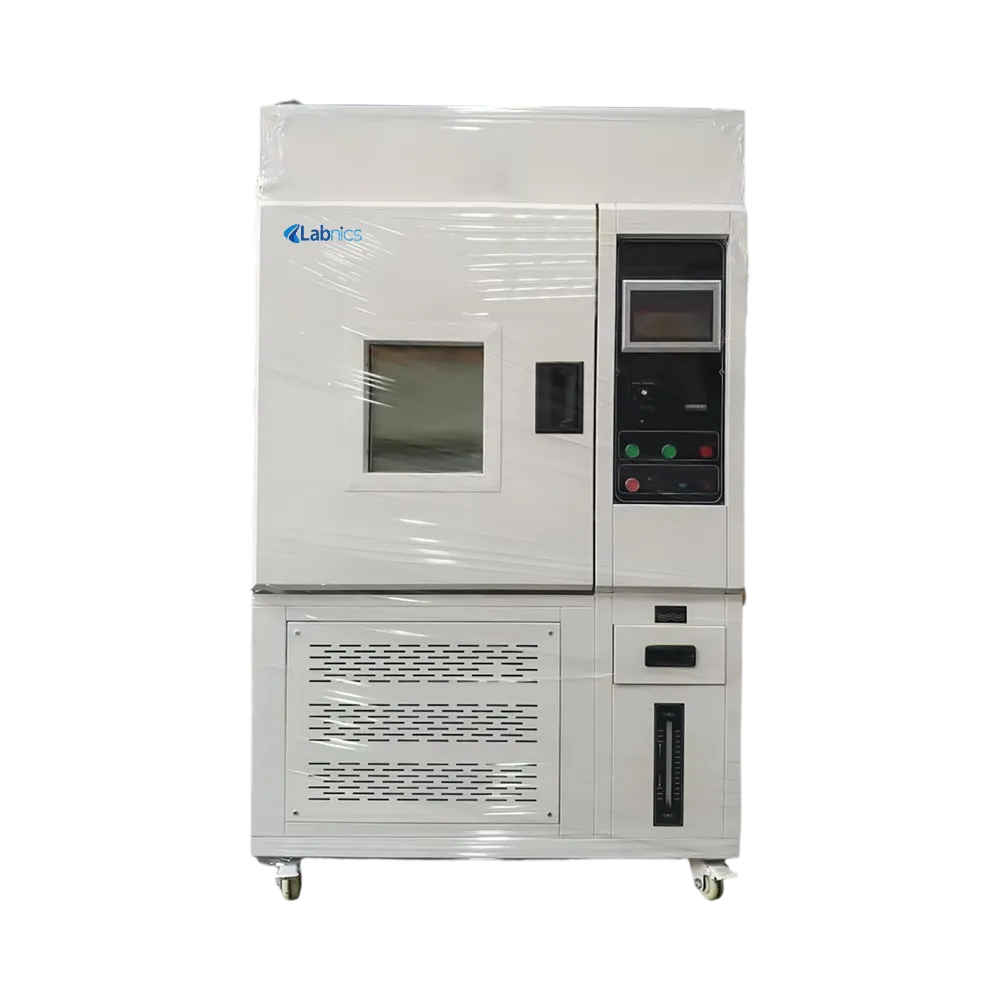

Photostability Chamber NPSC-101 has a 150 L capacity and a temperature range of 0℃ to 80℃ for precise environmental control. It features a 7-inch touch controller with programmable test modes. Equipped with an imported xenon arc lamp, it offers adjustable illumination for accurate photostability testing. The compact, energy-efficient chamber features built-in safety alarms, making it ideal for pharmaceutical, cosmetic, and chemical laboratories.
| Chamber Capacity | 150 Liters |
|---|---|
| Temperature Range | 0 ℃ to 80 ℃ |
| Temperature Deviation | ± 2 ℃ (without illumination) |
| Humidity Range | 20% to 98 % RH |
| Humidity Deviation | ± 2.5 % RH (≥ 75 % RH) |
| Blackboard Temperature Range | 0 ℃ to 110 ℃ |
| Blackboard Temperature Accuracy | ±3 ℃ |
| Light Source | Imported air-cooled xenon arc lamp |
| Xenon Lamp Power | 1800 W |
| Xenon Lamp Life | Approx. 1600 hours |
| Spectral Wavelength Range | 290 to 800 nm |
| Irradiance Intensity | 0 to 1200 W |
| Irradiance Measurement Bands | 340 nm, 420 nm, 300 to 400 nm, 280 to 800 nm |
| Distance Lamp to Sample | 350 to 380 mm |
| Illumination Control | Continuous programmable |
| Rainfall Time | 1 to 9999 minutes (adjustable) |
| Rainfall Cycle | 1 to 9999 minutes (adjustable interval) |
| Heating Power | Approx. 4 kW |
| Humidifying Power | Approx. 2 kW |
| Refrigeration Mode | Mechanical refrigeration, air-cooled |
| Refrigerant | R404a (environment-friendly) |
| Controller | 7-inch full-touch programmable controller |
| Temperature Setting Accuracy | 0.1 ℃ |
| Humidity Setting Accuracy | 2 % RH |
| Temperature Display Accuracy | 0.1 ℃ |
| Humidity Display Accuracy | 1 % RH |
| Temperature Sensor | PT100 platinum resistance |
| Chamber Interior Material | SUS304 stainless steel |
| Insulation Material | Polyurethane foam + superfine glass fiber |
| Observation Window | Anti-radiation insulating glass |
| Observation Window Size | 250 × 300 mm |
| Operating Ambient Temperature | 5 ℃ to 32 ℃ |
| Operating Ambient Humidity | ≤ 85 % RH |
| Power Consumption | Approx. 4 to 6 kW |
| Power Supply | 380 V ±10 %, 50 Hz (optional) |
| Inner Chamber Size (W × D × H) | 500 × 600 × 500 mm |
| External Dimensions (W × D × H) | Approx. 1150 × 1150 × 1950 mm |
| Packing Dimension | 1300 × 1300 × 2100 mm |
| Gross Weight | 450kg |
