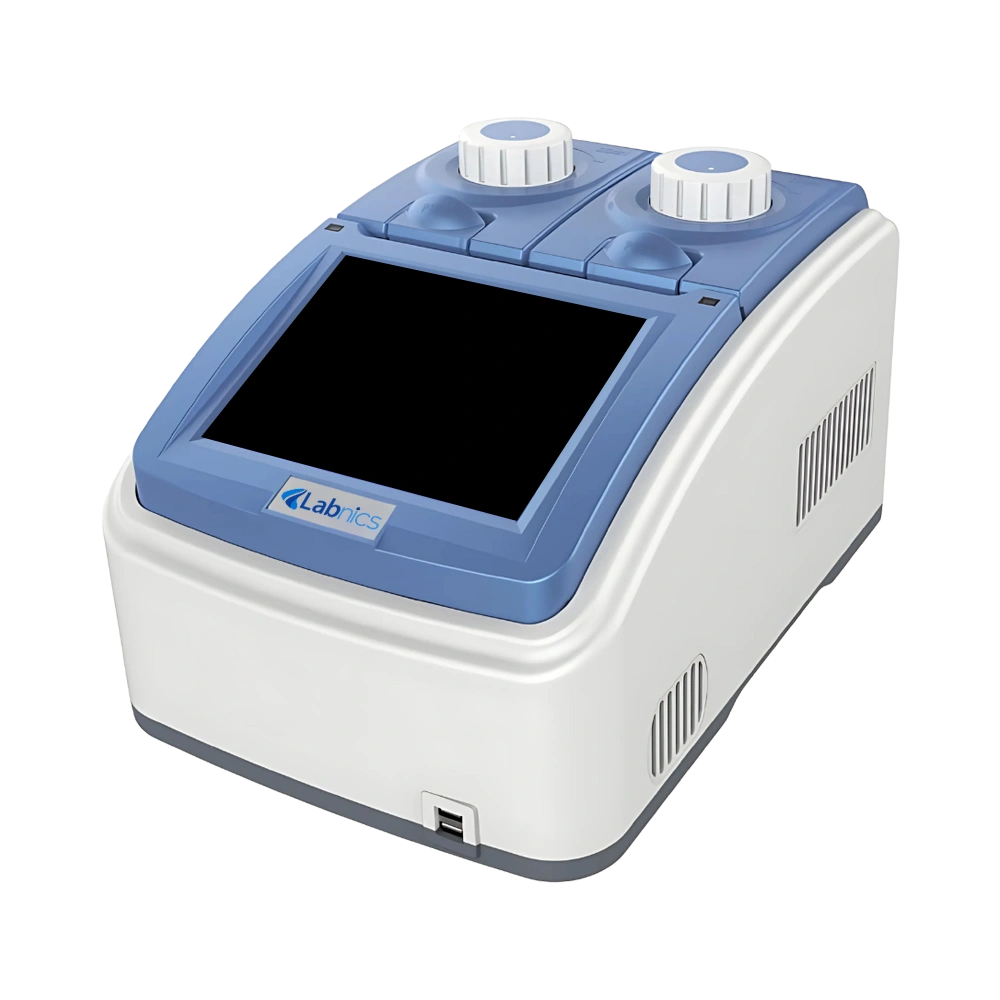

Dual Block Thermal Cycler NDBTC-100 accommodates two 48×0.2 ml tubes for flexible sample processing. It provides adjustable ramping rates between 0.1 and 5°C per second for precise temperature control. This unit features a stepless adjustable hot lid with pressure protection to prevent evaporation. It uses eight long-life Peltier heating units for consistent performance. Our thermal cycler supports USB drives for easy data transfer and updates.
| Capacity | Double 48×0.2ml |
| Tube | 0.1/0.2/0.5ml tube, 8 strips, 96 well plate |
| Reaction capacity | 10 to 80μl, 10 to 120μl |
| Temperature range | 0 to 105°C |
| Maximum ramp rate | 5°C/s |
| Temperature uniformity | ≤±0.2°C |
| Temperature accuracy | ≤±0.1°C |
| Temperature display resolution | 0.1°C |
| Temperature control method | Block/tube |
| Ramping rate adjustable | 0.1 to 5°C/s |
| Hold at 4°C | Forever |
| Gradient type | Normal |
| Gradient speed | 1 to 30°C |
| Gradient temperature range | 30 to 105°C |
| Hot lid temperature range | 30 to 115°C |
| Maximum no. of steps | 30 |
| Maximum no. of cycles | 200 |
| Maximum no. of programs | 10000 + (USB Flash) |
| Time increment/decrement | 1s to 600s |
| Temperature increase/decrease | 0.1 to 10°C |
| Pause function | Yes |
| Auto data protection | Yes |
| Touchdown function | Yes |
| Long PCR function | Yes |
| Language | English |
| Mobile phone app | Yes |
| LCD | 8-inch, 800×600 pixels |
| Communication | USB 2.0, WIFI |
| Power consumption | 600W |
| Power supply | 100 to 240VAC, 50/60Hz |
| Product dimension | 390×270×255mm |
| Weight | 9 kg |
Dual Block Thermal Cycler NDBTC-100 is used to precisely amplify DNA sequences through controlled thermal cycling, enabling accurate genetic analysis and research. It is commonly applied in laboratories for tasks such as gene cloning, mutation detection, and diagnostic testing.
