Product Data Sheet · Laboratory Equipment

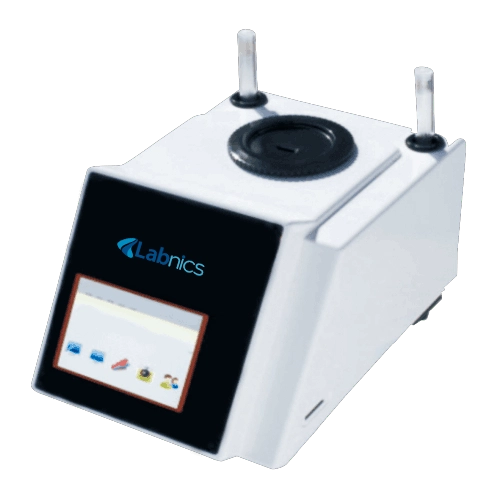

Automatic melting point meter NMPM-101 is an ergonomic analytical instrument that causes determination of melting point of chemical samples. It is featured with large TFT touch screen for visual and operational accessibility. The real time detection function enhances the sensitivity and accuracy of the system.
| Temperature range | RT - 400 ℃ |
|---|---|
| Detection method | Fully automatic |
| Result storage | 400 groups |
| Operator account | 8 |
| Temperature gradients | 0.1 °C ~ 20.0 ℃ / min |
| Temperature accuracy | ± 0.3 ℃（ ± 0.5 ℃ ( > 250 ℃ ) |
| Repeatability | ± 0.1 ℃（ At 0.1 ℃ / min ） |
| Exploration model | Yes |
| Curve storage | 10 groups |
| Display | TFT touch screen |
| Interface | USB, RS232, SD card |
| Standard capillary size | Inner diameter- 1.0 mm Outer diameter- 1.4 mm |
| Power | 110 V-220 V 50 Hz / 60 Hz 120 W |
| Dimensions | 400 × 280 × 300 mm |
| Gross weight | 5 kgs |
