Product Data Sheet · Laboratory Equipment

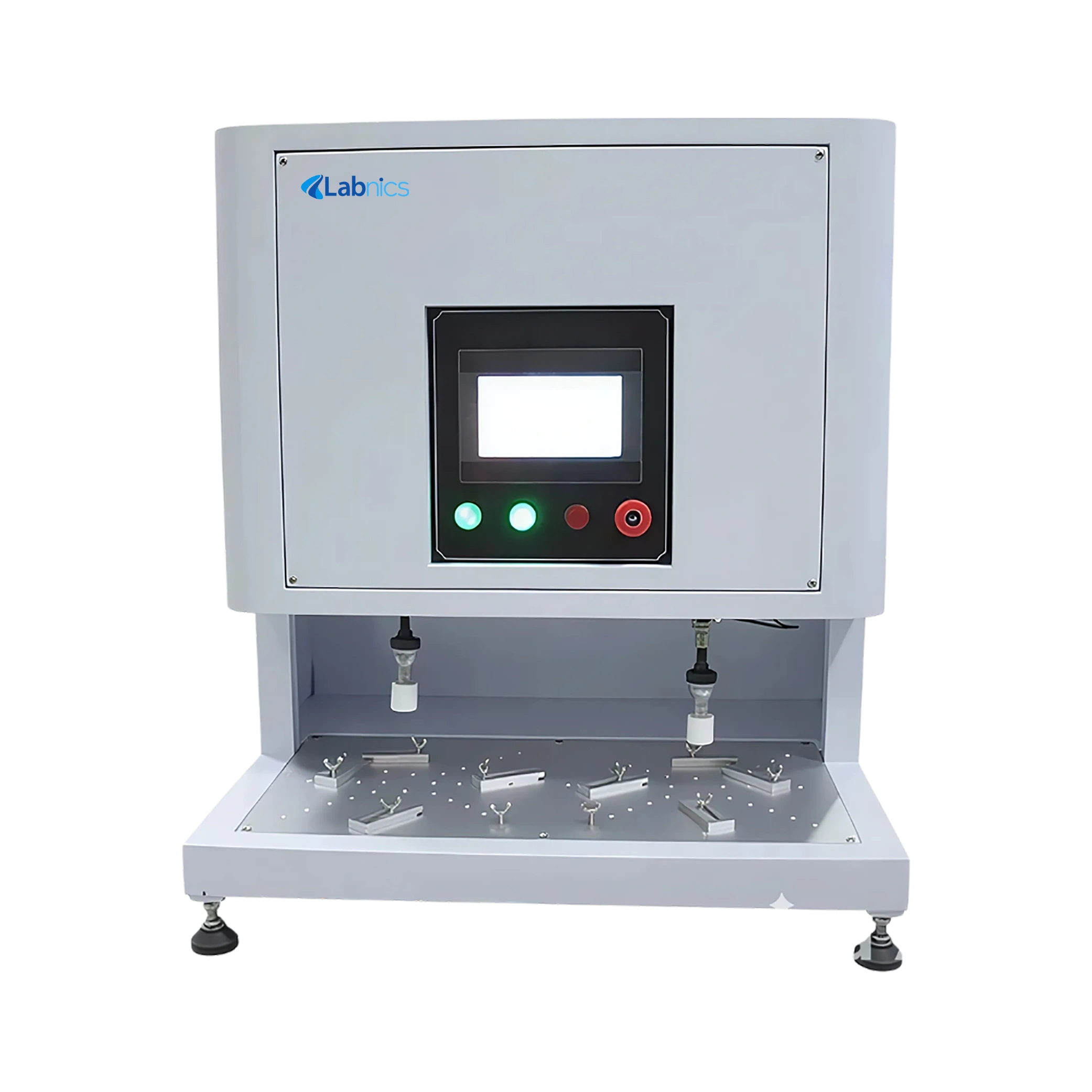

Foot Switch Fatigue Tester NFSFT-100 offers a force range up to 1500 N with 0.1 N resolution and ±1% accuracy. It features dual testing stations driven by a precision servo motor. Our touchscreen PLC control allows programmable test cycles, speed, and dwell time. This mechanical clamping system ensures secure and stable sample positioning. It has durable frame makes it ideal for long-term durability testing of foot-activated components.
| Force Resolution | 0.1 N |
|---|---|
| Force Accuracy | ±1% |
| Test Environment | Atmospheric pressure: 80–106 kPa Temperature: 5–40 °C Humidity: 20–90% RH No vibration, dust, EM interference, explosive/corrosive gases |
| Stations | Two stations |
| Control Method | PLC intelligent integrated control with colour touchscreen HMI |
| Drive Mode | Servo motor + precision reducer |
| Specimen Clamping | Mechanical clamping |
| Test Frequency | 0 to 999,999 times (presettable) |
| Ascent Dwell Time | 0 to 999.9 s (presettable) |
| Descent Dwell Time | 0 to 999.9 s (presettable) |
| Test Travel Distance | 0 to 100 mm (presettable) |
| Test Speed | 0 to 300 mm/min (presettable) |
| Applied Force Range | 0 to 500 N |
| Power Consumption | 1.5 kW |
| Power Supply | AC 220V ±10%, 50 to 60Hz |
| Dimensions (W × D × H) | 800 × 600 × 1000 mm |
| Weight | 100 kg |
