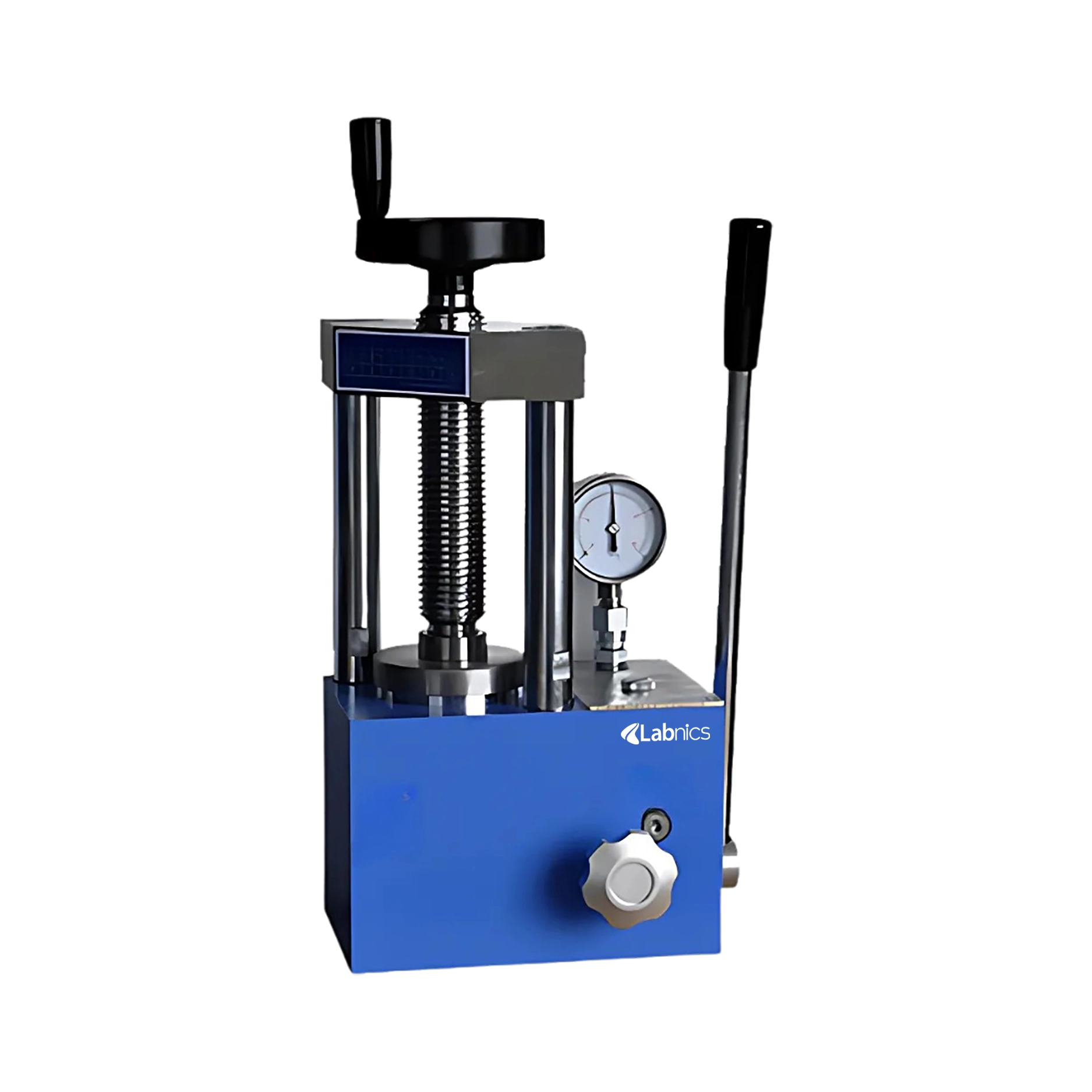

Hydraulic Pellet Press NHPP-101 is a compact manual press with a pressure range of 0–3T (0–28.8 MPa). It offers pressure stability of ≤1 MPa over 10 minutes for consistent results. This model features manual control system which ensure precise pressure application for pellet formation. Its compact design fits easily inside glove boxes or tight lab spaces. Our model is built with precision to prepare samples for infrared spectroscopy and various other analytical techniques.
| Pressure Range | 0 to 3T (0 to 28.8 MPa) |
| Piston Diameter | 35 mm |
| Max. Piston Stroke | 30 mm |
| Pressure Gauge | Pressure and Force double scale display |
| Pressure Stability | ≤ 1 MPa / 10 min |
| Workbench Diameter (D) | 80 mm |
| Number of Columns | Two |
| Working Space (M×N) | 96 × 130 mm |
| Dimensions (L×W×H) | 225 × 155 × 380 mm |
| Weight | 28 kg |
Hydraulic Pellet Press NHPP-101 is designed to compress powdered samples into solid pellets for testing and analysis. It is widely used in laboratories across material science, chemistry, pharmaceuticals, and infrared spectroscopy applications.
