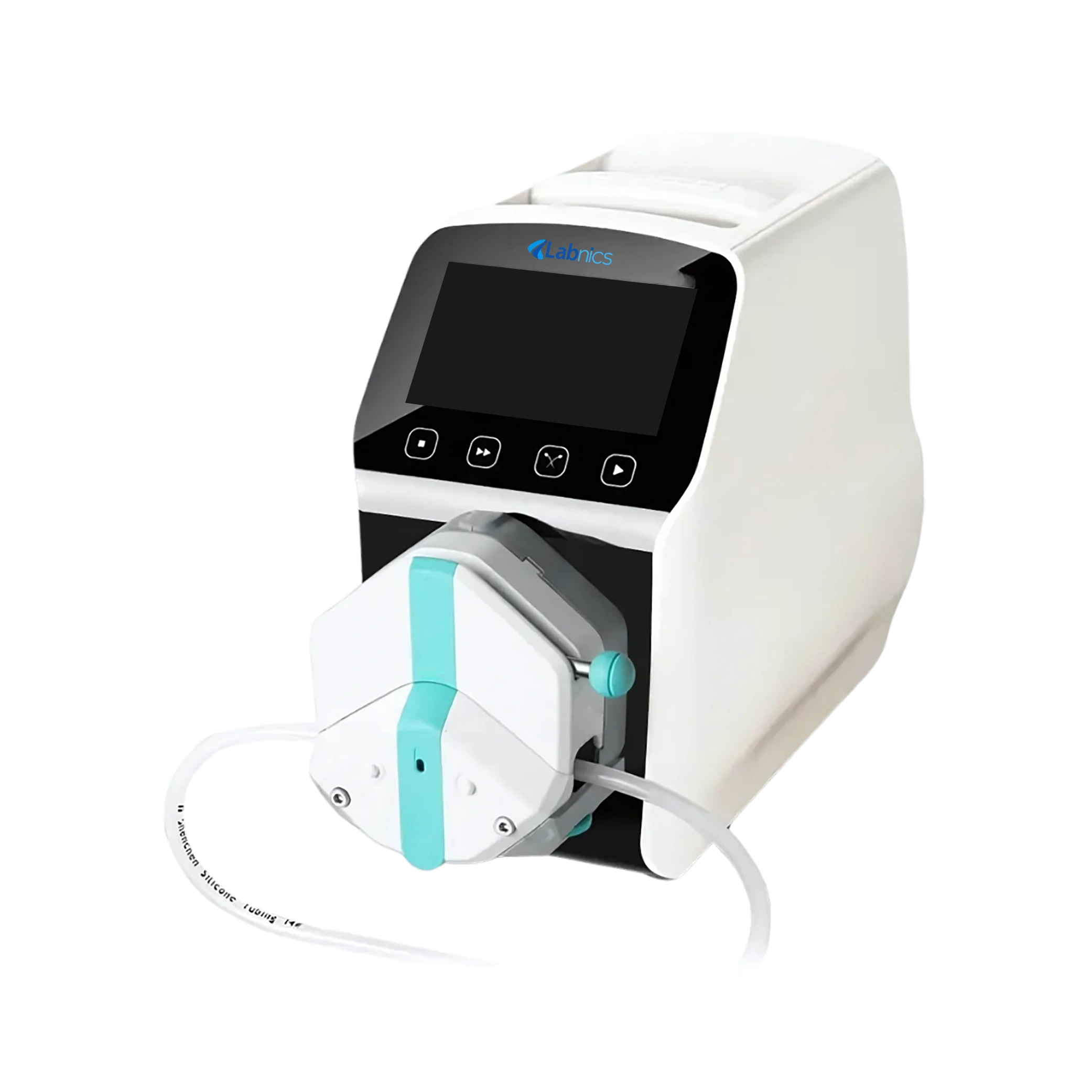

Intelligent Flow Peristaltic Pump NIFPP-305 provides a dispensing time range from 0.1 to 9999 seconds with a time resolution of 0.01 seconds. It includes a built-in touch pen for convenient and precise touchscreen operation. This pump has a compact design for easy installation and space-saving use. It offers online micro-adjustment to fine-tune flow without stopping the pump. Our unit includes an advanced calibration function for precise and reliable flow control.
| Flow Range | 0.0053 to 3100 mL/min |
|---|---|
| Flow Resolution | 0.01 mL/min |
| Speed Range | 0.1 to 600 RPM |
| Speed Resolution | 0.01 RPM |
| Dispensing Volume | 0.1 to 9999 mL |
| Volume Resolution | 0.01 mL |
| Dispensing Time | 0.1 to 9999s |
| Pause Time | 0.1 to 9999s |
| Time Resolution | 0.01s |
| Repeat Number | 1 to 9999 times |
| Motor type | stepper motor |
| Display | 4.3-inch industrial grade |
| Temperature Range | 0 to 40°C |
| Relative Humidity | <80% |
| Working Mode | Flow rate and dispensing mode |
| Control Method | Touch screen and Mechanical keypad |
| Keypad Lifespan | 300,000 times |
| Flow Rate Accuracy | |
| Back Suction Angle | 0 to 360° |
| External Control | 0 to 5 V, 0 to 10 V, 4 to 20 mA (option) |
| Output Interface | Output motor working status (open-collector output) |
| Communication Interface | RS232/RS485 support MODBUS protocol (RTU mode) |
| Start/Stop, Direction Signal | Passive switch input (e.g., foot pedal) |
| Active Switch Signal | Default 5V to 24V active input |
| Power Consumption | <80 W |
| Power Supply | AC 220V±10%, 50Hz/60Hz |
| Dimension | 259 × 157 × 237 mm |
| Weight | 4.40 kg |
Silicone tubing (2 meters)
Operation manual × 1 pc
Power cable × 1 pc
