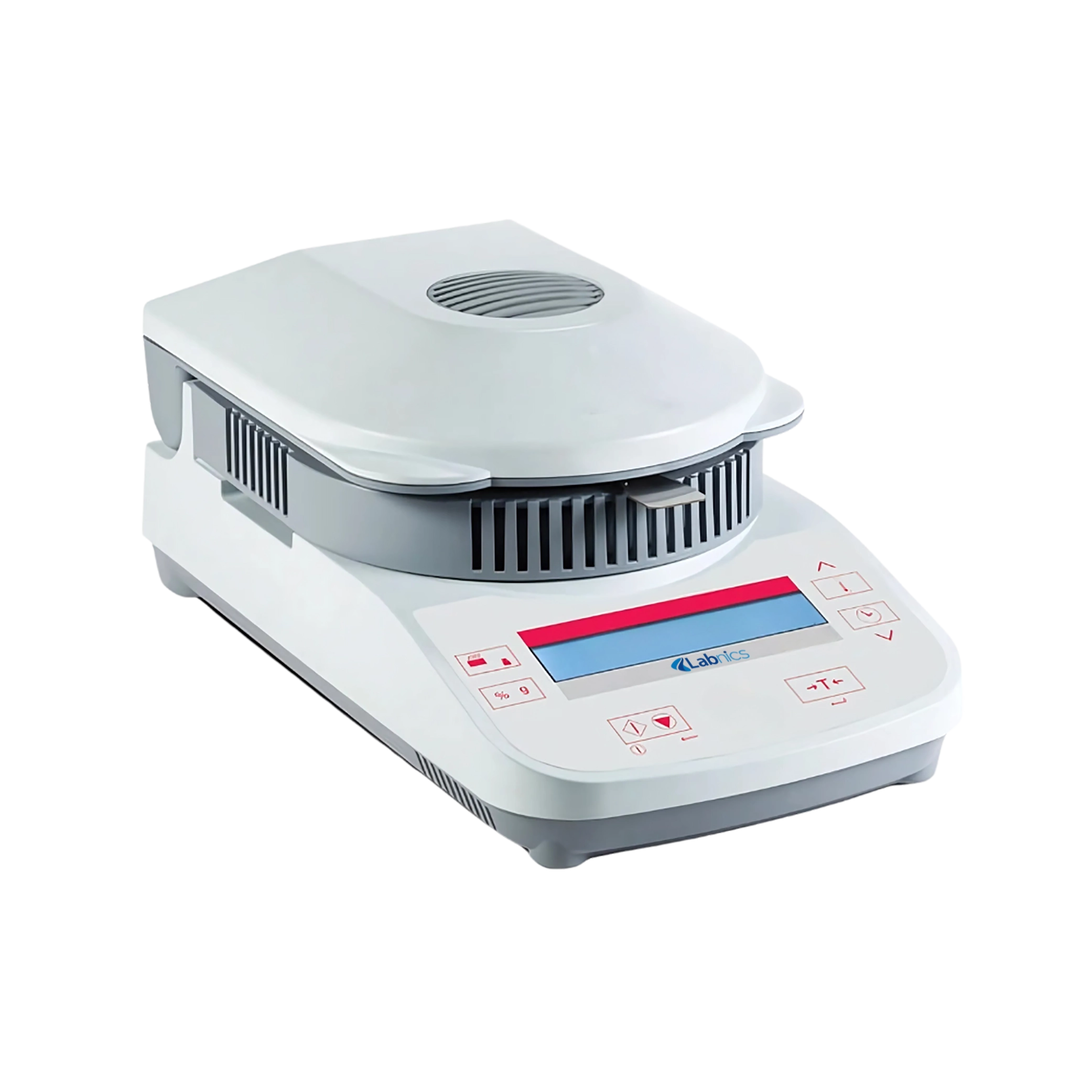

Infrared Moisture Analyzer NIMA-102 offers a capacity of 110g to determine the moisture content in different samples. It is constructed with high-grade material for thermal stability and chemical resistance. It has infrared-based technology for drying the sample. This analyzer has an interface with customizable settings for user control. Our Infrared Moisture Analyzer is integrated with an analytical-grade balance along with standard weighing trays.
| Capacity | 110g |
| Repeatability | 0.3% (3g sample) |
| Readability | 0.1%/0.01g |
| Sample Size | 3g to 20g typical, 0.5g min |
| Interface | Bidirectional RS-232 |
| Timer | 1-99 minutes, 30-second increments to 60 minutes |
| Heating Technology | Infrared (No Glass) |
| Temperature Range | 50°C to 160°C in 5°C increments |
| Power | 100 to 240 VAC,50/60 Hz |
| Tare Range | To capacity by subtraction |
| Operating Temp. Range | 5°C to 40 °C |
| Display Type | Custom backlit LCD |
| Displays | % moisture or % solids or weight (g), temperature, time |
| Pan Size | 90mm (Diameter) |
| Dimensions (W × H × D) | 170×140×280mm |
| Net Weight | 2.1KG |
| Shipping Weight | 3.9 KG |
Infrared Moisture Analyzer NIMA-102 is used to minimize the sample spoilage and for dry storage. It is used in chemical industries, food industries, and pulp industries.
