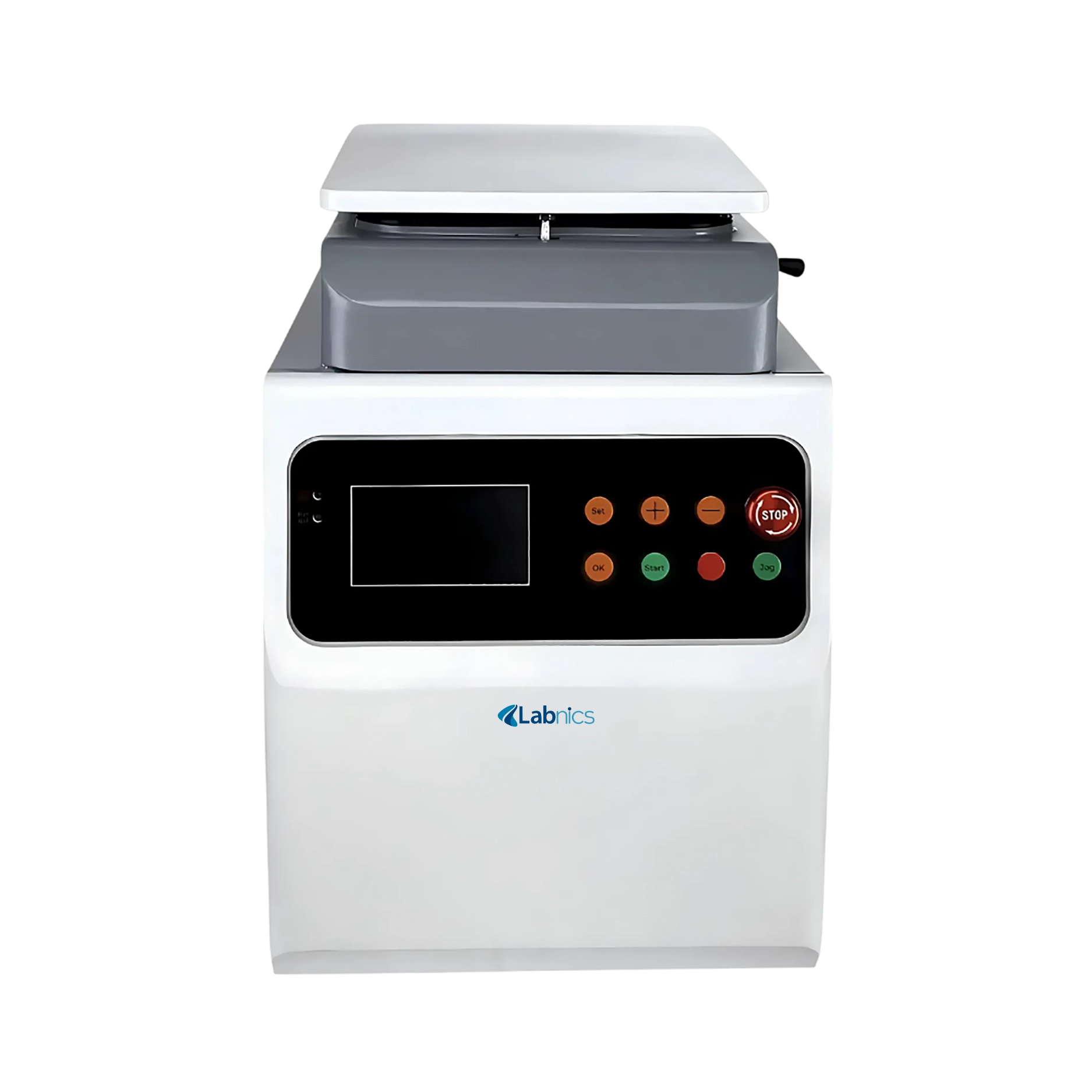

High Throughput Tissue Grinder NHTG-203 comes with a vibration frequency range of 10 to 70 Hz/min and accommodates grinding balls ranging from 0.1 to 30 mm. It uses a vertical oscillating motion for uniform grinding of samples. Our tissue grinder incorporates a shockproof design to maintain stability during operation. It has a sturdy construction that ensures long-term reliable performance. This unit includes safety lock protection to ensure secure operation during use.
| Sample handling capacity | 96 × (0.2 to 0.5 ml) 96 × 2 ml 48 × 2 ml 24 × 2 ml 16 × 5 ml 12 × 5 ml 8 × (7 to 15 ml) 4 × 25 ml 2 × 50 ml |
| Vibration frequency range | 10 to 70 Hz/min |
| Grinding method | Dry, wet, cryogenic grinding |
| Final Particle Size | Approximately 5 µm |
| Noise level | |
| Timer range | 0 seconds to 99 minutes |
| Acceleration Time | Within 2 seconds |
| Deceleration Time | Within 2 seconds |
| Grinding tool material | Alloy steel, PTFE |
| Grinding ball material | Alloy steel, Chromium, Zirconium oxide, Tungsten carbide, Silica |
| Grinding ball size | 0.1 to 30 mm |
| Power supply | 220 V / 50 Hz, 2 phases |
| Dimension | 280 × 400 × 530 mm |
| Weight | 40 kg |
High Throughput Tissue Grinder NHTG-203 is designed for processing plant and animal tissues, microbes, pharmaceuticals, and polymers, supporting DNA, RNA, protein extraction, and sample homogenization.
