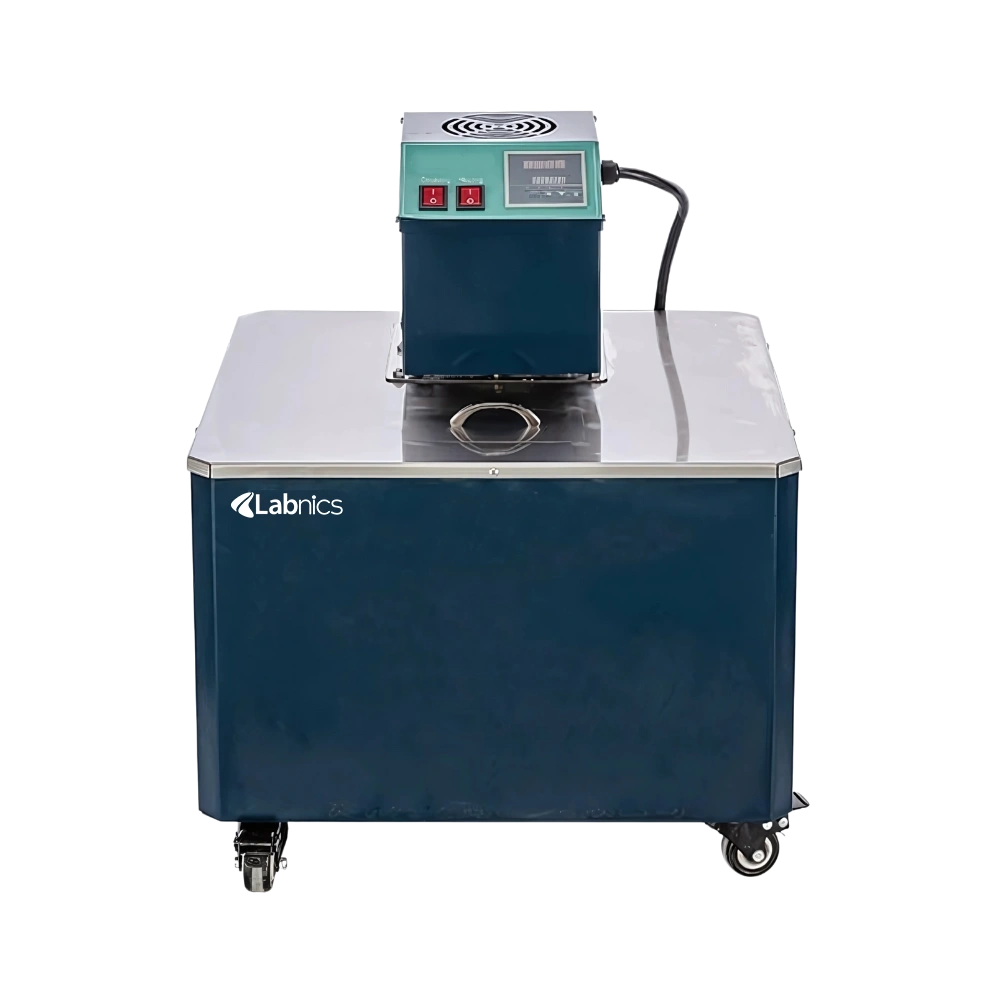

Heating Circulator NHTC-201 has a tank capacity of about 47 liters, allowing ample thermal fluid for consistent heat transfer. It operates within a temperature range from room temperature up to 250°C, offering flexibility. This unit delivers a rated flow of 8 liters per minute, ensuring effective circulation. It supports external circulation to efficiently transfer heat to connected systems. Our circulator includes an automatic heating cut-off mechanism to enhance operational safety.
| Tank capacity | About 47L |
| Tank oil capacity | More than 30L |
| Temperature range | RT to 250°C |
| Temperature accuracy | ±1°C |
| Rated flow | 8L/min |
| Lifting height | 4M |
| Joint port and tube | Screw joint, 2m metal pipe |
| Heating power | 5000W |
| Pump motor power | 180W |
| Power consumption | 5180W |
| Power supply | 220V, 50Hz |
| Tank dimension | 425×410×270mm |
| Product dimension | 510×540×600mm |
| Packaging dimension | 640×560×575mm |
| Net weight | 35kg |
| Packaging weight | 40kg |
Heating Circulator NHTC-201 is used for precise high-temperature control in processes requiring stable and uniform heating. It is commonly applied in chemical synthesis, jacketed reactor heating, high-temperature distillation, and semiconductor manufacturing.
