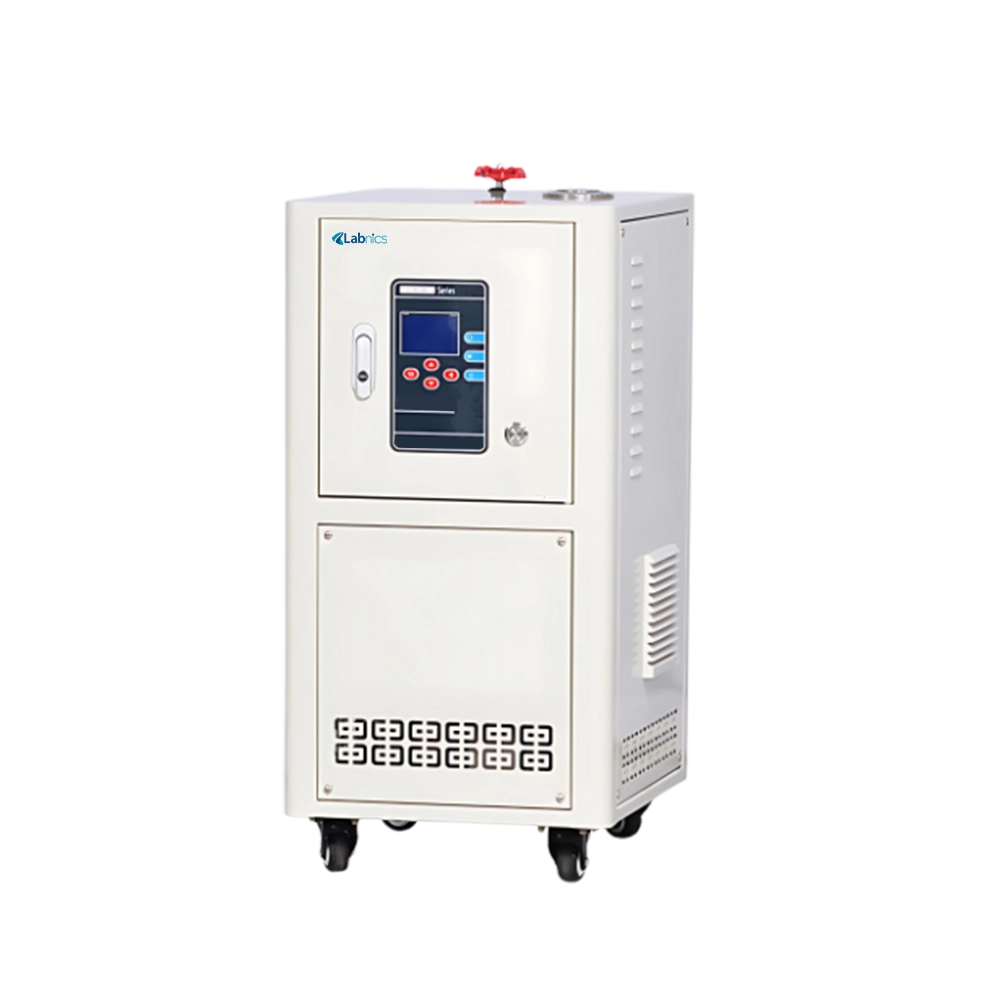

Heating Circulator NHTC-104 Catalog

FEATURES

• ⇋ Exhaust valve for gas buildup safety
• ⇋ Vortex pump for efficient circulation
• ⇋ Visual fluid level indicator
• ⇋ Easy mobility with caster wheels
• ⇋ CE certified for safety standards
• ⇋ PID temperature control system
• ⇋ Drain port for waste discharge

SPECIFICATIONS

Capacity	3.8L
Temperature range	RT to 300°C
Temperature accuracy	±0.5°C
Ambient temperature	5 to 30°C
Ambient humidity	45 to 80%RH
Circulating pump type	Vortex pump
Circulating pump pressure	2bar
Cycle interface	DN-20 PN-10 flange interface
Cooling water interface	DN15
Rated flow	15L/min
Heating method	Electric heating
Cooling method	Water cooling
Temperature sensor	PT100
Water cooler	Plate heat exchanger
PLC control system	Siemens S7-200smart
PLC protocol	Modbus RTU protocol RS485 interface (optional RS232 Ethernet)
PLC operation panel	7-inch Siemens color touch screen (optional 10-inch)
PLC programming	5 programs can be edited, each with up to 40 steps
PLC control mode	Material temperature and equipment outlet temperature can be switched automatically
PLC data output	Support U disk data output, can be outputted temperature data in TXT format
Display	LCD
Safety protection	Self-diagnosis High-pressure switch Overload relay Over-temperature alarm
Heating power	3kW
Cooling capacity (300°C)	3kW
Cooling capacity (200°C)	2.5kW
Cooling capacity (100°C)	1.3kW
Cooling capacity (65°C)	0.6kW
Power consumption	4.2kW
Power supply	220V, 50/60Hz, 1P
Weight	85kg

APPLICATIONS

Heating Circulator NHTC-104 is used to maintain a consistent temperature by circulating heated liquid through a system. It is widely used across a range of industries, including chemical research, materials testing, biology, medicine, pharmaceuticals, food processing, environmental testing, and industrial applications.

STANDARD ACCESSORIES

Stainless steel hose with thermal insulation (3.6 meters/piece),1pc

---

Main engine, 1 set

---

Matching valves, 2 sets

---

Raw tape, 1 roll

---

Operation manual, 1pc
