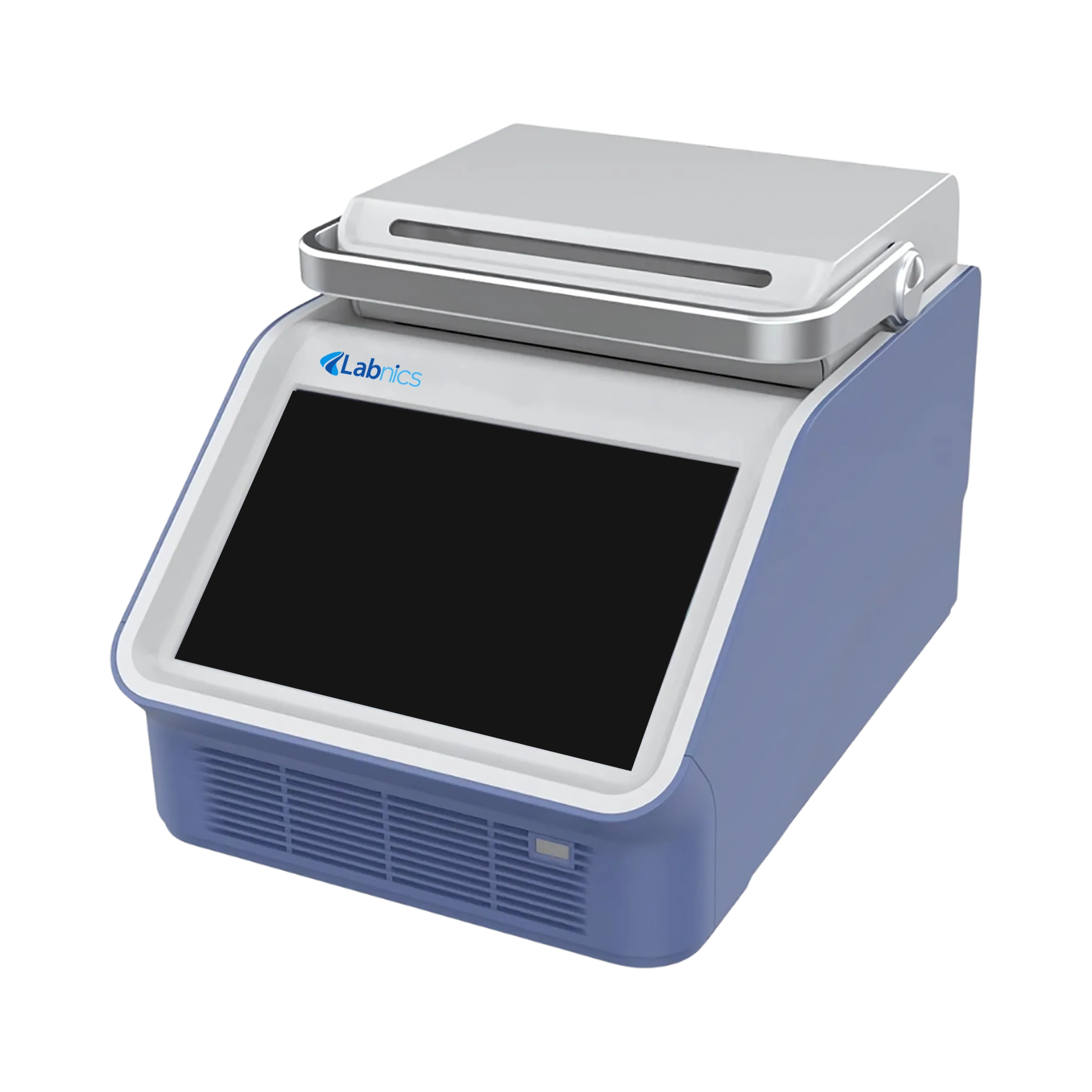

Gradient Thermal Cycler NGTC-204 offers a capacity of 96×0.2ml tubes for efficient sample processing. It operates across a temperature range of 0 to 105°C for precise thermal control. This unit supports both block and tube temperature control methods to suit diverse protocols. It features a 10.1-inch high-resolution LCD for smooth and clear operation. Our thermal cycler includes a self-adapting pressure hot lid for secure and uniform sealing.
| Capacity | 96×0.2ml |
| Tube | 0.2ml tube, 8 strips Half skirt 96 wells plate No skirt 96 wells plate |
| Reaction capacity | 5 to 80µl |
| Temperature range | 0 to 105°C |
| Maximum ramp rate | 5°C/s |
| Temperature uniformity | ≤±0.2°C |
| Temperature accuracy | ≤±0.1°C |
| Temperature display resolution | 0.1°C |
| Temperature control method | Block/tube |
| Ramping rate adjustable | 0.1 to 5°C/s |
| Hold at 4°C | Forever |
| Gradient type | Normal |
| Gradient speed | 1 to 42°C |
| Gradient temperature range | 30 to 105°C |
| Hot lid temperature range | 30 to 115°C |
| Maximum no. of steps | 30 |
| Maximum no. of cycles | 200 |
| Maximum no. of programs | 20000 + (USB Flash) |
| Time increment/decrement | 1s to 600s |
| Temperature increase/decrease | 0.1 to 10°C |
| Pause function | Yes |
| Auto data protection | Yes |
| Touchdown function | Yes |
| Long PCR function | Yes |
| Language | English |
| Mobile phone app | Yes |
| LCD | 10.1 inch, 1280×800 pixels |
| Communication | USB 2.0, WIFI |
| Power consumption | 600W |
| Power supply | 100 to 240VAC, 50/60Hz |
| Product dimension | 385×270×255mm |
| Weight | 10 kg |
Gradient Thermal Cycler NGTC-204 is used to amplify DNA segments through precise thermal cycling for applications such as gene cloning, sequencing, and diagnostics. It is commonly used in research laboratories, clinical diagnostics, forensic analysis, and biotechnology industries.
