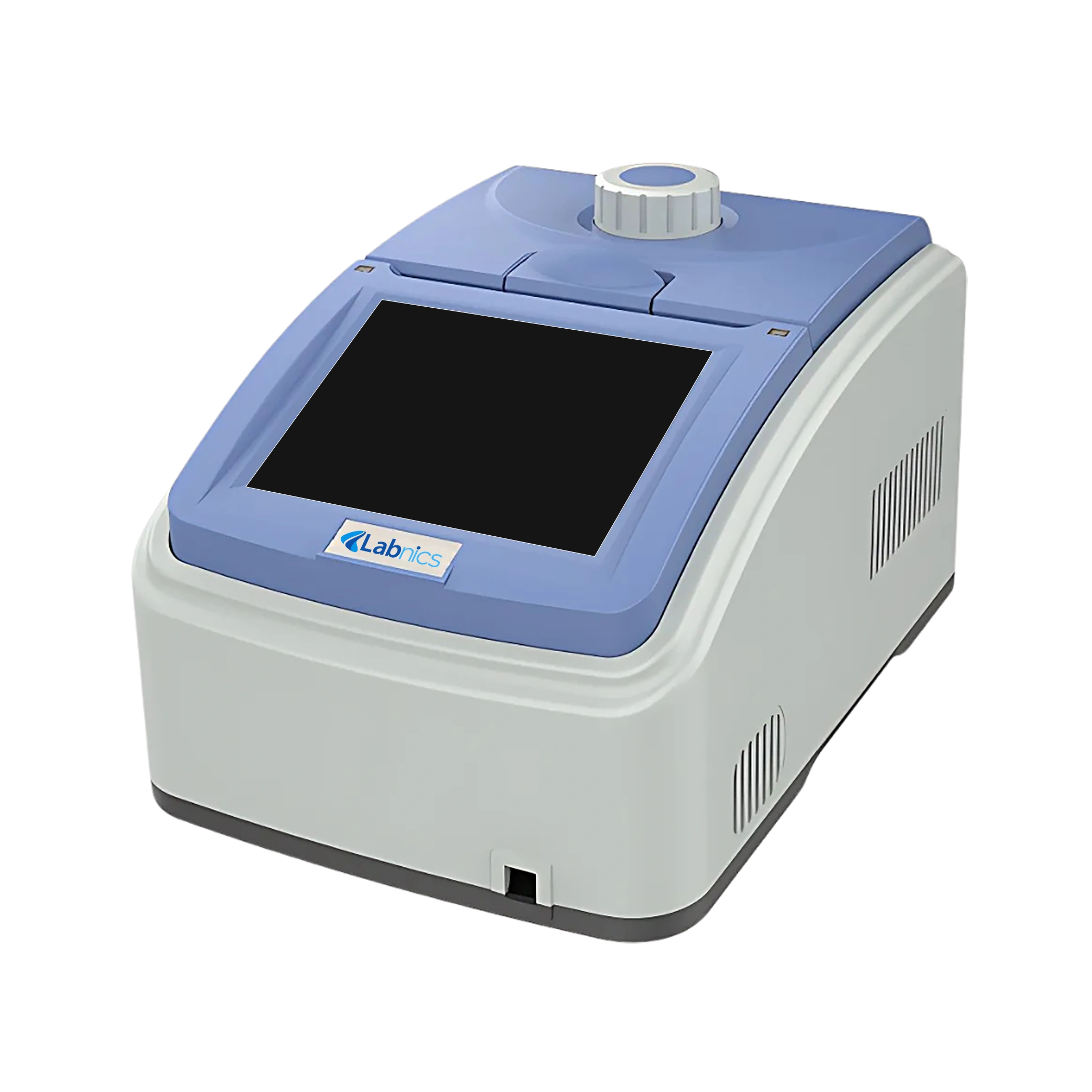

Gradient Thermal Cycler NGTC-200 offers a capacity of 96×0.2 ml and supports multiple tube and plate formats. It maintains a temperature range from 0 to 105 °C for diverse PCR protocols. This unit features a self-adapting pressure hot lid that ensures consistent sealing and prevents sample evaporation. It provides dual control modes for precise temperature regulation. Our cycler includes a lock screen function to prevent accidental interruptions during active runs.
| Capacity | 96×0.2ml |
| Formats | 0.1/0.2ml, 8 strips, 12 stripsHalf skirt 96 wells plateNo skirt 96 wells plate |
| Reaction capacity | 5 to 120µl |
| Temperature range | 0 to 105°C |
| Maximum ramp rate | 5°C/s |
| Temperature uniformity | ≤±0.2°C |
| Temperature accuracy | ≤±0.1°C |
| Temperature display resolution | 0.1°C |
| Temperature control method | Block/Tube |
| Ramping rate adjustable | 0.01 to 5°C/s |
| Hold at 4°C | Forever |
| Gradient temperature uniformity | ≤±0.2°C |
| Gradient temperature accuracy | ≤±0.2°C |
| Gradient temperature range | 30 to 105°C |
| Gradient setting range | 0.1 to 30°C |
| Hot lid temperature range | 30 to 115°C |
| Hot lid height adjustable | Stepless adjustable |
| Maximum no. of steps | 30 (Multiple nested PCR experiments) |
| Maximum no. of cycles | 200 (Up to 100,000 in nested cycles) |
| Maximum no. of programs | 200,000 + (USB Flash) |
| Time increment/decrement | 1s to 600s, Long PCR is available |
| Temperature increase/decrease | 0.1 to 10°C, Touchdown PCR is available |
| Program pause function | Yes |
| Auto data Protection | Yes |
| Glp report | Record the running information of each step of the program to provide accurate data support for the analysis of experimental results |
| File encryption function | Individual program files can be encrypted |
| User management privilege | Three levels of access (administrator, user, guest) |
| Email notification | Email notification after the experiment is over |
| Lock screen function | Prevents accidental termination of the program being experimented on |
| PC-LINK function | Simultaneous online monitoring of more than 250 instruments |
| Mobile phone App | Simultaneous online monitoring of more than 250 instruments |
| Communication | USB 2.0, LAN, WIFI |
| Power consumption | 600W |
| Product dimension | 390×270×255mm |
| Packaging dimension | 550×420×420mm |
| Net weight | 9.5 kg |
| Gross weight | 11.8 kg |
Gradient Thermal Cycler NGTC-200 is used for precise DNA amplification through controlled thermal cycling in PCR experiments. It is commonly applied in molecular biology labs, clinical diagnostics, genetic research, and forensic analysis.
Power line – 1 Pc
Spare fuse – 2 Pcs
Performance test table – 1 Pc
384 well block
