Product Data Sheet · Laboratory Equipment

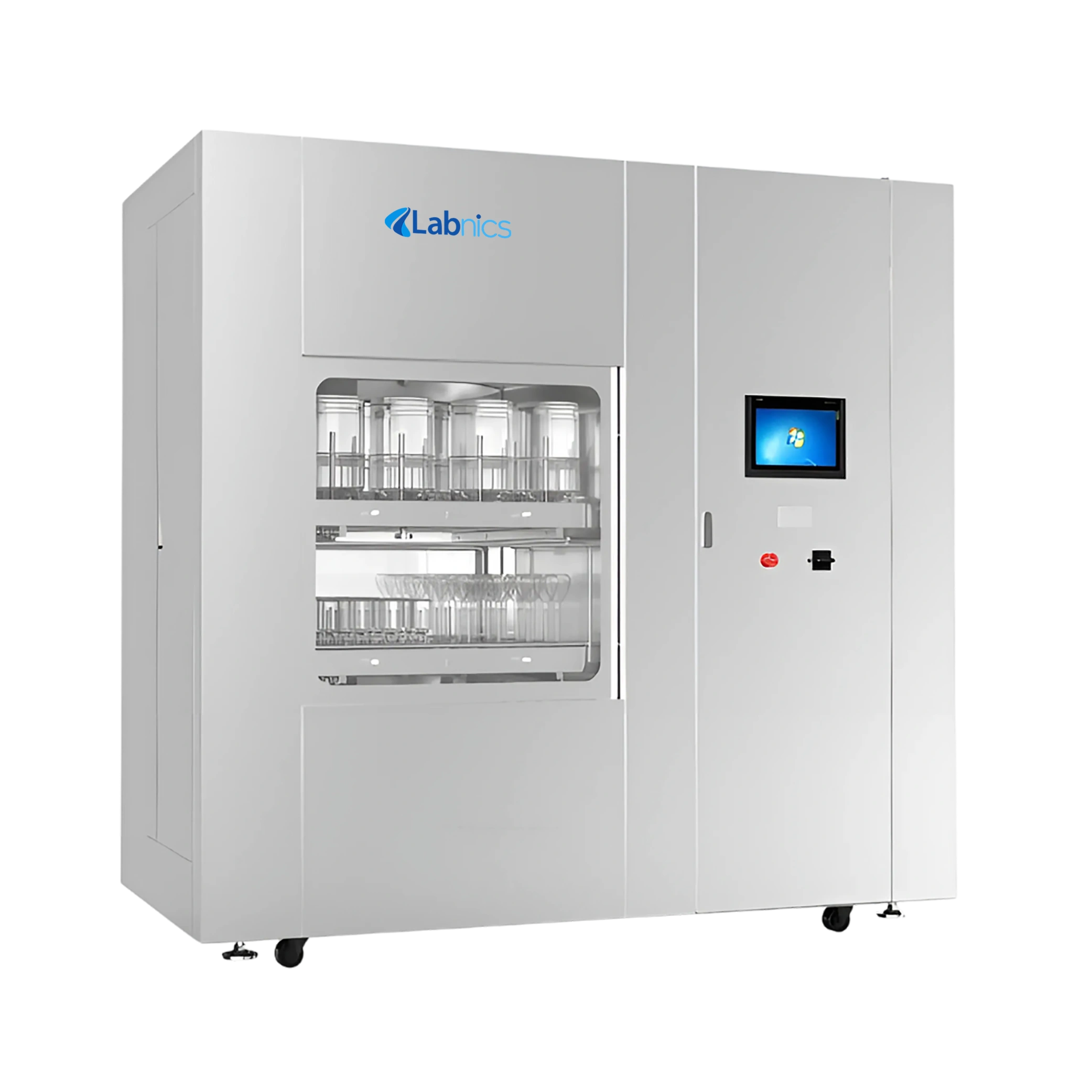

Labnics Automatic Glassware Washer NAGW-106 circulates water through a 400 L stainless steel chamber at 1000 L/min, with tank temperature running from room temperature up to 93℃ at 15 kW water heater power. Drying runs from room temperature up to 120℃ at 3.6 kW once the wash cycle ends. This laboratory glassware washer operates through PLC Siemens control with a 7-inch touchscreen, a three-level password authority system.
| Capacity | 400L |
|---|---|
| Circulating pump flow | 1000L/min |
| Tank internal temperature | RT to 93°C |
| Drying temperature | RT to 120°C |
| Control style | PLC / Siemens or equivalent |
| Door structure | Single door (double doors optional) |
| Door opening mode | Electric door (manual door optional) |
| Display | 7-inch touch screen |
| Water heater power consumption | 15kW |
| Dry power consumption | 3.6kW |
| Power supply | 380V/50Hz |
| Exterior dimension | 1110×900×2165mm |
