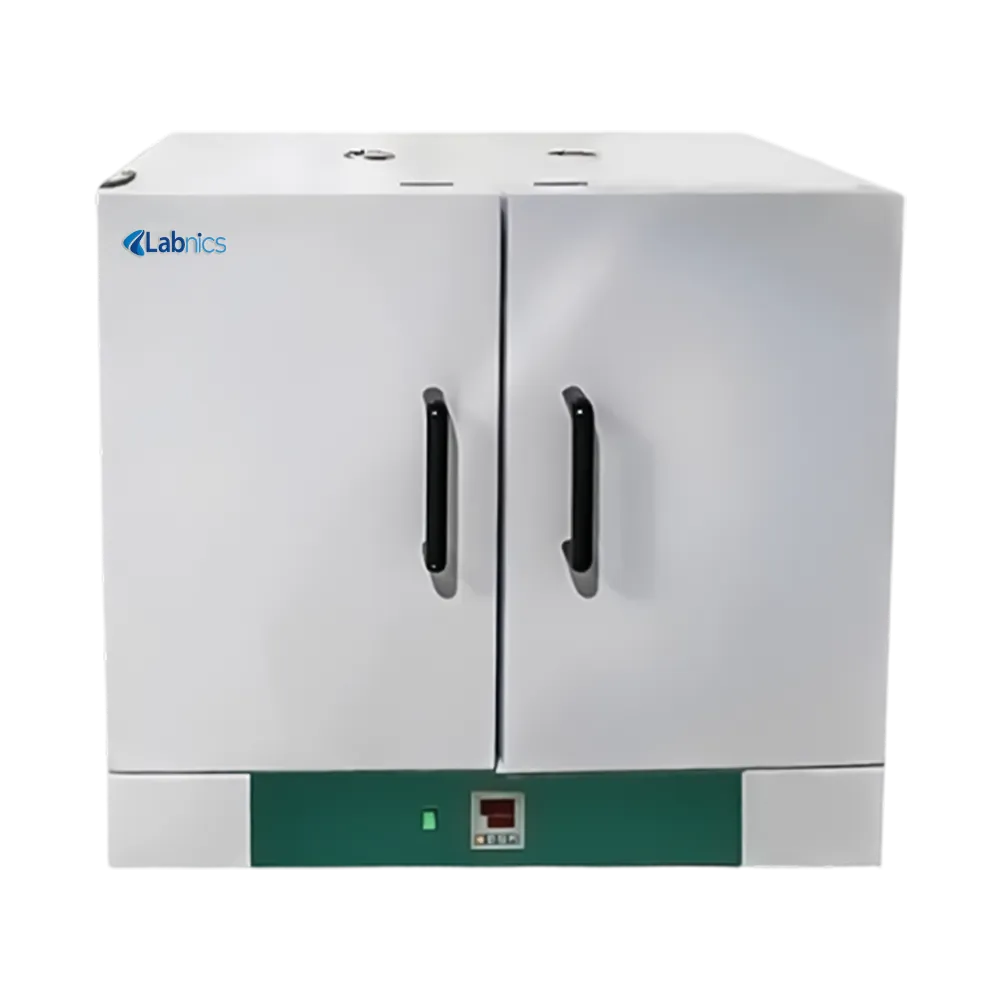

Forced Air Drying Oven NFDO-200 is a high-performance unit with a spacious 420L capacity. It features a PID microprocessor controller for precise temperature control, with a range from RT+10°C to 250°C. This oven has an integrated hot air circulation system for consistent temperature uniformity and even air distribution. It includes a safety feature with over-temperature protection to prevent overheating. Our unit is designed with a silicon door gasket to ensure long-term durability and efficiency.
| Capacity | 420L |
| Shelves | 3pcs |
| Temperature range | RT+10°C to 250°C |
| Temperature stability | ±0.5°C |
| Temperature uniformity | ±2.5% (100°C) |
| Ambient temperature | +5°C to 40°C |
| Display resolution | 0.1°C |
| Timing range | 0 to 9999mins |
| Control system | Microprocessor PID |
| Internal material | 304 stainless steel |
| Display | LCD |
| Power consumption | 3100W |
| Power supply | 380V, 50Hz |
| Internal dimension | 640×585×1355mm |
| External dimension | 780×730×1780mm |
| Packaging dimension | 900×870×1980mm |
| Gross weight | 215kg |
Forced Air Drying Oven NFDO-200 is used for drying, curing, and moisture removal, ensuring consistent temperature control and uniform results. It is widely used in laboratories, pharmaceuticals, food processing, electronics, and chemical industries.
Intelligent programmable temperature controller Independent temperature-limiting alarm Φ25mm testing hole Wireless alarm system RS485 connector USB recorder Printer
