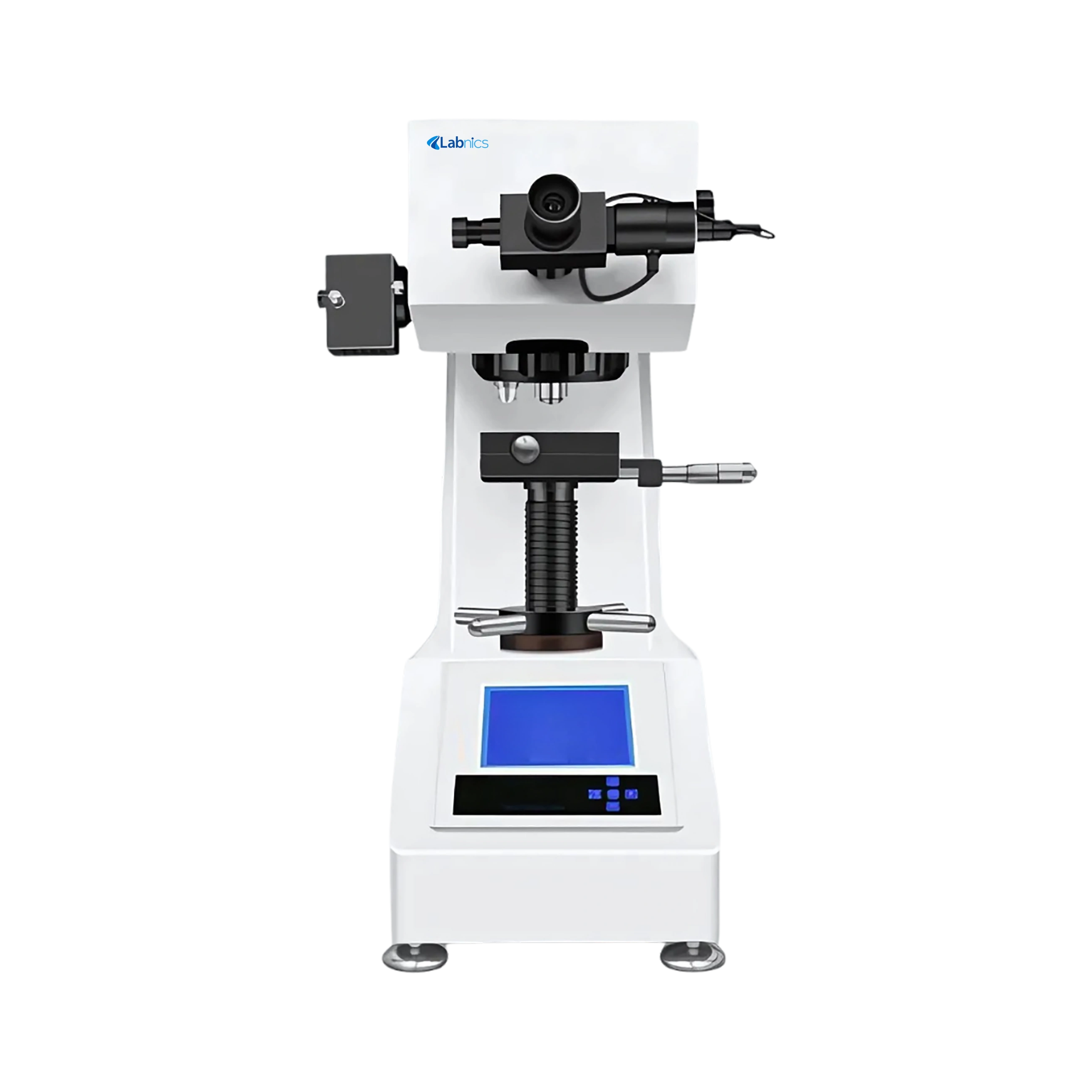

Digital Vickers Hardness Tester NDVHT-100 offers test forces from 0.3 kgf to 10 kgf with precision hardness measurements. It features automatic loading and unloading for efficient hardness testing operations. It has dual magnification providing versatile observation for different sample requirements. This has high-resolution readings up to 0.0625 μm delivering precise measurement results. Our smooth shifting between the objective and indenter enhances convenience in industrial environments.
| Test Forces | 2.94 N (0.3 kgf), 4.90 N (0.5 kgf), 9.80 N (1 kgf), 19.6 N (2 kgf), 24.5 N (2.5 kgf), 29.4 N (3 kgf), 49 N (5 kgf), 98 N (10 kgf) |
| Test Range | 1 HV to 2967 HV |
| Loading Method | Automatic (Loading / Dwell / Unloading) |
| Shifting (Objective / Indenter) | Manual / Automatic |
| Total Magnification | 100×, 400× |
| Resolution | 0.25 μm / 0.0625 μm |
| Dwell Time | 0 to 60 s |
| Light Source | Halogen Lamp |
| X-Y Test Table | Size: 100 × 100 mm; Travel: 25 × 25 mm; Resolution: 0.01 mm |
| Maximum Height of Specimen | 175 mm |
| Throat Depth | 135 mm |
| Standards Executed | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Power Supply | AC 220 V, 50 Hz |
| Dimensions (L × W × H) | 590 × 320 × 640 mm |
| Packing Dimensions (L × W × H) | 680 × 470 × 750 mm |
| Gross Weight | 91 kg |
Digital Vickers Hardness Tester NDVHT-100 used to determine the hardness of metals and alloys with high accuracy and repeatability. It is widely applied in research laboratories, metallurgical industries, production quality control, and educational institutions for detailed hardness analysis.
10×, 20× Objective-1 Pc
Diamond Vickers Indenter-1 Pc
Fuse 1A- 2 Pcs
10× Reading Microscope-1 Pc
Power Cable-1 Pc
Hardness Blocks- 2 Pcs
Screw Driver- 1 pc
Level-1 Pc
Horizontal Regulating Screw-4 Pc
Anti-dust Cover-1 Pc
Cross Test Table-1 Pc
Halogen Lamp-1 Pc
Inner Hexagon Spanner 2.5mm-1 Pc
