Product Data Sheet · Laboratory Equipment

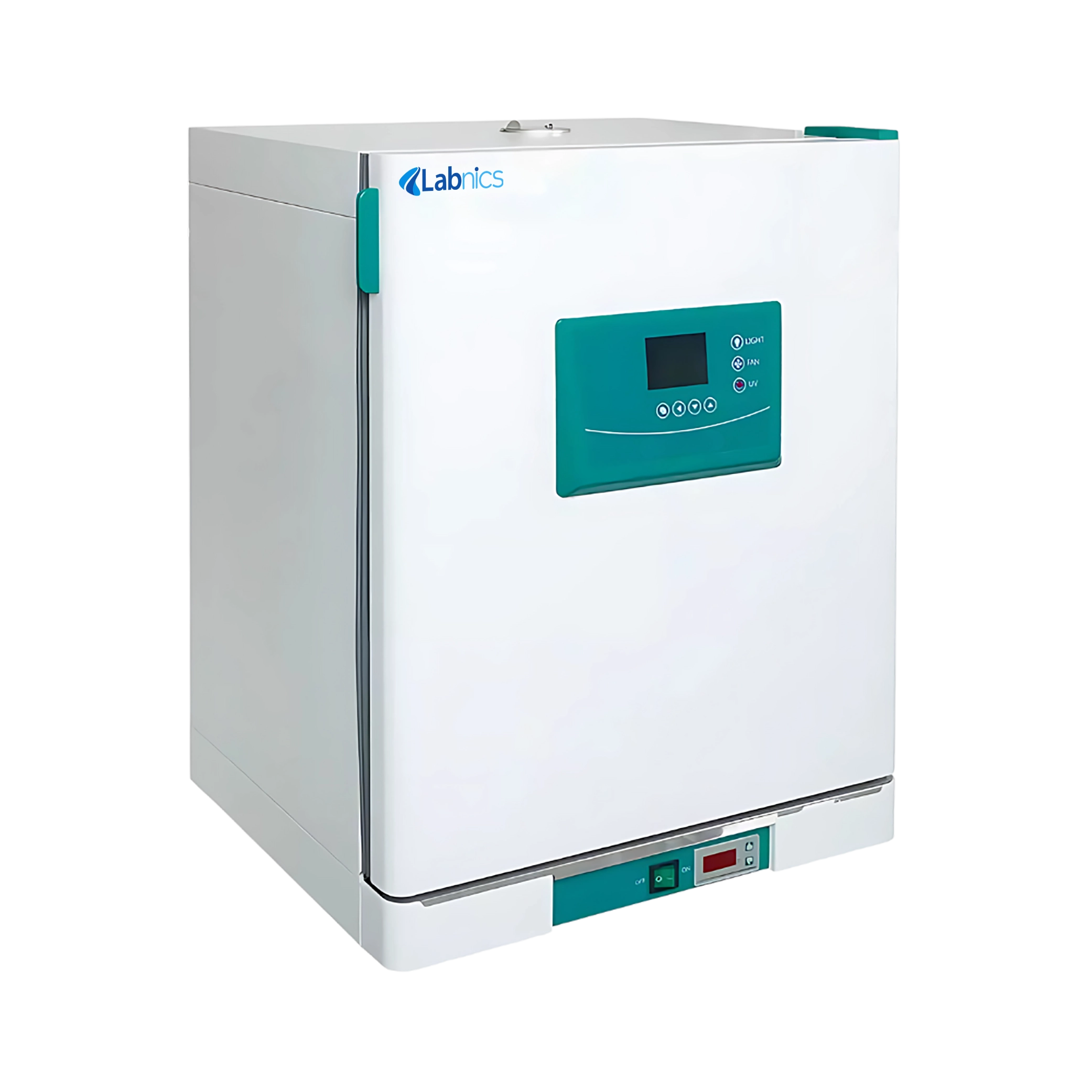

Constant Temperature Incubator NCTI-105 is a laboratory incubator with forced air convection that maintains controlled heat distribution throughout the chamber. Equipped with PID intelligent controller, integrated LCD, programmable alarm system and customized temperature setting makes it easier for the user to achieve the required conditions. The inner glass door makes it easy to view the contents without disturbing the atmosphere of the incubator. As a result, these incubators are ideal instruments in many microbiological, biochemical, hematological and cell-tissue culture studies.
| Volume | 230 L |
|---|---|
| Air circulation | Forced air convection |
| Temperature Range | + 5°C – 120°C |
| Temperature Resolution ratio | 0.1°C |
| Temperature Accuracy | ± 1.0°C |
| Inner Chamber Body | Mirror Stainless Steel |
| Outer Chamber Body | Cold-rolled Steel with electrostatic powder spray |
| Insulation Material | High-quality Foam Board |
| Power Rating | 1.5 kW |
| Exhaust Opening | Φ 28mm |
| Control System | PID Intelligent Controller |
| Timer | 0-9999 min |
| Display | LCD |
| Operational Function | Temperature and timings settings, auto-stop function |
| Sensor | PT100 |
| No. of Shelf | 17 |
| Load per Shelf | 15 kg |
| Shelf space | 35 mm |
| Inner Dimensions (W × L × H) | 600 × 500 × 750 mm |
| Exterior Dimensions (W × L × H) | 730 × 680 × 1250 mm |
| Packing Dimensions (W × L × H) | 860 × 790 × 1400 mm |
| Power Supply | AC 220 V / 13.6 A |
| Net Weight | 94 kg |
| Gross Weight | 120 kg |
