Product Data Sheet · Laboratory Equipment

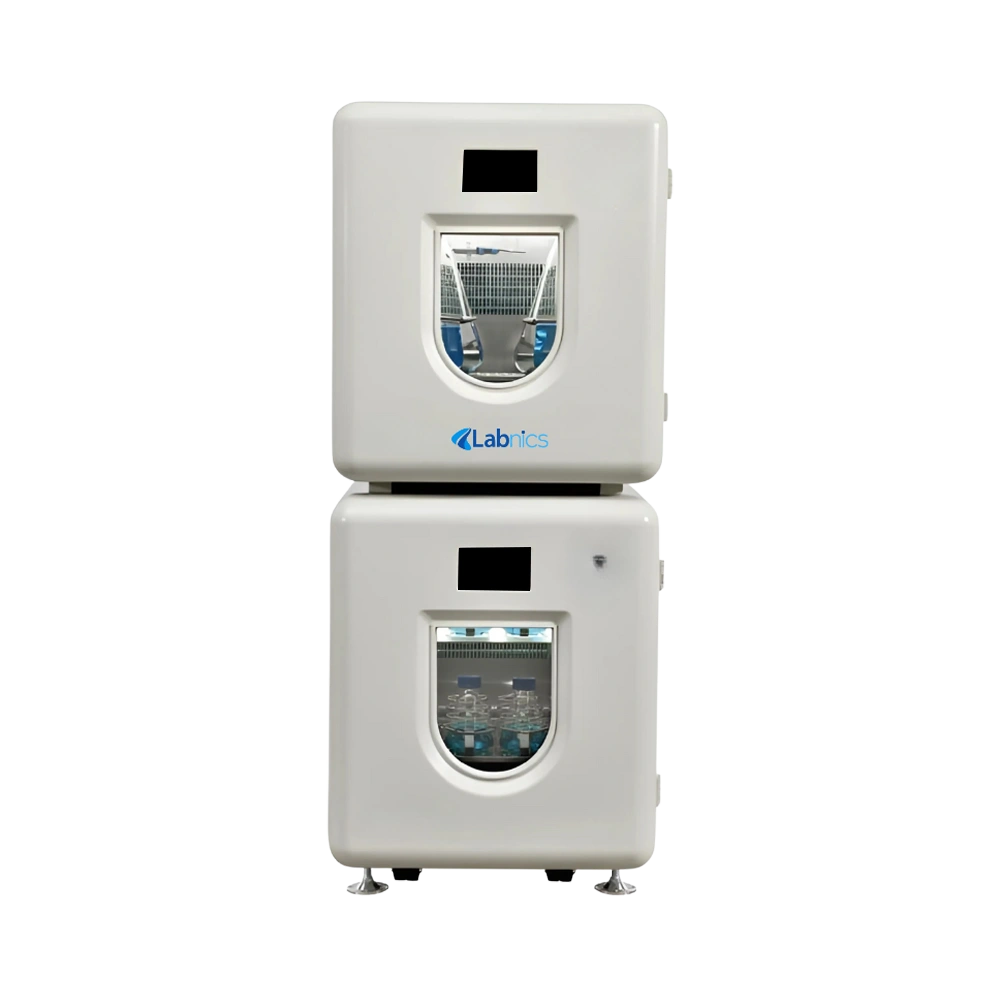

Stackable CO₂ Shaker Incubator NCSI-300 offers a 170-liter capacity for accommodating diverse samples. It operates within a wide temperature range of 4°C to 60°C, suitable for versatile applications. This unit features rotary and reciprocating motion for flexible sample agitation. It has a 0.2 µm in-line HEPA filter to ensure a contaminant-free environment. Our incubator includes a high-quality aluminum alloy tray with oxidized surface treatment for durability and easy cleaning.
| Door opening method | Front opening |
|---|---|
| Capacity | 170 liters |
| Internal usable height | 505 mm |
| Maximum loading capacity | 5000ml×4 2000ml×5 1000ml×9 500ml×16 250ml×25 1 shelf for static culture (for both shaking culture and static culture) |
| Temperature range | 4 to 60°C (Ambient temperature-18°C, minimum 4°C) |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ≤±0.5°C at 37°C |
| Temperature recovery time | ≤10mins |
| CO₂ sensor | Well-known brand IR sensor |
| CO₂ range | 0 to 20% |
| CO₂ accuracy | ±0.1% |
| CO₂ uniformity | ±0.5% (at 5%) |
| CO₂ recovery time | ≤5min after the door opens in 30s |
| Rotation way | Rotary/reciprocating switchable |
| Rotation speed | 0 to 300 rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 25mm (50mm or 0 to 50mm adjustable) |
| Timing range | 0 to 9999H/0 to 9999min |
| Display | 7-inch TFT color touchable |
| Control | P.I.D microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single-axis balanced drive |
| HEPA filter | 0.2µm in-line filter |
| Tray material | High-quality aluminum alloy, oxidized surface treatment |
| Flask clamp/Chamber material | Stainless steel type 304 |
| Decontamination method | UV sterilization |
| Illumination/UV lamp | 8W/8W |
| Bearings | Original imported double row bearings |
| Compressor | Variable frequency compressor (energy saving 30%) |
| Stackable quantity | 1 layer / 2 layers / 3 layers |
| Heating power | 800W |
| Cooling power | 150W |
| Motor power | 250W (High-quality servo motor) |
| Tray size | 480×440mm |
| Internal dimension | 580×520×565mm |
| External dimension | 715×900×810mm |
| Net weight | 218 kg |
