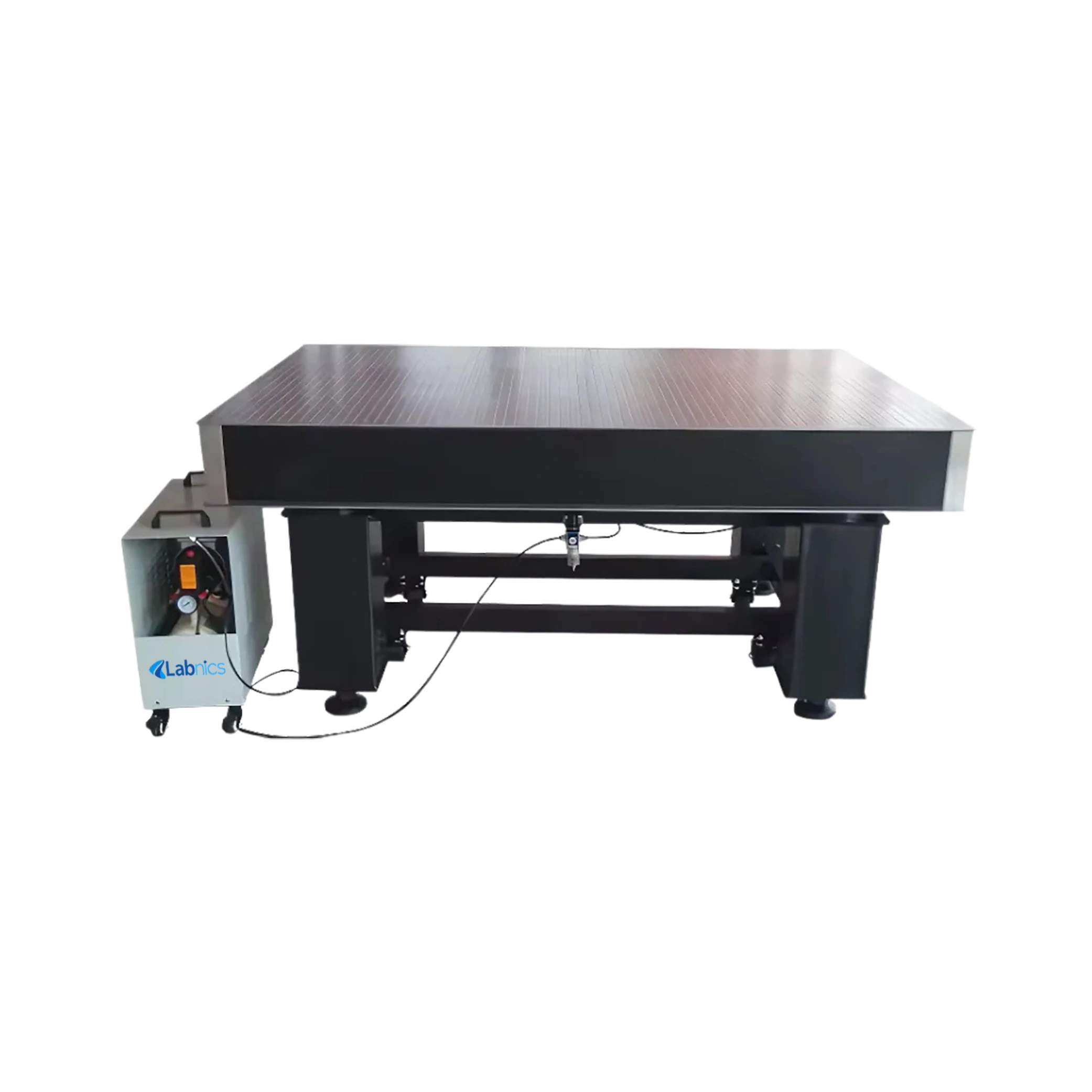

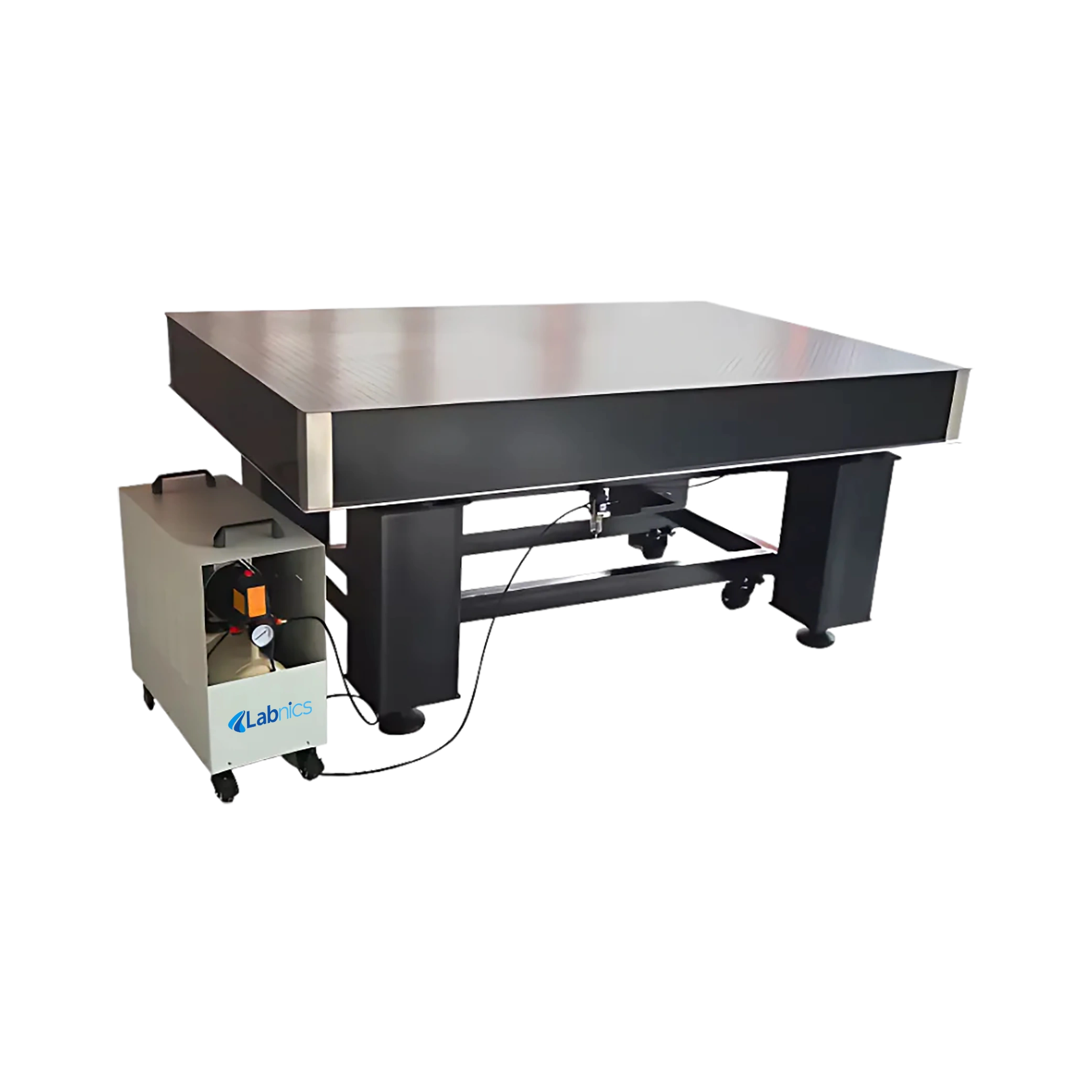

Anti-Vibration Optical Table NAVOT-100 offers a 200 mm thick table for stable and precise support. It features a high-density plated steel honeycomb core for strength and lightweight performance. This unit incorporates a self-balancing pneumatic vibration isolation system with four 600 mm isolators. It includes a mute air compressor to provide a continuous, quiet air supply. Our optical table has an operating noise level of 53 dB for low-noise laboratory use.
$10,075.00
Specifications
| Vibration isolation type | Pneumatic |
| Table thickness | 200 mm |
| Flatness of top skin | ±0.1 mm over any 1 m² |
| Roughness | 0.8 μm |
| Inherent frequency | 4 to 6Hz |
| Maximum amplitude | 5 μm |
| Construction | Symmetrical isotropic construction in all axes |
| Top plate | 5 mm thick ferromagnetic stainless steel, 430 grade working surface |
| Bottom plate | 5 mm thick steel plate with epoxy-painted finish |
| Core construction | High-density of 125 to 250 kg/m³ plated steel honeycomb, 0.25 mm thick |
| Damping | Proprietary optimized broadband damping |
| Side panels | Composite wood with stainless steel plate |
| Side trim finish | Matte black aluminum plastic, 3 mm inset from the table surface |
| Top surface finish | Machined matte finish |
| Threads and spacing | M6 tapped holes on 25mm centers |
| Distance from the edge to the first hole | 37.5mm from the table edge on all sides |
| Maximum screw depth | 19mm, easy clean, non-corrosive, high-impact polymer conical cup |
| Maximum dynamic deflection coefficient | <1.2×10⁻³ |
| Maximum relative tabletop motion | <8×10⁻⁷ mm |
| Deflection under load (stiffness) | <1.5×10⁻³ mm for a 100 kg load |
| Height | 700 mm |
| Height adjustment range | ±15mm |
| Legs number | 4 |
| Vertical resonant frequency | <2Hz |
| Horizontal resonant frequency | <2Hz |
| Vertical transmissibility at 5Hz | 83% to 88% |
| Vertical transmissibility at 10Hz | 86% to 96% |
| Horizontal transmissibility at 5Hz | 79% to 86% |
| Horizontal transmissibility at 10Hz | 83% to 92% |
| Self-leveling repeatability | ±0.1mm |
| Maximum load capacity | 700kg (weight of tabletop excluded) |
| Finish | Black paint |
| Air pressure (maximum) | 8Bar |
| Air discharge | 68L/min |
| Tank capacity | 6L |
| Operating noise | 53 dB |
| Power consumption | 550W |
| Power supply | 220 V,50 Hz |
| Product dimension | 2400×1200×200mm |
| Packed table dimension | 2500×1300×350mm |
| Packed support dimension | 2160×1160×1030mm |
| Unpacked table weight | 385kg |
| Unpacked support weight | 140kg |
| Packed shipping table weight | 444kg |
| Packed shipping support weight | 290kg |
Features
Applications
Ask Expert
Labnics Anti-Vibration Optical Tables are designed to deliver maximum stability for sensitive optical experiments. They use a honeycomb core structure that provides strength, rigidity, and lightweight performance. These units feature pneumatic vibration isolation to minimize external disturbances. They maintain high surface flatness for precise instrument alignment. Our optical tables include a corrosion-resistant finish to ensure long-lasting durability.
