Product Data Sheet · Laboratory Equipment

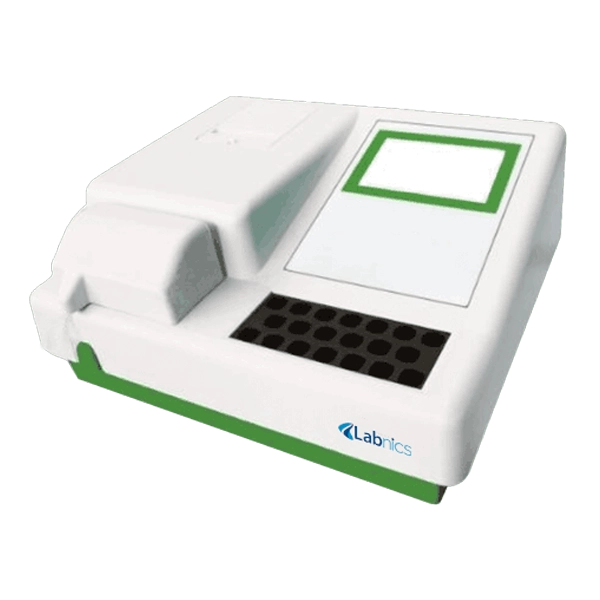

Semi-automatic chemistry analyzer NSCA-101 is a unit with a wide wavelength and measuring range. It features excellent QC functions and has a built-in thermal printer. Methods used are end point, fixed time, multistandard, bichromatic and immunoturbidimetry
| Measuring volumes | 451 µL to 800 µL |
|---|---|
| Incubator | None |
| Wavelength | 340 nm /405 nm /492 nm /510 nm /546 nm /578 nm /620 nm, 2 more filters available on request |
| Wavelength accuracy | ± 2 nm |
| Temperature | 25 °C, 30 °C, 37 °C |
| Precision | ± 0.1 °C |
| Measuring range | 0 to 3.0 O.D |
| Photometric linearity | ± 2 % (0 to 3.0 O.D) |
| Photometric accuracy | ± 1 % (0 to 3.0 O.D) |
| Carry-over | ≤ 1 % |
| Drift | < 0.005 O.D/hr |
| Display | Back-illuminated LCD, color touch screen |
| Storage | Over 180 programs, 3000 test results |
| Printer | Built-in thermal printer |
| Software | For computer communication on request |
| Interface | RS-232 serial port, USB port |
| Dimensions | 340 x 380 x 180 cm |
| Weight | 7 kgs |
| T.BILI | r-GT/GGT | CHO | Ca | APOB-1/B | CHE |
| D.BILI | ALP/AKP | TG | CL | APOB | CREA |
| TP | UREA | CK | P | CK-MB | Mg |
| ALB | LDH | CK | ASO | AFU | Lactic acid |
| ALT/GPT | UA | α-HBDH | CO2 | FMN | LP(a) |
| AST/GOT | GLU | AMY | LDL-C | HDL-C | Lactic acid |
| TBA | ADA | HS-CRP | PA | Fe | Cu |
| Zn | C3 | C4 | IgG | ||
| IgM | IgA | and drug, toxicity, etc | |||
