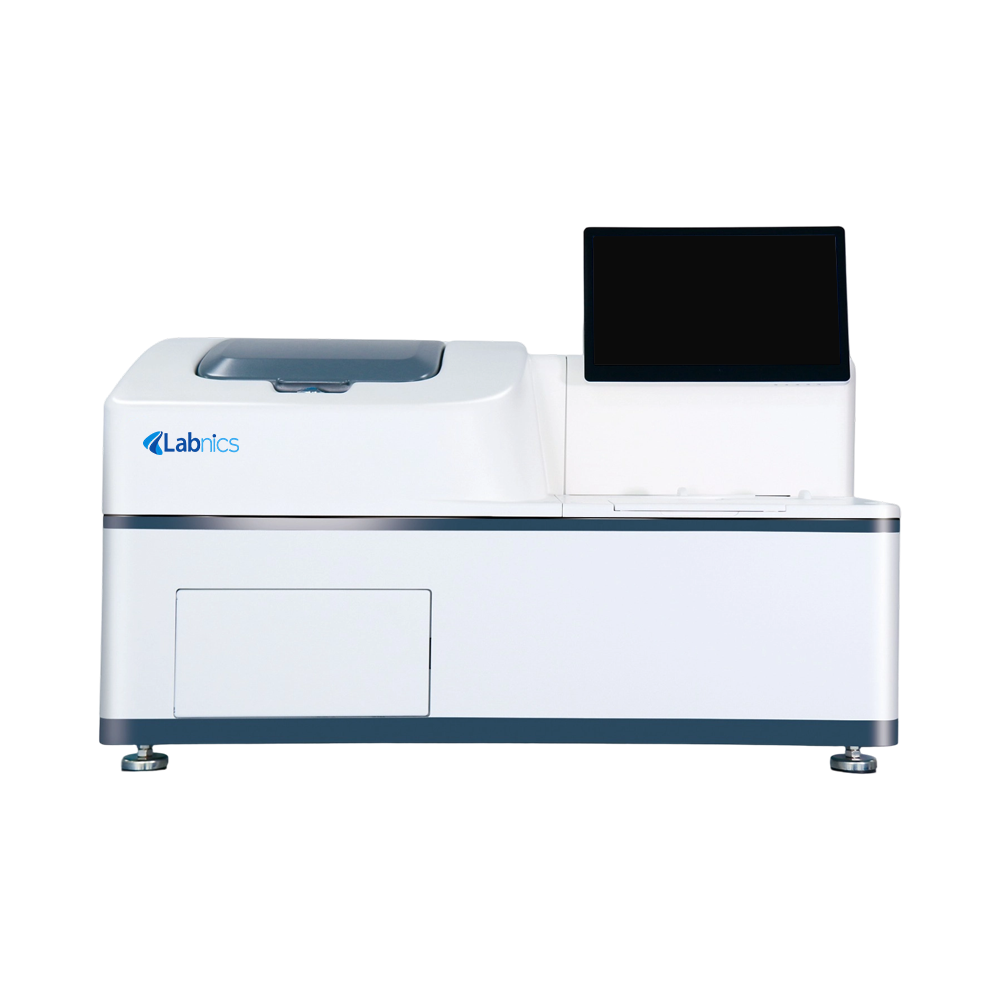

Chemiluminescence Immunoassay Analyzer NCIA-100 offers a sample capacity of 10 to 200 µl and 60 sample positions. It utilizes magnetic particle separation for faster and more efficient reactions. This unit features built-in sample barcode scanning for accurate identification and tracking. It has a compact and lightweight design for easy placement and operation. Our immunoassay analyzer includes a temperature-controlled reagent tray for stable performance.
| Throughput | 220 tests/hour |
| Sample Positions | 60 |
| Reagent Positions | 25 pcs (2 to 8°C refrigeration) |
| Incubation Positions | 90 |
| Time to 1st Result | 15 Minutes |
| Sample Capacity | 5 to 150µL |
| Detection Precision | Repeatability CV ≤ 3% |
| Modes of operation | Random, Batch and STAT |
| Carry-over Rate | Up to 10⁻⁵ |
| Correlation Coefficient | R up to 0.99 |
| Calibration Stability | Long-term stability, Opening stability, Transportation stability |
| Calibration Type | 2 or 6 calibrations |
| Software System | Touch screen, English operation interface / LIS connection |
| Power Supply | 220V 50Hz |
| Overall Dimensions | 1000 × 670 × 700 mm |
| Package Dimensions | 1300 × 800 × 900 mm |
| Net Weight | 120 kg |
| Gross Weight | 180 kg |
Our Chemiluminescence Immunoassay Analyzer is used in clinical diagnostics to detect hormones, infectious diseases, cancer markers, and cardiac biomarkers with high sensitivity and specificity.
Substrate solution ×1 bottle
Printer
Reaction Cuvette
System Washing Solution
Substrate
Sample cups
