Laboratory Equipment
Product Data Sheet · Laboratory Equipment

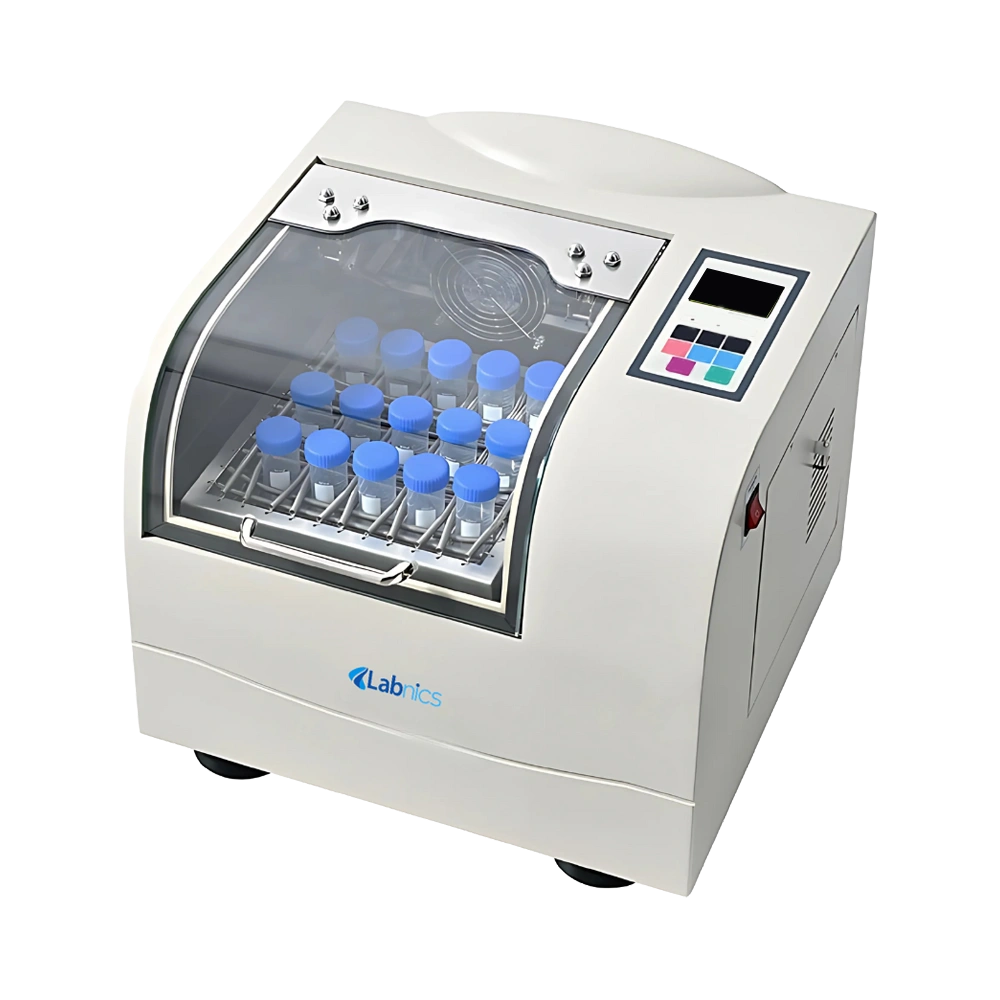

Benchtop Incubator Shaker NBIS-500 is designed with a 22-liter capacity and an internal usable height of 195 mm. It operates efficiently within a temperature range of RT + 5 °C to 60°C for reliable thermal conditions. This unit provides stable oscillation through five-dimensional dynamic balance drive technology. It comes with a P.I.D. microcomputer that delivers precise regulation. Our shaker features a clear LCD that allows easy monitoring of key parameters.
| Door opening method | Door upward |
|---|---|
| Capacity | 22 liters |
| Internal usable height | 195 mm |
| Opening height | 746 mm |
| Maximum loading capacity | 250ml×7 100ml×12 50ml×16 18ml×56 Test tube rack |
| Temperature range | RT+5 to 60°C |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ≤±1.0°C at 37°C |
| Ambient temperature range | 5 to 35°C |
| Temperature editing | Repeat/Pace/8-segment curve editing |
| Rotation way | Rotary switchable |
| Rotation speed | 30 to 400 rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 20 mm |
| Timing range | 0 to 999.59H |
| Display | LCD |
| Control | P.I.D microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material | Stainless steel type 304 |
| Bearings | Original imported double row bearings |
| Compressor | Variable frequency compressor |
| Clamp types | Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power | 150W |
| Motor power | 80W |
| Whole machine power | 269W |
| Tray size | 260×260mm |
| Internal dimension | 330×305×215mm |
| External dimension | 460×410×455mm |
| Net weight | 54 kg |
