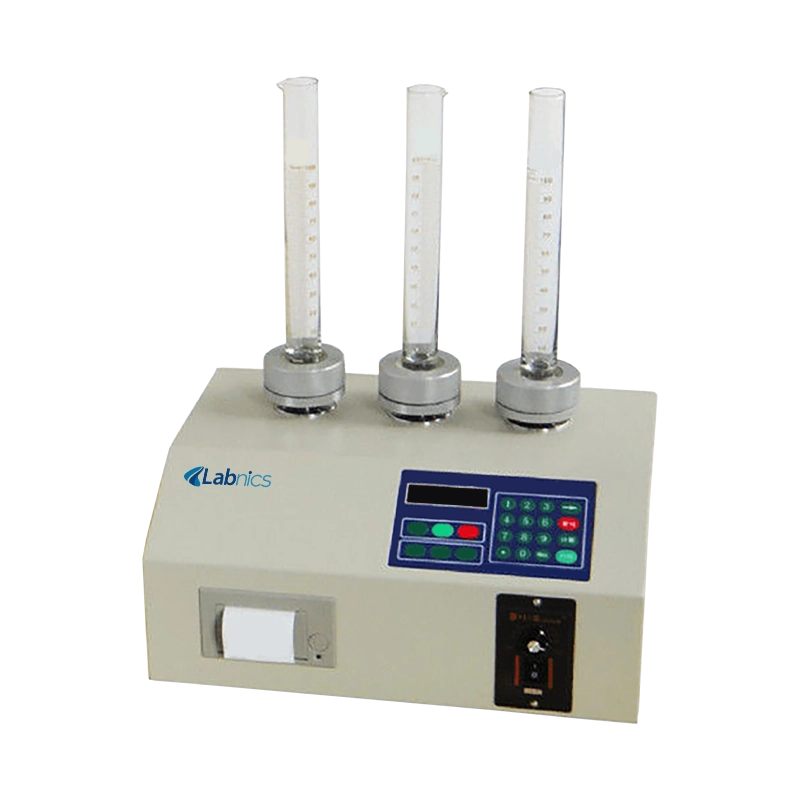

Tap Density Tester NTDT-101

Tap Density Tester NTDT-101

Tap Density Tester NTDT-101 is designed with three workstations for simultaneous sample testing. It supports up to 500 g in weight and 250 ml in volume for each test sample. This unit uses a high-quality adjustable-speed motor for reliable tapping performance. It comes with a plastic-coated exterior that resists both corrosive and non-corrosive powders. Our tester includes a membrane keypad for simple and user-friendly operation.


$3,363.00

Catalog

Specifications

Work station 3
Sample volume ≤ 250 ml
Sample weight ≤ 500 g
No. of tapping ≤ 0 to 99999 times (set 0 to output bulk density)
Vibration frequency 300 rpm (0 to 300 rpm is adjustable)
Vibration amplitude Maximum 15 mm (1 to 15mm is adjustable)
Repeatability ≤ 1%
Accuracy ≤ 1%
Motor force 0.86 N.m
Display LED

Features

  • LED display interface
  • Durable construction
  • Easy height adjustment
  • Integrated micro printer
  • High repeatability accuracy
  • Microprocessor control
  • Low-maintenance design

Applications

  • Tap Density Tester NTDT-101 is used to determine the tap density of powders, helping assess their flowability and packing behavior. It is widely used in pharmaceutical, chemical, metallurgical, and research laboratories.

Standard Accessories

25 ml measuring cylinder
50 ml measuring cylinder
100 ml measuring cylinder
250 ml measuring cylinder

Ask Expert

FAQ for Tap Density Tester NTDT-101

1: How easy is it to operate the Tap Density Tester NTDT-101?

The Tap Density Tester is equipped with a membrane keypad and LED display, making it easy to set parameters and operate. It provides clear feedback and requires minimal training to use efficiently.

2: Does the Tap Density Tester NTDT-101 print the test results automatically?

Yes, our Tap Density Tester includes a built-in micro printer that automatically prints results after the test. The report includes all key data such as sample number, weight, volume, tap number, and tap density.

3: Is the Tap Density Tester easy to clean and maintain?

The smooth, plastic-coated surface makes the machine easy to clean and resistant to dust and residue buildup. This helps maintain hygiene and extends the tester’s lifespan.

4: What parts of the Tap Density Tester NTDT-101 need the most attention during cleaning?

The measuring cylinders, vibration platform, and outer body should be wiped regularly. Pay special attention to the vibration assembly area to prevent powder buildup.

5: How do I store the Tap Density Tester when not in use?

Keep the Tap Density Tester covered and stored in a dry, dust-free environment. Disconnect the power supply and clean the surface before storage to prevent long-term wear.

Related Models Of Tap Density Tester

Labnics Tap Density Testers are microprocessor-controlled, ensuring stable operation with user-friendly functionality. They feature an adjustable drop height, offering flexibility to accommodate different testing standards. These units feature LED displays that provide clear and user-friendly monitoring for easy operation. They include an integrated micro printer to easily print test results and data. Our density meters are easy to clean, offering anti-corrosive properties and lasting durability.
