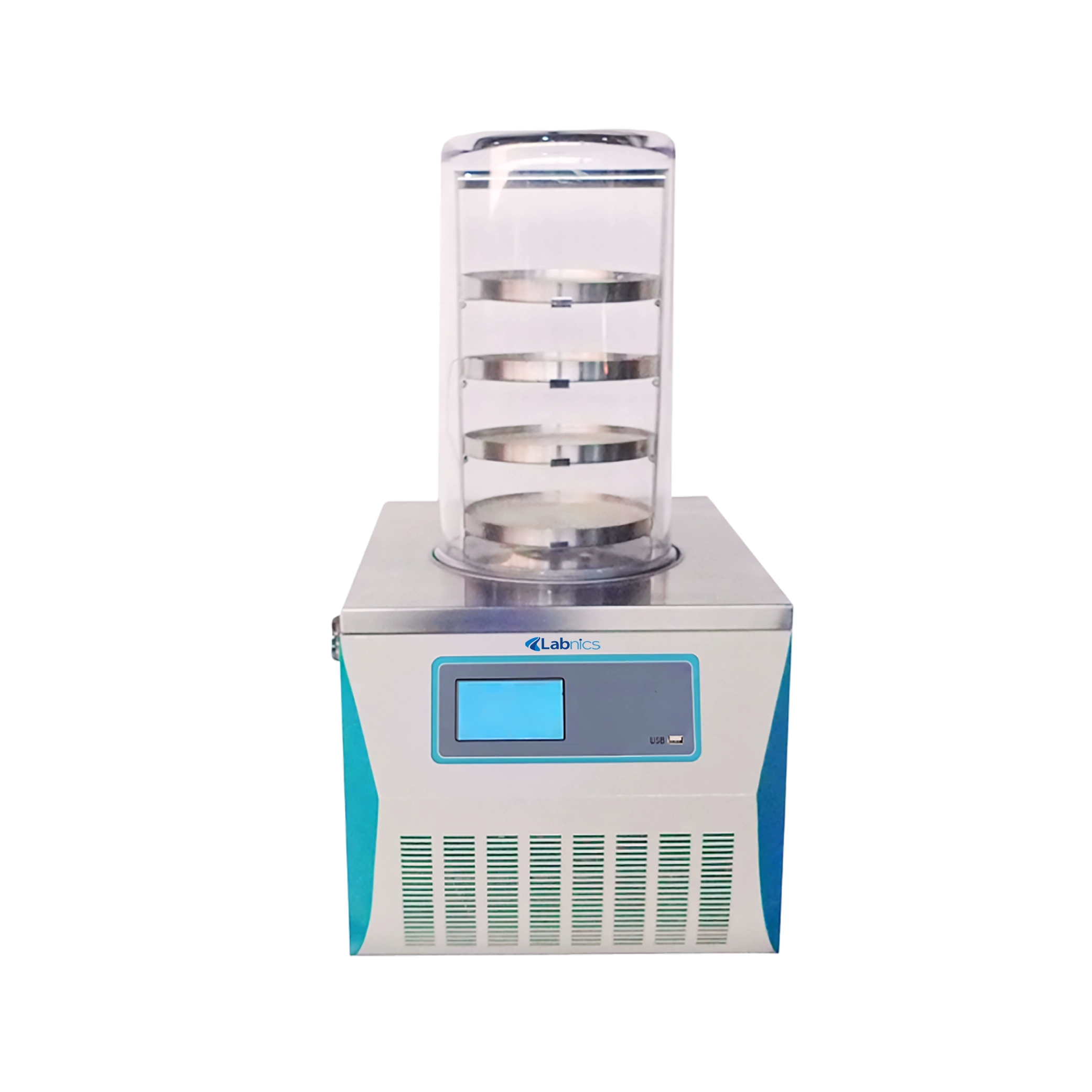

Benchtop Freeze Dryer NBFD-100 offers a drying area of 0.12 m² and a condenser temperature of 50°C. It operates on a CFC-free refrigerant system with low noise and high efficiency. This unit comes with a clear acrylic drying chamber for viewing sample status. It features a compact structure for easy placement and operation. Our benchtop freeze dryer includes corrosion-resistant stainless steel parts for long-term use.
| Drying area | 0.12 m² |
| Condenser temperature | -50°C or -80°C |
| Vacuum degree | Less than 10 Pa |
| Condenser capacity | 3 to 4 kg/24h |
| Sample tray | Φ200 × 4 |
| Shelf spacing | 70 mm |
| Bulk liquid capacity | 1.2 L |
| Vial capacity | Φ12mm: 820 pcs Φ16mm: 460 pcs Φ22mm: 244 pcs |
| Vacuum Pump Flow Rate | 2 L/S, 7.2 m³/h |
| Power Consumption | 970W |
| Power Supply | 220V/50 Hz |
| Dimension | 565 × 420 × 790 mm |
| Weight | 70 kg |
Benchtop Freeze Dryer NBFD-100 is suited for laboratories handling pharmaceuticals, biological samples, and food-based materials. It supports safe and precise freeze-drying of both organic and aqueous substances.
Capping Device
Stainless Steel Sample Tray
