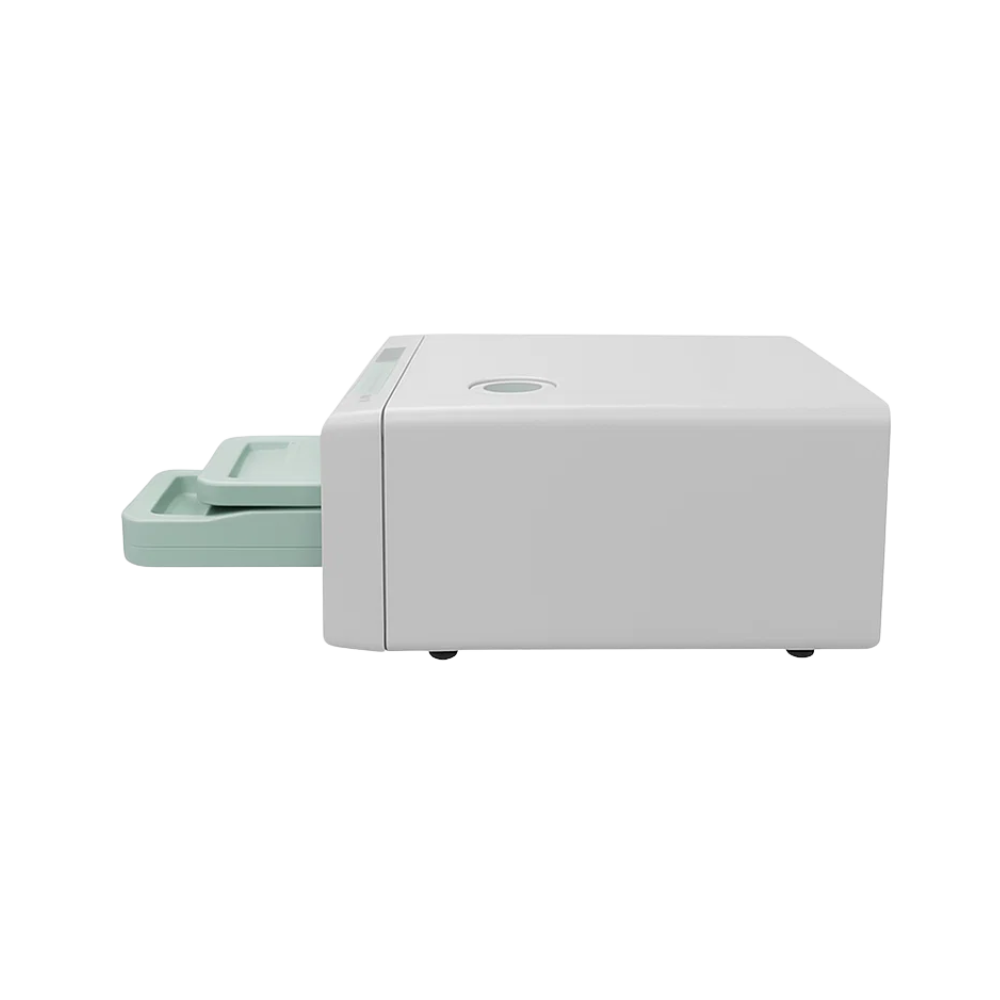

Cassette Autoclave NCAC-101 features a 5.2L chamber capacity, providing efficient sterilization. It completes the sterilization cycle in just 6 to 7 minutes, ensuring maximum efficiency. It functions as both a sterilization chamber and a secure container for storage and transport. This autoclave ensures safety by automatically stopping the process in case of low temperature or pressure. Our unit provides fully adjustable sterilization time and temperature to accommodate diverse operational needs.
$6,938.00
Specifications
| Chamber Capacity | 5.2 L |
| Maximum Steam Temperature | 138 ℃ |
| Water Tank Volume | 3.4L |
| Water Usage | Distilled water, pure water, or ultra-pure water |
| Printer | Thermal type |
| Print Speed | 5 mm/s |
| Paper Roll | Width: 57mm Roll diameter: 48mm Approx. 180 cycles per roll |
| Power Supply | 220V±20% 50Hz |
| Sterilization Cassette Internal Dimensions | 380 × 180 × 78 mm |
| Sterilization Cassette External Dimensions | 480 × 196 × 80 mm |
| Dimensions | 580 × 460 × 190 mm |
| Net Weight | 37 kg |
Features
Applications
Optional Accessories
Sealing ring
Ask Expert
FAQ for Cassette Autoclave NCAC-101
1: What safety features does the Cassette Autoclave NCAC-101 offer during operation?
The Cassette Autoclave NCAC-101 includes automatic safety shutdown mechanisms that activate in case of abnormal temperature or pressure. This ensures operator safety and prevents damage to the equipment or load.
2: Does the Cassette Autoclave NCAC-101 allow adjustment of sterilization parameters?
Yes, the Cassette Autoclave NCAC-101 offers fully adjustable sterilization time and temperature settings. This flexibility accommodates different instruments and sterilization requirements in clinical and laboratory settings.
3: How does the Cassette Autoclave NCAC-101 handle water shortage situations?
Our Cassette Autoclave NCAC-101 is equipped with a water shortage alarm that alerts the user when the water level is low. This prevents interruption during the sterilization process and protects the device from overheating.
4: What should I do if the Cassette Autoclave NCAC-101 displays an error or doesn’t start?
If the Cassette Autoclave NCAC-101 fails to start or shows an error, ensure the water tank is filled, the cassette is correctly positioned, and the lid is securely closed. Review the printed error message using the built-in thermal printer for further guidance.
5: Does the Cassette Autoclave NCAC-101 include a built-in printer for cycle records?
Yes, the Cassette Autoclave NCAC-101 comes with an integrated thermal printer that records each sterilization cycle. This helps in maintaining sterilization logs and ensuring regulatory compliance.
Labnics Cassette Autoclave features stainless steel construction providing durability and corrosion resistance. They have user-friendly controls that allow for easy and intuitive operation. They include adjustable temperature settings for precise control. These autoclaves include alarms and interlocks for enhanced safety and reliability. Our units provide optimal performance with minimal maintenance.
