Biological Microscope NBM-109
Biological Microscope NBM-109 is equipped with a 30° inclined trinocular head for comfortable viewing. It features a double-layer ceramic stage for enhanced durability. This unit automatically turns off after 30 minutes of inactivity to conserve energy. It features an LCD display that shows brightness, magnification, and color temperature adjustments. Our microscope offers various observation modes, including Bright Field, Dark Field, Phase Contrast, and Polarizing.
Head |

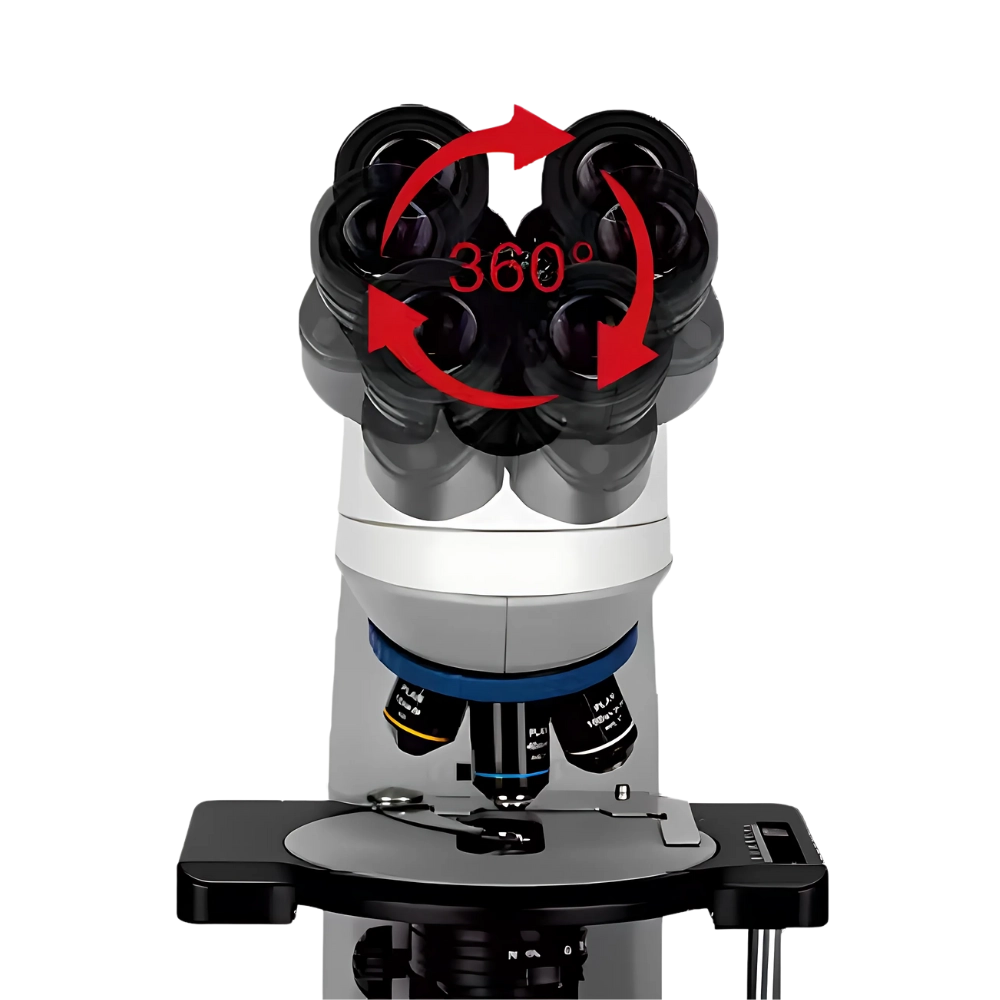

30° inclined, gemel trinocular design 360° rotatable Adjustable eye-point height: 375-428.5mm Fixed eyepiece tube Diopter adjustable: 48-76mm Spectroscopical ratio: R: T = 50:50 |
High Eye Point PL Eyepiece | 10X/22mm, Diopter Adjustable |
Nosepiece | Backward 5 Holes Coded Nosepiece |
Infinity Plan Achromatic Objective |
2x/NA 0.06, WD = 5.00mm (used with frosted glass inserts) 4x/NA 0.1, WD = 15.00mm 10x/NA 0.25, WD = 10.8mm 20x/NA 0.40, WD = 1.50mm 40x/NA 0.65, WD = 0.80mm 100x/NA 1.25, WD = 0.21mm, oil immersion |
Working Stage |
Double layers mechanical stage Size: 210 × 171mm Moving range: 78 × 51mm Scale: 0.1mm Features a reckless safety edge and double slide holder |
Focusing |
Low position coaxial coarse and fine focusing knobs Tension adjust ring and safety upper stop limit ring Coarse focusing range: 27mm Fine focusing scale: 0.002mm |
Main Body |
High brightness 3W LED LCD screen on stand Color temperature adjustable: 3000-7000K Magnification display Brightness memory ECO function with time setup |
Condenser | Kohler Condenser NA1.25, PH/DF Slide Slot, Iris Diaphragm, Pre-centered |
Adapter | 0.5x C-mount, Focus Adjustable |
Power Supply |
100-240V Type-C & USB |
Dimensions (H × W × D) | 419 × 215 × 416 mm |
Packaging Dimensions | 530 × 440 × 360 mm |
Weight | 10kg |
Biological Microscope NBM-109 is used for detailed observation and analysis of biological specimens, such as cells, tissues, and microorganisms. It is commonly used in laboratories, research facilities, and educational institutions.
Inner Hexagon Spanner M4 (L Type)
Accessory | Specification |
Plan Eyepiece | Diopter adjustable, Dia. 30mm, PL10x/22mm |
Infinity Plan Objective | 60x/0.85, WD=0.30, Spring |
Infinity Plan Phase Contrast Objective 1 | 10x/0.25, WD 10.8mm |
Infinity Plan Phase Contrast Objective 2 | 20x/0.4, WD 1.5mm |
Infinity Plan Phase Contrast Objective 3 | 40x/0.65, WD 0.8mm |
Infinity Plan Phase Contrast Objective 4 | 100x/1.25, WD 0.18mm |
Phase Contrast Board 1 | For Phase Contrast Objective 10x, 40x |
Phase Contrast Board 2 | For Phase Contrast Objective 20x, 100x |
Turret Phase Contrast Condenser Set | N.A. 1.25 Kohler Illumination, for 10x, 20x, 40x, 100x Phase Contrast Observation |
Turret Phase Contrast Condenser + Dark Field Set | N.A. 1.25 Kohler Illumination, for Phase Contrast (10x, 40x, 100x) and Dark Field Observation |
Microscope Head | Siedentopf trinocular, 30° inclined, 360° rotatable |
Dark Field Board Set | For 4x-40x objectives (Kohler Illumination System) |
Darkfield slide (Use as a bottom light barrier in LED fluorescence microscopes) | |
Polarizing Attachment Polarizer | Dia. 40mm, for transmitted light source |
Polarizing Attachment Analyzer | - |
