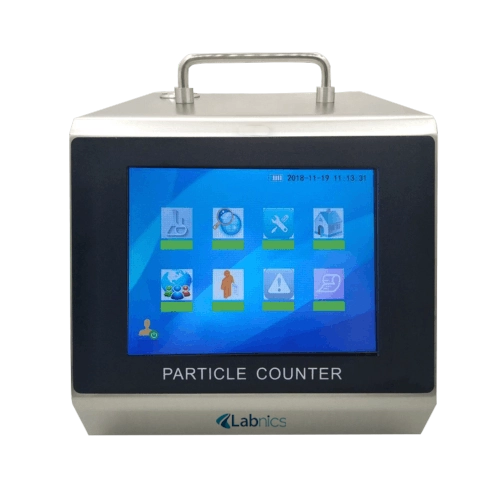

Airborne Particle Counter NAPC-300
Airborne Particle Counter NAPC-300 is an analytical instrument intended to assess the number and size dispersion of particulate contaminants suspended in a controlled environment. It is supported by a laser diode as a light source and different size channels that provide an accurate estimation of a vast range of bio-contaminants. The data transfer interface feature permits significant risk assessment of the air quality norms led by GMP standard guidelines.
| Flow Rate | 28 .3 L/min (Imported Pump) |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 µm |
| Light Source | Laser Diode (30, 000 hours Mean Time Between Failures) |
| Environment Temperature | 10°C to 35°C |
| Sample Time | 1 to 10 min (selectable) |
| Alarm | 10, 100, 1000, 10000, 100000, 300000 Class/ ISO |
| Calculation | 95 % UCL Calculation, Display Particle Concentration |
| Zero Count & le | 10 min |
| Location Labels | 0 to 999 |
| Printer | Built-in Thermal Printer |
| Atmosphere Pressure | 86 kPa to 106 kPa |
| Data Storage | 1000 Samples (with PC Software) |
| Display | LCD |
| Maximum Rated Particle Concentration | 35000 particles / L |
| Operating Time | 3 hours |
| Humidity | 20 % to 75 % RH |
| Power Source | DC 16.8 V (Lithium Ion Battery) |
| Max. Power Consumption | 48 W |
| Weight | 7.5 kg |
This instrument is widely used in the field of Quality control department in Pharmaceutical sector, micro-electronics, precision machinery, optics, pharmacy and sanitation, biology, food and beverage, aerospace. Also in and scientific research department such as provincial and municipal drug testing institutes, Hospitals, Inspection institutes. etc.
| Particle Channel | 0.3,2.5,10 μm |
| Mass Concentration | PM2.5: 0~500 ug/m3; PM10: 0~500 ug/m3 |
| Flow Rate | 0.1 ft³ (2.83 L/min) |
| Deviation | 5 % ; 2,000,000 particles per ft³ |
| Particle Channel | 2.5,10 μm |
| Mass Concentration | PM2.5: 0~500 ug/m3; PM10: 0~500 ug/m3 |
| Resolution | 1 ug/m3 |
| Temperature Range | 0 °C - 50 ℃ |
| Light source | Laser diode (lifetime greater than 35000 hours) |
| Particle channel | 0.3, 0.5, 1, 3, 5, 10 µm |
| Sampling period | 1 to 10000 (s) time-delay: 0 to 99 (s) Self-cleaning time: 10 min |
| Sampling flow | 2.83 L / min (0.1 cfm) Imported pump |
| Particle Channel | 0.3, 0.5, 1.0, 2.5, 5.0, 10 μm |
| Mass Concentration | PM2.5: 0~500 ug/m3; PM10: 0~500 ug/m3 |
| Flow Rate | 0.1 ft³ (2.83 L/min) |
| Deviation | 5 % ; 2,000,000 particles per ft³ |
| Test range | 0.1 μm to 800 μm |
| Number of detector channels | 70 |
| Accuracy error | 1% (National standard sample D50 value) |
| Repeatability error | 0.5% (National standard sample D50 value) |
Labnics Liquid Particle Counter are designed for the precise detection and analysis of particles in liquids across a broad size range. Our units are suitable for analyzing multiple samples simultaneously for enhanced performance. These Liquid Particle Counters provide automatic data storage and retrieval for efficient management of information. They include color touchscreens, allowing for easy operation and clear data visualization.
| Particle size range | 0.8 to 600 µm (calibrated according to 1-100um or 4-70um(c)) |
| Sensitivity | 0.1μm |
| Detection channels | 8 to 64 channels are optional, and the particle size can be set arbitrarily |
| Sampling volume | 0.2 to 1000ml<br/> Interval 0.1mL |
| Particle Size Range | 0.2 to 2 μm |
| Detection Channels | 16 |
| Maximum Concentration | 10000 particles/ml |
| Accuracy | ± 10% |
