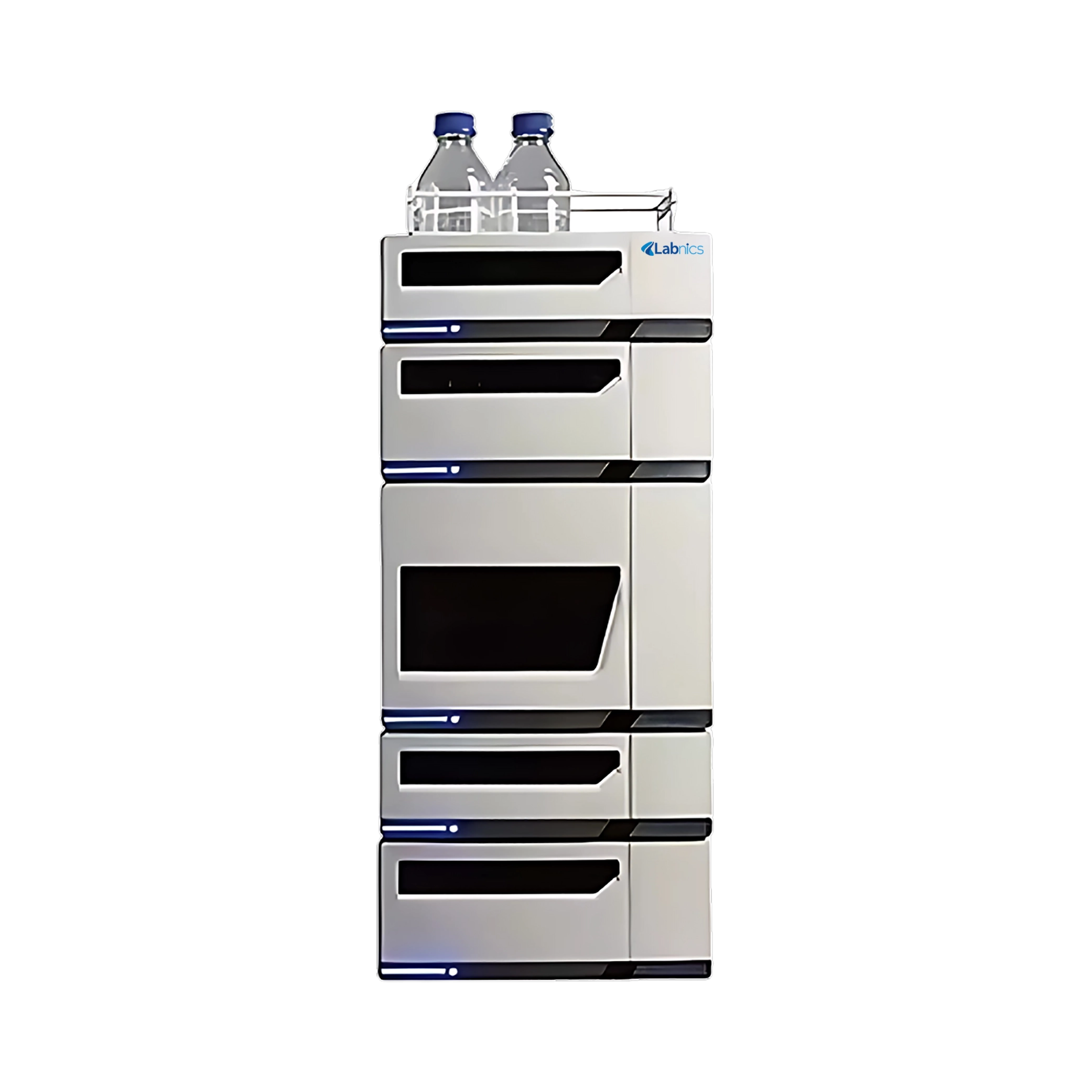

Quaternary High Pressure Liquid Chromatography NHLC-300

Quaternary High Pressure Liquid Chromatography NHLC-300

Quaternary High Pressure Liquid Chromatography NHLC-300 is a quaternary pump chromatography system. It is composed of a low pressure quaternary pump that delivers combination of eluent under the controlled reciprocating valve. It is equipped with tungsten and deuterium lamp as source of light and photo diode array as detector for precise separation and analysis of compounds with high operation reliability for extended time intervals.


Quaternary Pump Specifications:- Flow rate Range 0.001-10.000mL/min, 0.001mL increments
Flow accuracy ≤±0.2% (1.00ml/min, H2O, R.T., 8.5MPa)
Flow precision RSD≤ 0.06% (1.00ml/min, H2O, R.T., 8.5MPa)
Maximum pressure 50MPa (0.001mL/min-5.000mL/min) 20MPa (5.001mL/min-10.000mL/min)
Pressure accuracy ≤ ±3.0%
Pressure pulsation ≤0.1MPa
Composition range 0-100%
Composition precision ≤0.3% RSD
Composition accuracy ≤±1.0%
Photo diode Array Detector Specifications:- Wavelength range 190-760nm
Wavelength repeatability ±0.1nm
Wavelength accuracy ±1nm
Baseline noise ≤ ±1.0×10-5AU (empty cell, 254nm, 1.0s)
Drift ≤2.0×10-4AU/h (empty cell, 254nm, 60min)
Path length 10mm
Dimensions (L×D×H) 1620 × 1200 × 440 mm
Weight 51kg


  • Advanced and innovative design modules
  • Flexible System Configuration
  • Adjustable data collection frequency
  • Excellent optical path design improves the instrument signal to noise ratio
  • All components are controlled effectively via a Chromatographic Data-processing workstation
  • Automatically displays, prints, exports and starts other programs after the completion of a measurement
  • Integrated vacuum degasser with four channels
  • Multiple data analysis function, flexible peak identification and data management, etc
  • The monitoring system terminates the pump on exceeding its pre-limit pressure


It is used to separate and analyse a mixture of compounds in multidisciplinary fields like analytical chemistry laboratories, biochemistry, industrial purposes and Research & development studies.

Optional Accessories

Accessories No Name
1 Autosampler
2 Column Oven
