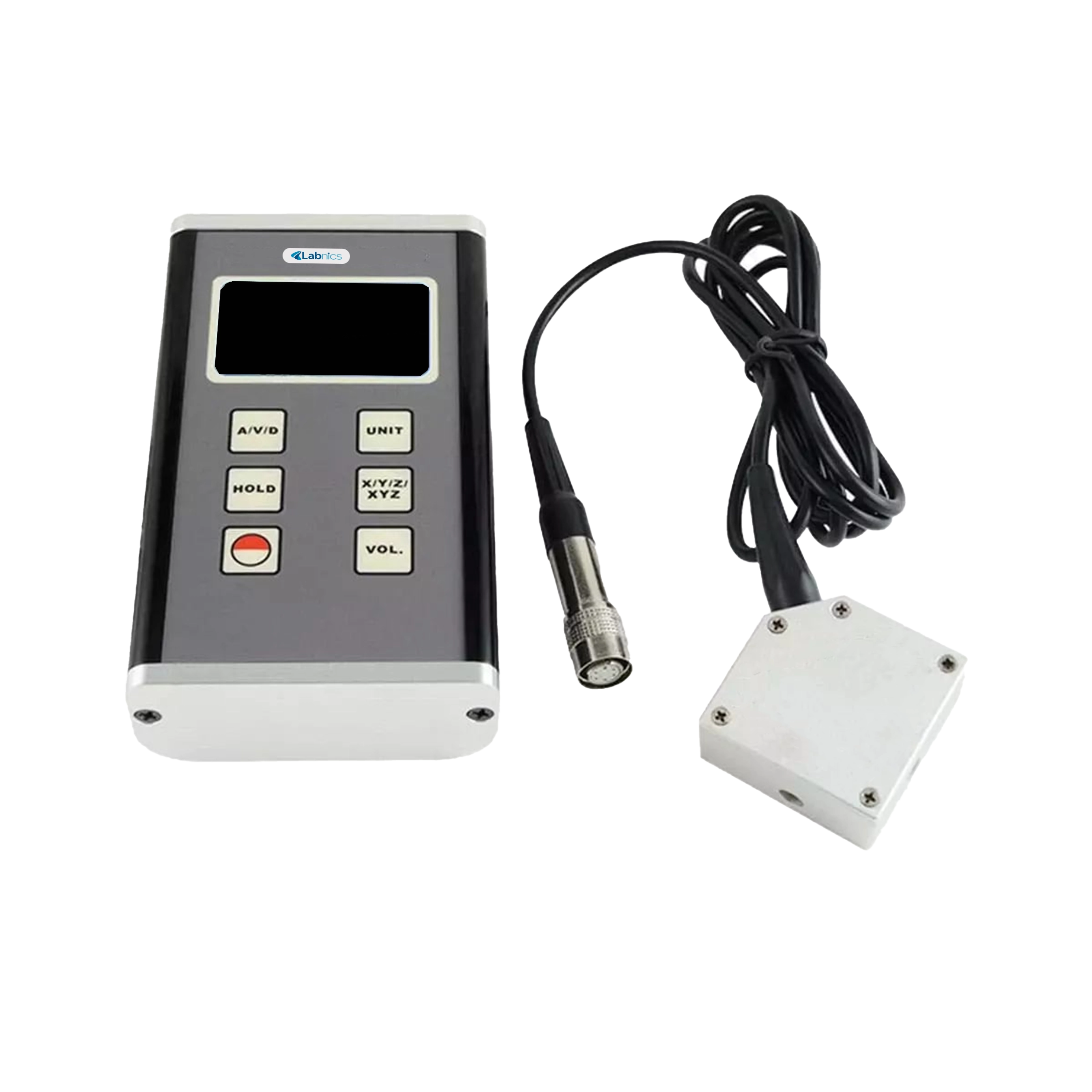

Vibration Meter NVRM-201

---

$1,575.00

Buy Now Catalog

Specifications

Sensor	3-Axis Piezoelectric Accelerometer
Accuracy	5% of reading + 2 digits
Acceleration range	0.1 to 400m/s² 0.3 to 1312 ft/s² 0.0 to 40g Equivalent peak
Velocity range	0.01 to 400mm/s 0.004 to 16.0inch/s True RMS
Displacement	0.001 to 4.0mm 0.04 to 160.0mil Equivalent peak
Frequency acceleration range	10Hz to 10kHz
Frequency velocity range	10Hz to 1kHz
Frequency displacement	10Hz to 1kHz
Temperature range	0 to 50°C
Humidity range	<90% RH
Power supply	2×1.5V AAA (UM-3) Battery
Dimension	130×76×32mm
Weight	340g (Excluding batteries)

Features

• Detects vibrations across three axes
• Easy-to-read digital display
• Optional data output via RS-232/Bluetooth
• Supports electronic stethoscope with headphones
• Robust design for durability
• Real-time vibration monitoring capability
• Compact and portable for easy handling

Applications

• Vibration Meter NVRM-201 is used to detect and analyze vibrations, helping to identify mechanical faults, imbalances, and misalignments in machinery. It is commonly used in industries such as manufacturing, maintenance, and quality control for rotating machinery and equipment.

Standard Accessories

3-Axis piezoelectric accelerometer

---

Powerful magnetic base

---

Probe (cone) & Probe (spherical)

---

Carrying case (B04)

Optional Accessories

Headset

---

RS-232C data cable with software

---

Bluetooth data adapter with software

Vibration Standard

ISO/IS2373 Motor Quality Standard According as Vibration Velocity
Quality Rank	Rev (rpm)	H:high of shaft (mm) Maximum vibration velocity rms (mm/s)
		80 < H < 132	132 < H < 225	225 < H < 400
Normal	600 to 3600	1.80	2.80	4.50
Good (R)	600 to 1800	0.71	1.12	1.80
	1800 to 3600	1.00	1.80	2.80
Excellent (S)	600 to 1800	0.45	0.71	1.12
	1800 to 3600	0.71	1.12	1.80
