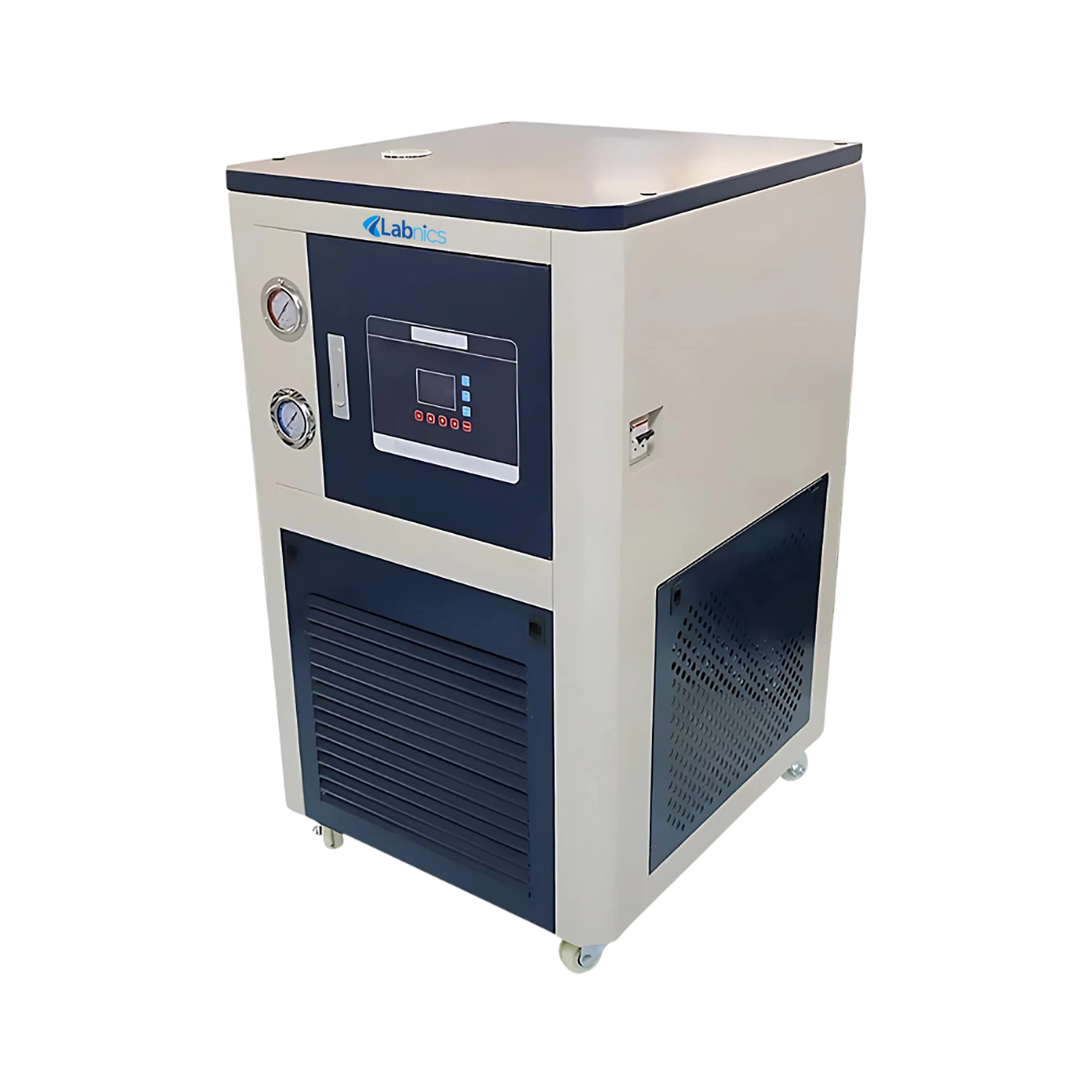

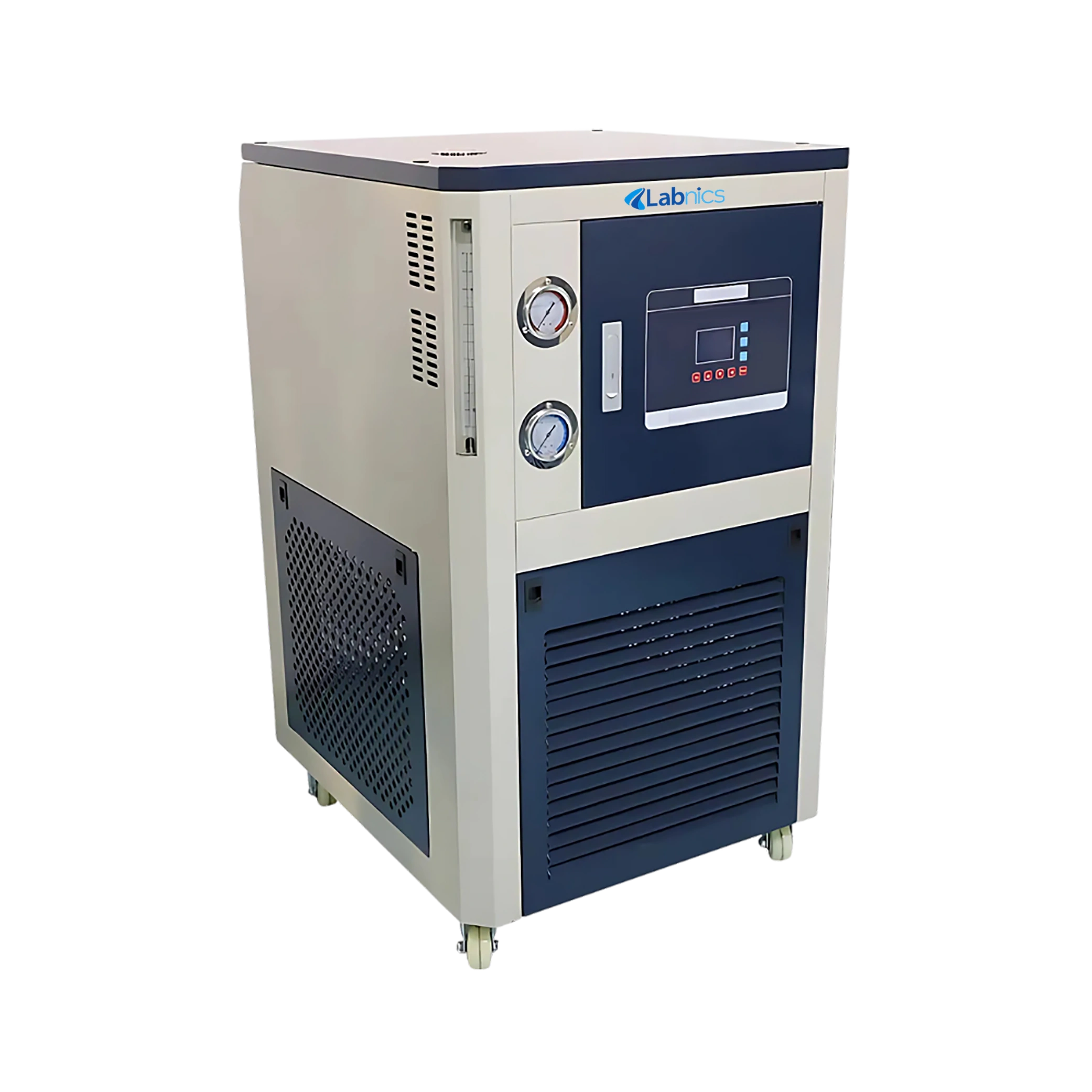

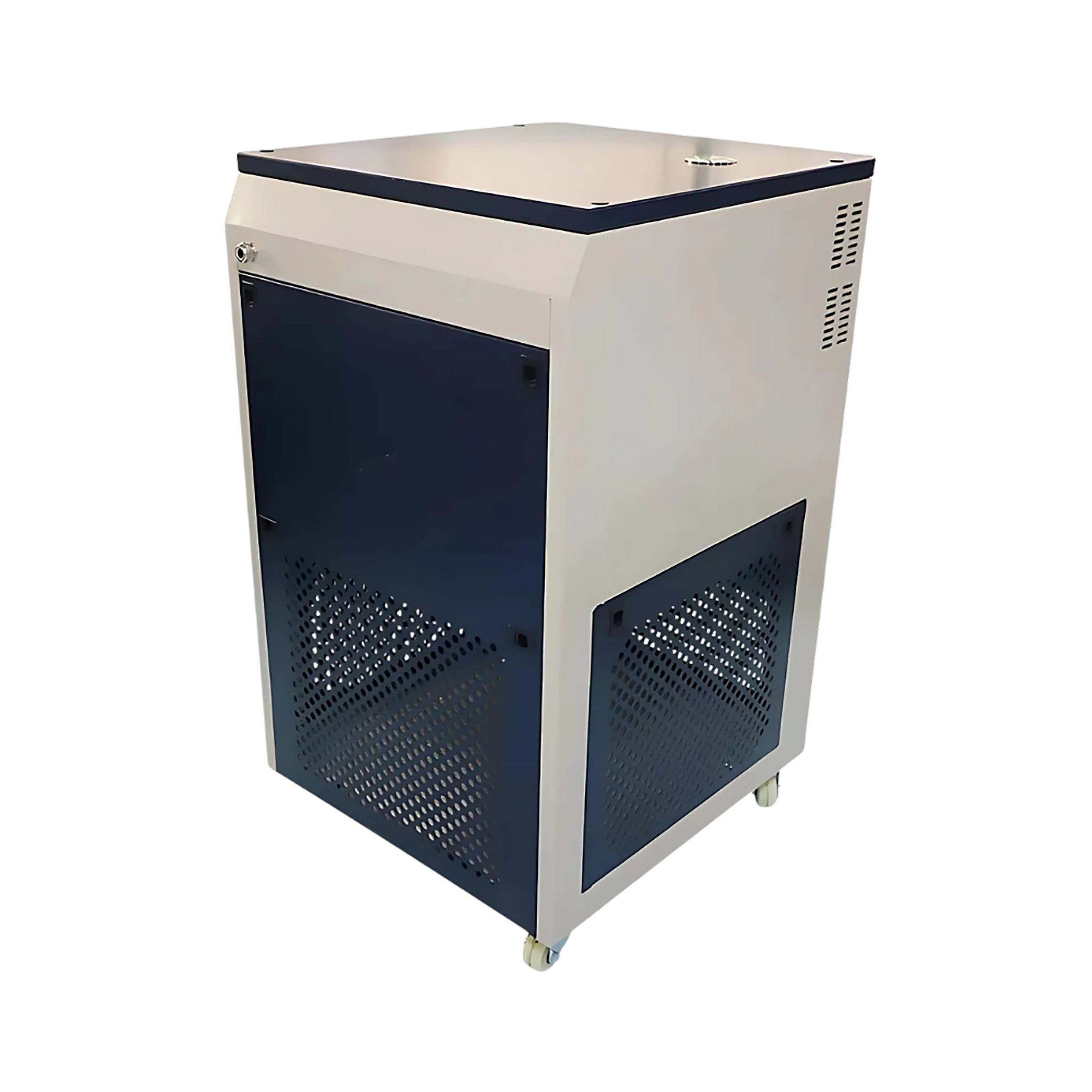

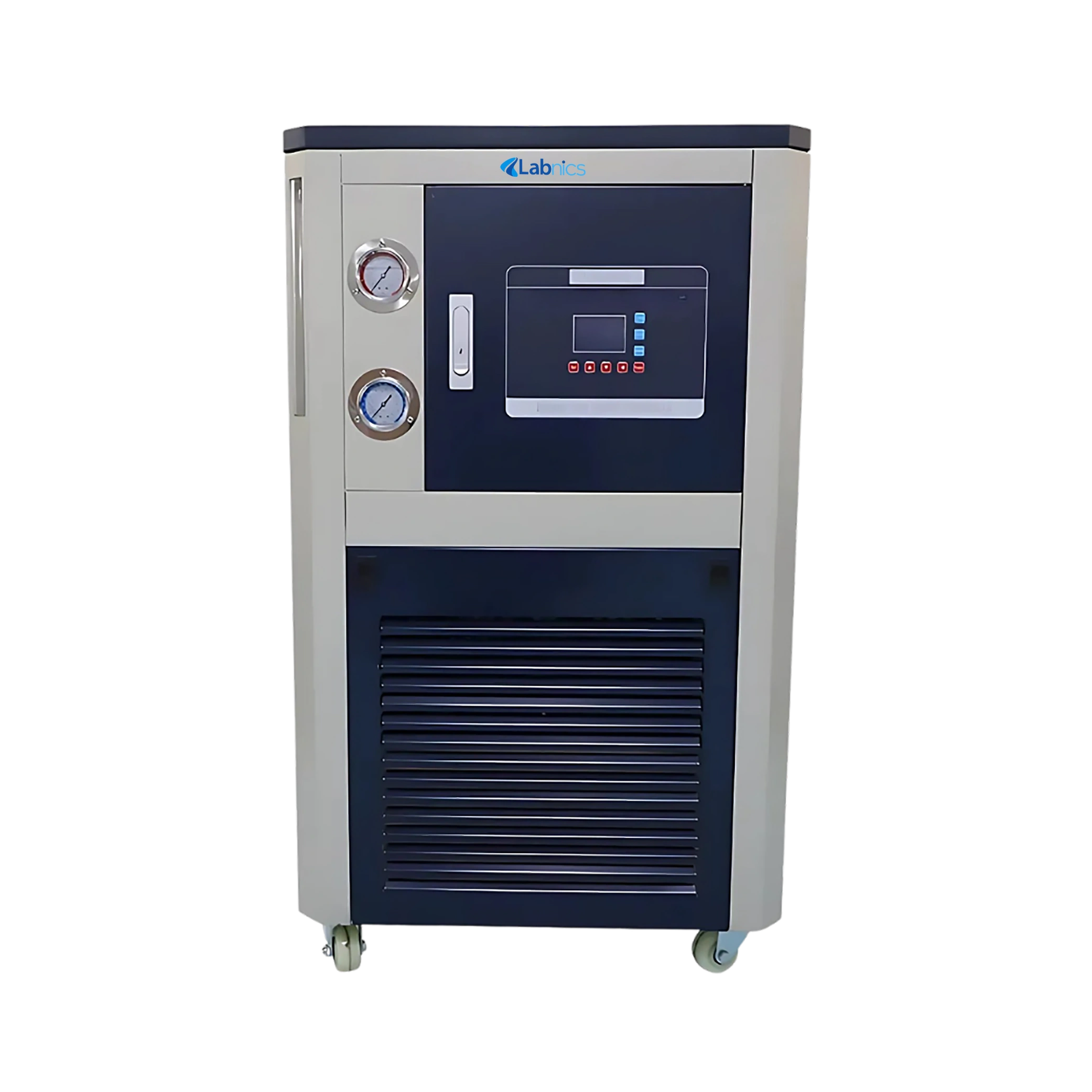

Refrigerated and Heating Circulator NRHC-501

Refrigerated and Heating Circulator NRHC-501

Refrigerated and Heating Circulator NRHC-501 offers a broad temperature control range from -40°C to 200°C. It features a generous 50-liter capacity to support high-volume thermal applications. This unit uses R22 as the refrigerant to deliver efficient cooling performance. It employs a PT100 temperature sensor to ensure accurate and reliable temperature monitoring. Our circulator is built with a corrosion-resistant cold plate spray-coated body for enhanced durability.


$7,438.00

Catalog

Specifications

Capacity 50L
Temperature range -40°C to 200°C
Ambient temperature 5 to 35°C
Temperature accuracy ±0.1°C
Temperature sensor PT100
Room humidity ≤70% ventilation
Flow 30L/min
Lifting head 15M
Pressure ≤0.4MPa
Refrigerant R22
Body material Cold plate spray anticorrosion
Compressor type Closed
Compressor quantity 1
Screen display LCD screen, key operation
Safety protection Delay, overcurrent, overheating, over-temperature, phase sequence, and phase loss protection
Compressor power 5145W
Cooling capacity 16268W
Heating power 6000W
Total power consumption 11395W
Power supply 3phase 380V/50Hz
Outer loop interface 6 points wire mouth with 6 points × 2 meters metal circulation pipe two
Circulating fluid Grade A silicone oil
Product dimension 695×720×1100 mm
Packaging dimension 800×740×1270 mm
Net weight 156 kg
Packaging weight 182 kg

Features

  • LCD screen display
  • High flow rate
  • Over-temperature protection
  • Built-in circulation pump
  • Electric heating system
  • External loop interface
  • Self-diagnosis function

Applications

  • Refrigerated and Heating Circulator NRHC-501 is used for precise temperature control in processes requiring stable heating and cooling conditions. It is commonly applied in chemical synthesis, pharmaceutical manufacturing, biotechnology, and laboratory research.

Ask Expert

FAQ for Refrigerated and Heating Circulator NRHC-501

1: What kind of safety features are included?

Our Refrigerated and Heating Circulator includes multiple safety protections such as over-temperature, overcurrent, phase loss, and compressor delay. These ensure stable and secure operation throughout the process.

2: Is the Refrigerated and Heating Circulator NRHC-501 easy to control and monitor?

Our Refrigerated and Heating Circulator comes with an LCD screen and key-based operation for simple and direct control. The display allows quick access to temperature data and system status.

3: Can the heating and cooling systems operate independently?

Yes, our Refrigerated and Heating Circulator is designed with separate refrigerating, heating, and pre-cooling systems. Each system can function independently or in combination, depending on the application requirement.

4: How should the Refrigerated and Heating Circulator NRHC-501 be cleaned?

It’s important to clean the external body with a dry or slightly damp cloth. Internally, the circulation system should be flushed with compatible cleaning fluid when changing the thermal medium or before long-term storage.

5: What should be done before long-term shutdown?

Before extended downtime, drain the circulating fluid completely, clean the system, and cover the unit to prevent dust accumulation. Store it in a dry, well-ventilated area.


Refrigerated and Heating Circulator NRHC-501

Refrigerated and Heating Circulator NRHC-501

Related Models Of Refrigerated And Heating Circulator

Labnics Refrigerated and Heating Circulators are designed to provide both cooling and heating functions for accurate temperature regulation. They use a PID controller to maintain precise stability and uniformity. These units feature a powerful pump for consistent heat distribution and efficient fluid flow. They include a user-friendly interface for easy operation and monitoring. Our circulators are equipped with advanced safety mechanisms for reliable protection.
