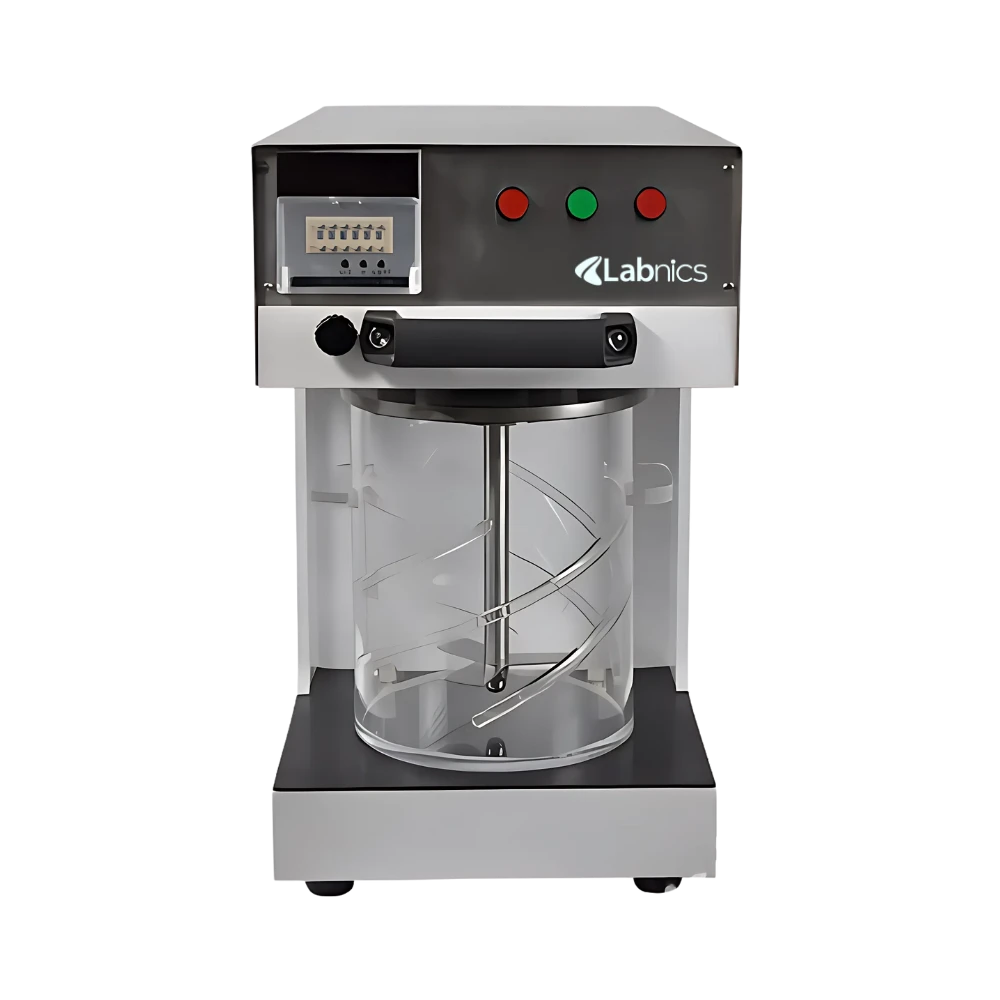

Pulp Disintegration Tester NPI-100 features a 370W motor, ensuring efficient and controlled mechanical breakdown of pulp suspensions. It has a spiral baffle design that promotes thorough mixing and avoids fiber entanglement. Our triple-blade agitator ensures uniform shear and dispersion of fibers. This precise rotational speed and low blade clearance guarantee repeatable results. Our compact footprint makes it suitable for any standard lab bench setup.
$5,438.00
Specifications
| Vessel Inner (D × H) | φ152 × 191 mm |
| Internal Baffle | Spiral baffle, 6.5 mm width × 51 mm pitch × 4 pieces |
| Agitator Blades | φ90 mm, three blades |
| Agitator Shaft Direction | Rotates clockwise from top |
| Blade Distance from Vessel Bottom | 25 mm |
| Impeller Rotation Frequency | 48.3 ± 1.65 S⁻¹ |
| Motor Power | 370W |
| Power Consumption | 400W |
| Power Supply | 220V AC |
| Dimensions (L × W × H) | 450 × 265 × 395 mm |
| Weight | 44 kg |
Features
Applications
Ask Expert
FAQ for Pulp Disintegration Tester NPI-100
1: What is the purpose of the triple-blade agitator in the Pulp Disintegration Tester NPI-100?
The triple-blade agitator ensures consistent and thorough disintegration of pulp fibers by maintaining a balanced shear force. Pulp Disintegration Tester NPI-100 enhances repeatability in fiber testing and pulp preparation.
2: Can I adjust the rotation frequency of the impeller in Pulp Disintegration Tester NPI-100?
Pulp Disintegration Tester NPI-100’s impeller operates at a fixed, precision-calibrated frequency of 48.3 ± 1.65 S?¹, optimized for standard pulp disintegration protocols. Customization may be possible through motor control adjustments.
3: What materials are used in the vessel construction of Pulp Disintegration Tester NPI-100?
Pulp Disintegration Tester NPI-100 has a internal vessel made from durable stainless steel, which is corrosion-resistant and easy to clean, making it ideal for continuous laboratory use.
4: Does the Pulp Disintegration Tester NPI-100 support both low-volume and high-volume disintegration?
Pulp Disintegration Tester NPI-100 is best suited for standard laboratory volumes. The vessel size (?152 × 191 mm) offers enough capacity for typical pulp testing batches without compromising on efficiency.
5: How does the spiral baffle improve disintegration in the Pulp Disintegration Tester NPI-100?
Pulp Disintegration Tester NPI-100 has a spiral baffle disrupts vortex formation and promotes multidirectional flow, ensuring better interaction between pulp fibers and agitator blades, resulting in faster and more even disintegration.
6: What is the primary purpose of a pulp disintegration tester?
Pulp Disintegration Tester is used to break down and uniformly disperse pulp fibers in water without cutting them, ensuring accurate testing of fiber properties and consistency.
7: Is the Pulp Disintegration Tester compliant with international standards?
Yes, most pulp disintegration testers follow TAPPI (like T205) and ISO standards, making them ideal for academic, research, and industrial labs.
8: Can pulp disintegration tester be used with different types of pulp?
Absolutely. Pulp disintegration tester accommodates various pulp types including hardwood, softwood, recycled, and specialty pulps for versatile application.
9: How is the temperature managed during the disintegration process?
Pulp disintegration testers are designed for ambient temperature operation, but some models offer optional temperature monitoring or heating features to simulate processing conditions more closely when needed.
10: Are the Pulp disintegration testers suitable for educational institutions?
Yes, due to Pulp disintegration testers' simple operation, standard compliance, and safety, it's frequently used in universities and technical labs for training and practical learning.
