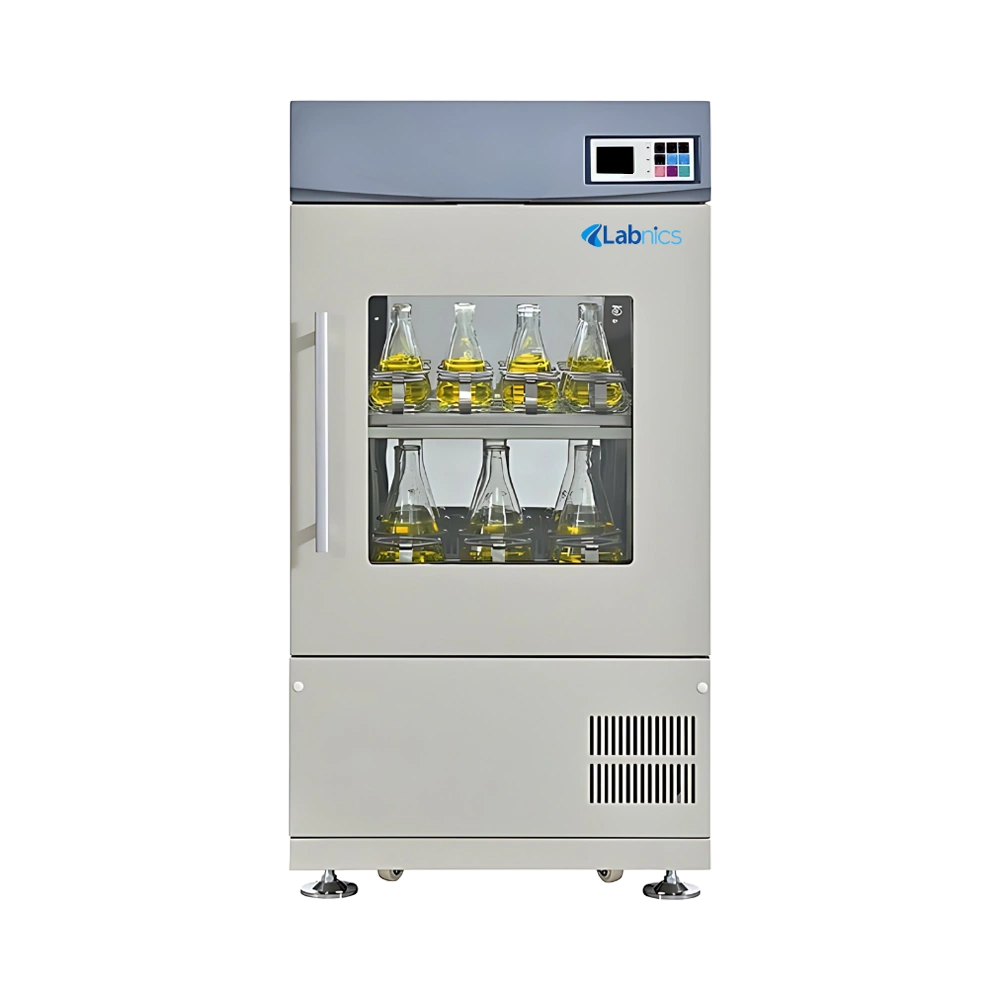

Vertical Shaker Incubator NVSI-200 is designed with a front-opening door for convenient chamber access. It has a spacious 180-liter capacity that accommodates a wide range of vessels. This unit ensures sample safety with an integrated UV sterilization system. It is equipped with a large LCD that offers clear visibility and simple control of operating parameters. Our incubator incorporates advanced safety mechanisms to protect both users and samples.
| Door opening method | Front-opening door |
| Capacity | 180 liters |
| Internal usable height | 255mm (layer 1 to 2)295mm (layer 2 to top) |
| Maximum loading capacity | 1000ml×14500ml×24250ml×32100ml×54,50ml×78 |
| No. of trays | 2 |
| Temperature range | 4 to 60°C (Ambient temperature-15°C, minimum 4°C ) |
| Temperature accuracy | ±0.1°C |
| Temperature uniformity | ≤±1.0°C at 37°C |
| Ambient temperature range | 5 to 35°C |
| Temperature editing | Repeat/Pace/8-segment curve editing |
| Rotation way | Rotary switchable |
| Rotation speed | 30 to 300 rpm |
| Rotation accuracy | ±1 rpm |
| Throw | 25 mm |
| Timing range | 0 to 999.59H |
| Display | LCD |
| Control | P.I.D microcomputer |
| Circulation | Forced circulation convection |
| Drive mode | Single-axis balanced drive |
| Tray material/Flask clamp/Chamber material | Stainless steel type 304 |
| Decontamination method | UV sterilization |
| Illumination lamp/ UV lamp | 8W |
| Bearings | Original imported double row bearings |
| Compressor | Variable frequency compressor |
| Clamp types | Stainless steel flask clamp, plastic clamp, spring, test tube rack, sticky plate, ELISA plate, etc |
| Heating power | 600W |
| Cooling power | 334W |
| Motor power | 130W |
| Whole machine power | 1166W |
| Power supply | 220V±10%, 50/60Hz |
| Tray size | 485×348mm |
| Internal dimension | 600×440×680mm |
| External dimension | 700×580×1340mm |
| Net weight | 196 kg |
Vertical Shaker Incubator NVSI-200 is used for precise shaking incubation, ensuring controlled temperature, uniform mixing, and safe cultivation of biological samples. It is widely applied in research laboratories, biotechnology facilities, pharmaceutical development, and academic institutions.
