Product Data Sheet · Laboratory Equipment

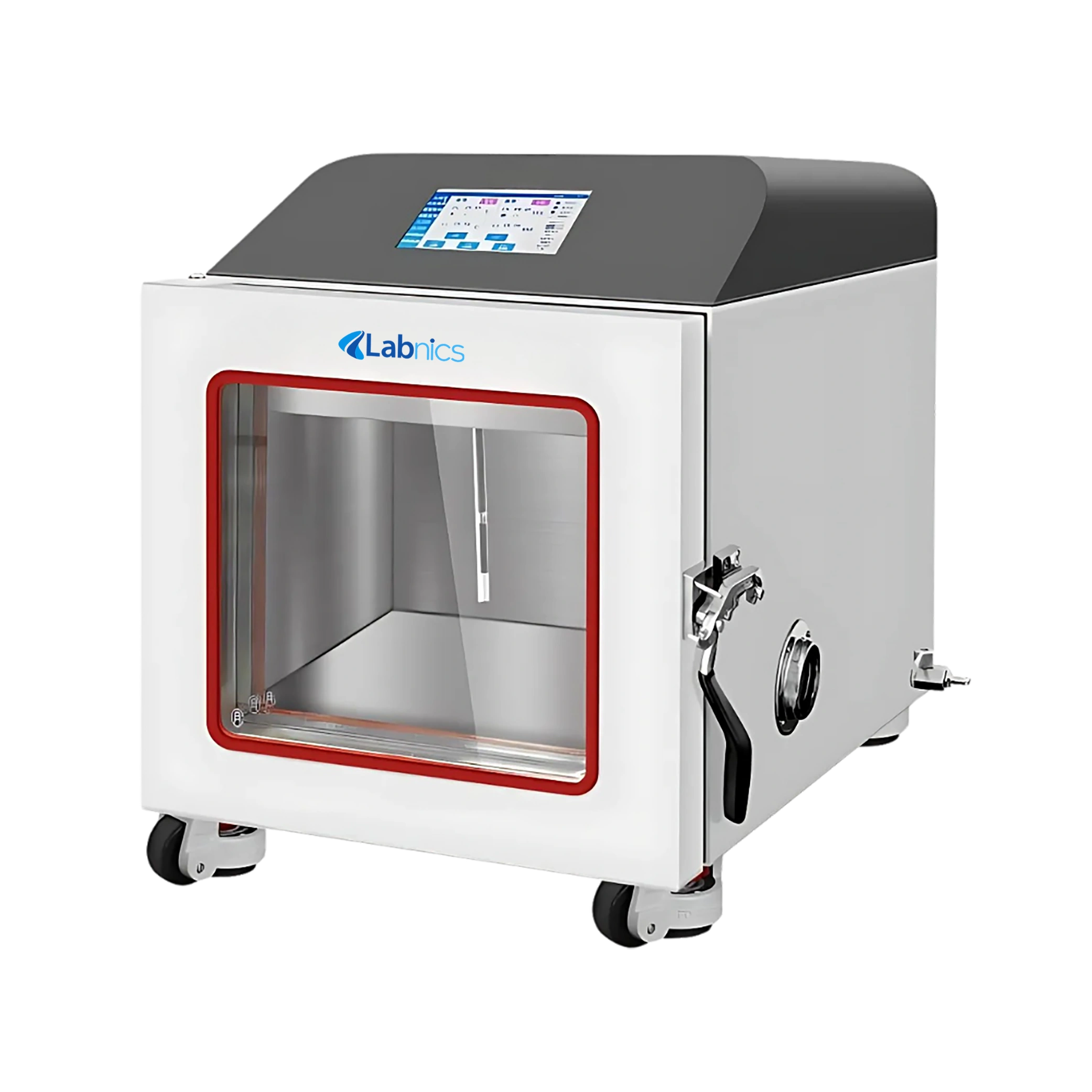

Temperature and Humidity Test Chamber NTHC-500 is compact and efficient, it runs on 220V, 50Hz with power consumption under 1 kW. It offers high resolution of 0.01℃ / 0.01% RH with excellent stability and uniformity. This features a precise temperature of 5–50℃ and humidity of 10–90% RH control. It offers high resolution of 0.01℃ / 0.01% RH with excellent stability and uniformity. This seven-inch touchscreen and privacy observation window ensure easy monitoring.
| Chamber Volume | 28L |
|---|---|
| Temperature Resolution | 0.01℃ |
| Humidity Resolution | 0.01% RH |
| Temperature Range | 5℃ to 50℃ |
| Temperature Fluctuation | ≤±0.2℃ (at 15℃, 20℃, 30℃) |
| Temperature Uniformity | ≤0.3℃ (at 15℃, 20℃, 30℃) |
| Humidity Range | Aprrox.10% RH to 90% RH (at 20℃) |
| Humidity Fluctuation | ≤±0.8% RH (at 20℃) |
| Humidity Uniformity | ≤1% RH (at 20℃) |
| Display | 7-inch touchscreen |
| Observation Window | Privacy and panoramic view |
| Test Holes | 2 holes (φ50 mm) |
| Power Consumption | <1 kW |
| Dimension (L×B×H) | 500 × 670 × 600 mm |
| Packaging Dimension (L×B×H) | 860 × 540 × 790 mm |
| Net Weight | 48 kg |
| Gross Weight | 98 kg |
