Product Data Sheet · Laboratory Equipment

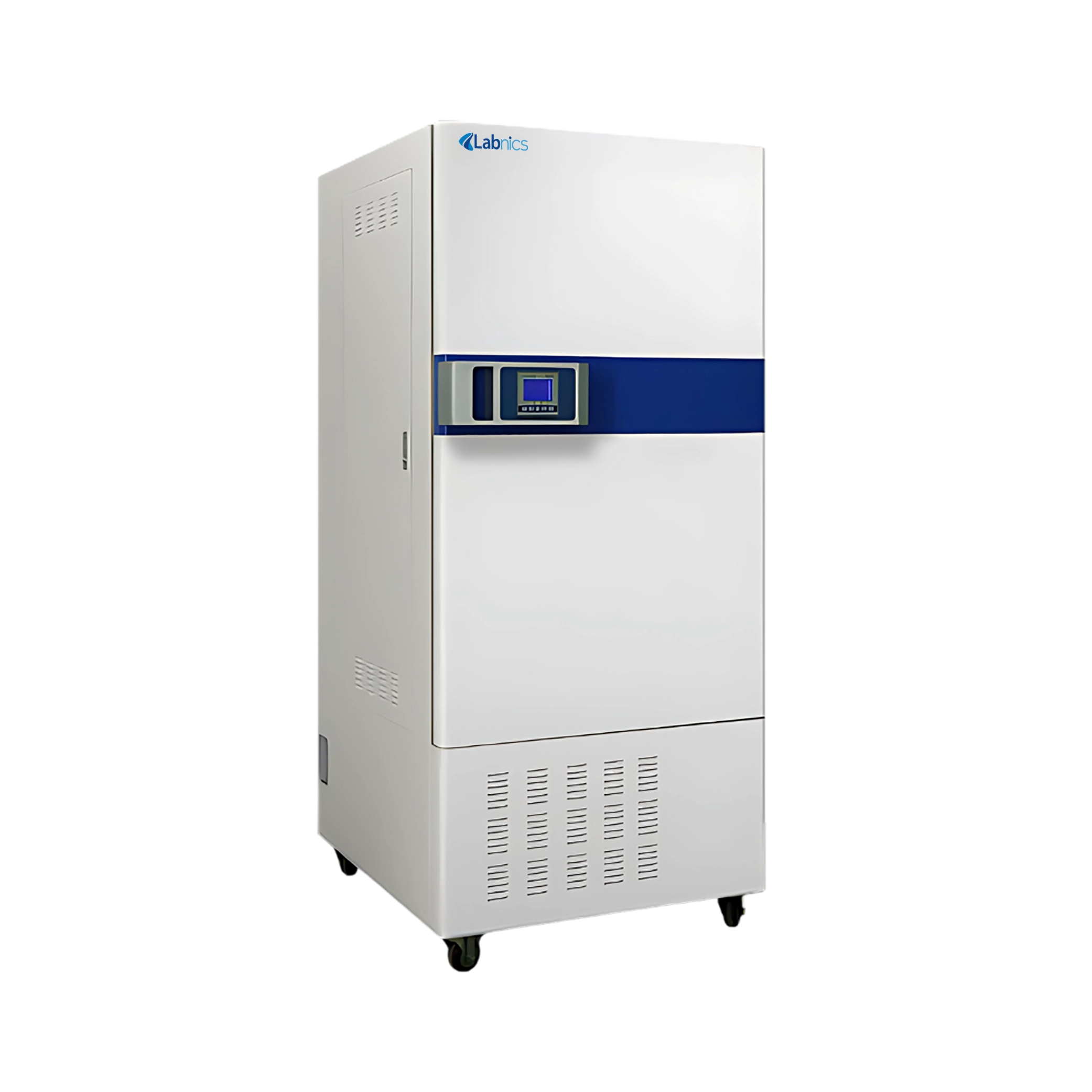

Strong Illumination Test Chamber NSLTC-202 is designed with a capacity of 400L to accommodate various testing needs. It offers an illumination range from 0 to 15,000 Lux, adjustable in five stages. This unit functions reliably between 10 and 30°C with humidity under 70%. It uses forced convection for even air circulation and temperature control. Our chamber includes a digital display panel for seamless monitoring and operation.
| Capacity | 400L |
|---|---|
| Temperature range | With illumination 10 to 65°C With no illumination 0 to 60°C |
| Temperature uniformity (10 to 40°C) | ±1℃ |
| Temperature fluctuation (10 to 40°C) | ±1℃ |
| Temperature accuracy | ±0.1℃ |
| Illumination range | 0 to 15000 Lux (Five-stage adjustable) |
| Operating temperature | 10 to 30°C |
| Operating humidity | <70% |
| Timing range | 0 to 99 hours, 0 to 9999 mins |
| Internal material | Stainless steel |
| Insulation material | Imported environmental protection type materials |
| Convection mode | Forced convection |
| Control System | 30-stage microprocessor PID controller |
| Power consumption | 1550W |
| Power supply | AC220V/50Hz |
| Internal dimension | 1148×554×610mm |
| External dimension | 1828×783×905mm |
| Shipping dimension | 2017×880×1060mm |
| Net weight | 194 kg |
| Shipping weight | 214 kg |
Portable printer
LCD touch screen controller
Power supply interface
Software
