Product Data Sheet · Laboratory Equipment

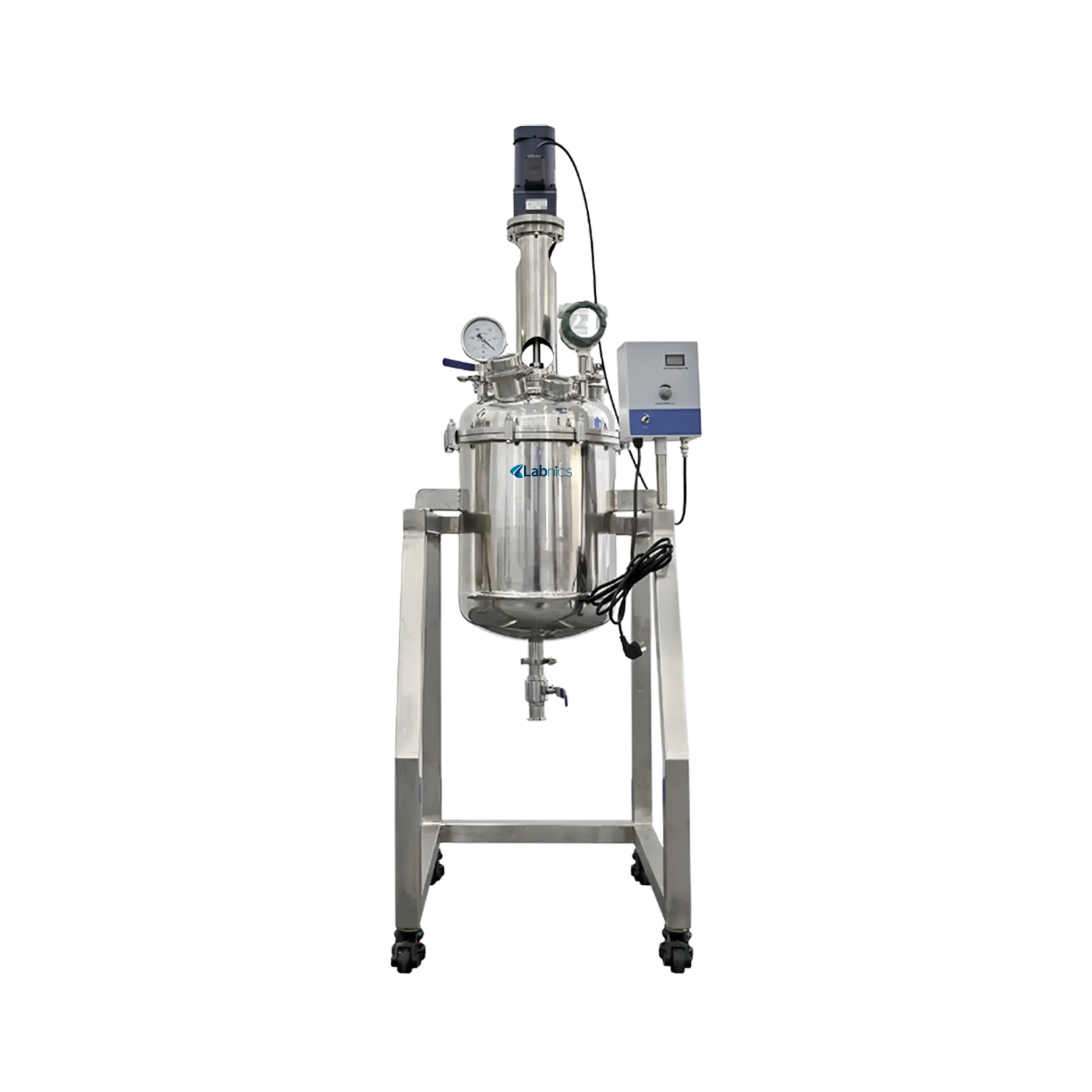

Stainless Steel Reactor NSRT-103 provides a 50-liter capacity, ideal for both laboratory and industrial use. It offers a 200 to 1000 rpm speed range, powered by a high-efficiency stirring motor. This unit features a 0.5 m² reflux condenser for optimal condensation and thermal control. It includes a multifunctional lid opening for easy cleaning. Our reactor employs a mechanical seal to ensure a stable and contamination-free vacuum environment.
| Capacity | 50L |
|---|---|
| Working pressure | -0.1 to 0.1 MPa |
| Temperature in kettle | -20°C to 200°C |
| Reflux condenser heat exchange area | 0.5 m² |
| Speed range | 200 to 1000 rpm |
| Sealing form | Mechanical sealing |
| Material | S30408 |
| Reflux condenser material | S30408 |
| Stirring motor power consumption | 370 W |
| Power supply | 220V, 1P |
| Dimension | 850×850×2250mm |
| Weight | 200kg |
