Product Data Sheet · Laboratory Equipment

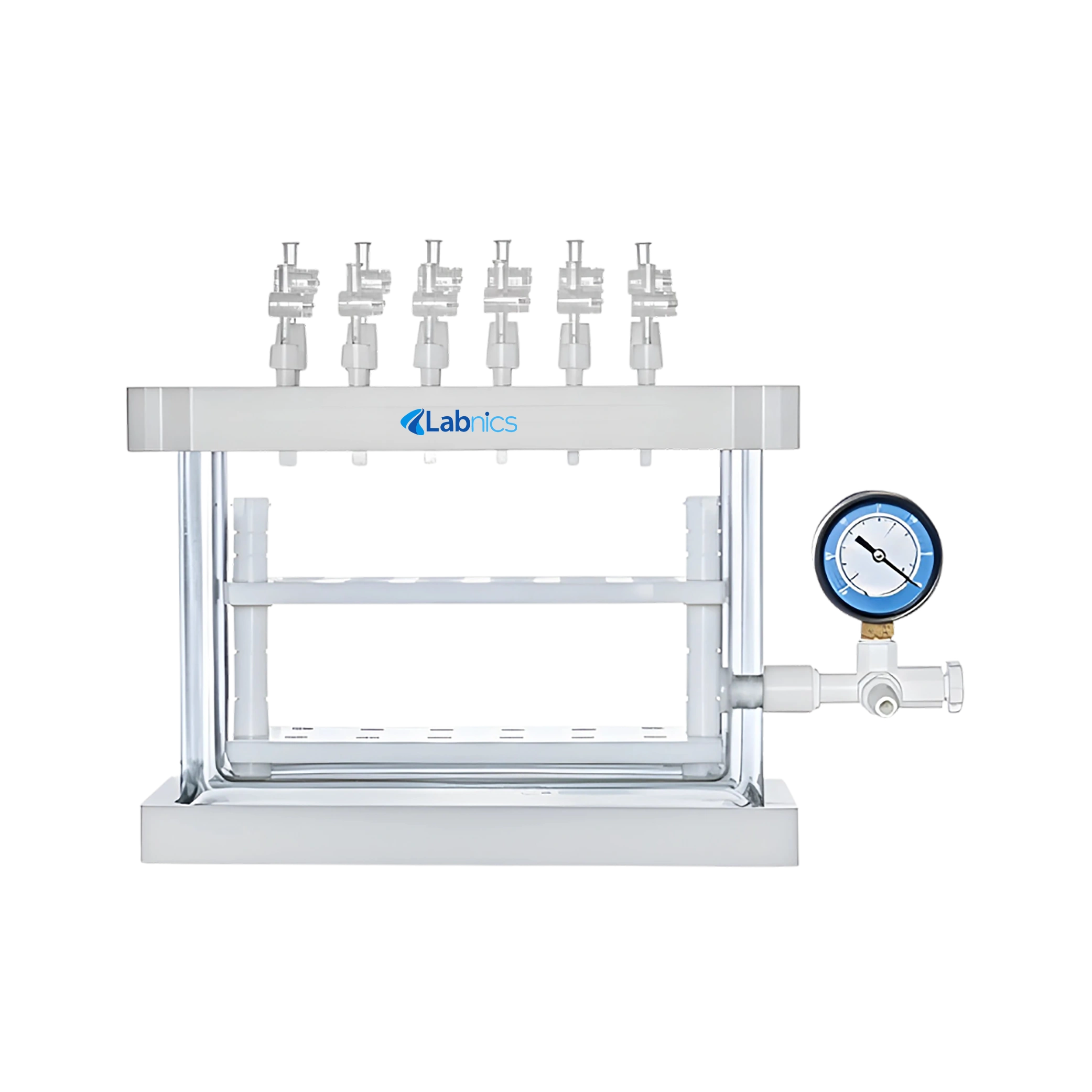

SPE Vacuum Manifold System NMFP-101 provides pressure resistance of -80 Kpa with a stable operating range from 0 to 80 Kpa. It has an adjustable test tube rack for handling tubes of different sizes and capacities. This unit includes clear pressure gauges for convenient observation. It supports a large collector and a rapid drying unit for efficient batch processing. Our vacuum manifold system has a sealed lid with a fixed bracket for secure operation.
| Number of Ports | 12 |
|---|---|
| Lid Material | Polyoxymethylene |
| Vacuum Chamber Material | Quartz |
| Pressure Resistance | -80 Kpa |
| Stable Pressure Range | 0 to 80 Kpa |
| Test Tubes | < 105 mm, Ф10/Ф13/Ф15 |
| Packaging Dimensions | 2 cartons (49 × 21× 30 cm, 40 × 28 × 29 cm) |
| Gross Weight | 4.3 kg, 4.9 kg |
Oil-free vacuum pump (0.08 MPa, 55 W, 5 to 30 L/min, 220 V/50 Hz)
SPE Cartridge (40 µm, 300 Å, 200 mg/6 mL) × 30 pcs
SPE Cartridge (40 to 60 µm, 120 Å, 500 mg/6 mL) × 30 pcs
SPE Cartridge (40 µm, 60 Å, 200 mg/6 mL) × 30 pcs
SPE Cartridge (40 to 75 µm, 100 Å, 500 mg/6 mL) × 30 pcs
