Product Data Sheet · Laboratory Equipment

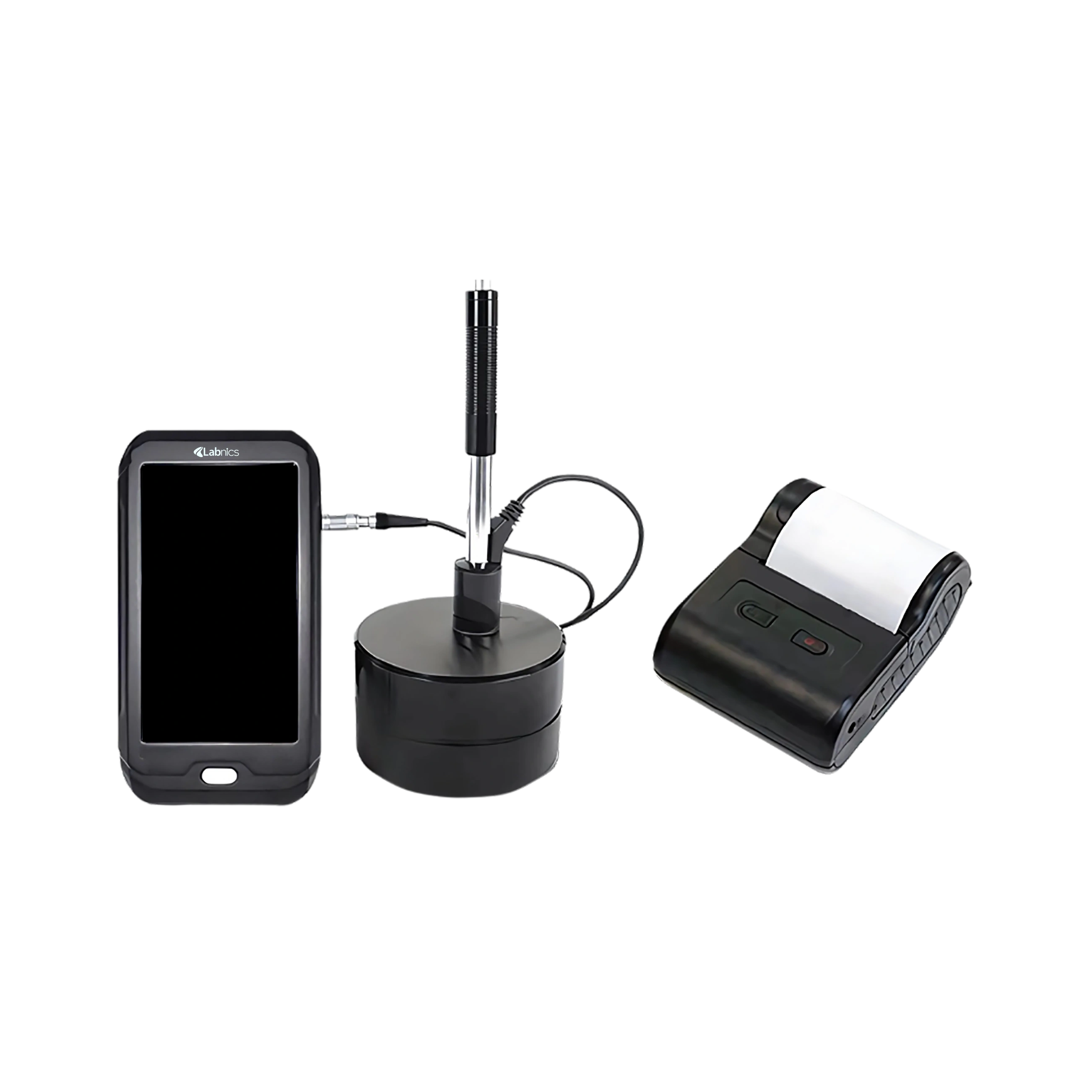

Portable Hardness Tester NPHT-102 offers a wide measuring range of 170 to 960 HLD with support for multiple hardness scales. It has 360° measurement capability allowing hardness testing from any direction. Our interface enables seamless data transfer and integration with external devices. This has a fast charging time ensuring long-lasting performance. It provides user-friendly operation for smooth and reliable performance.
| Measuring Range | (170 to 960) HLD, (17 to 68.5) HRC, (19 to 651) HB, (80 to 976) HV, (30 to 100) HS, (59 to 85) HRA, (13 to 100) HRB |
|---|---|
| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Measuring Direction | 360° |
| Interface | RS232 |
| Tolerance | ±6 HLD (when HLD = 760 ± 30) |
| Repeatability | 6 HLD (when HLD = 760 ± 30) |
| Charging Time | 2 hours |
| Operating Temperature | 0 °C to 40 °C |
| Power Consumption | 5.18 W |
| Power Supply | 1400 mAh, 3.7 V |
| Dimensions (L × W × H) | 330 × 330 × 150 mm |
| Weight | 5.5 Kg |
Impact device type D × 1 Pc
Test block HLD × 1 Pc
Charger × 1 Pc
Cleaning brush × 1 Pc
Table support for main unit × 1 Pc
Connecting cable × 1 Pc
