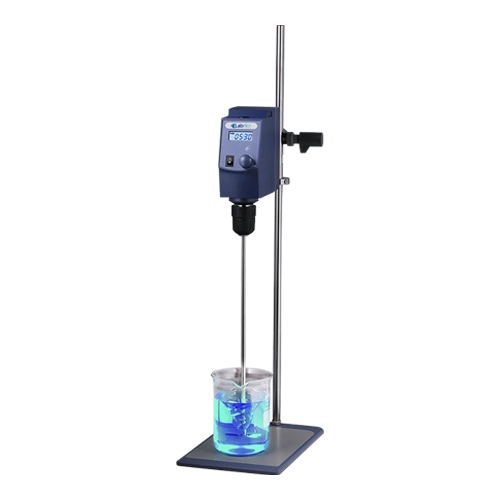

Overhead Stirrer NOHS-100 is an overhead, motor-driven agitation equipment designed for emulsification or homogenization of a compound mixture. It is equipped with a unique shaft stirrer design that helps in the mixing of viscous liquid mixtures with high shear stress. The microprocessor-controlled system ensures safe operation during voltage fluctuations and regulates the speed at desired levels.
| Stirring capacity | 20L |
| Motor input power | 60W |
| Motor output power | 50W |
| Stir speed | 50-2200rpm |
| Stir speed accuracy | ±3rpm |
| Permissible Ambient Temperature | 5-40°C, 80%RH |
| Maximum viscosity | 10000mPas |
| Voltage | 100V-240V, 50/60 Hz |
| Power | 70W |
| Max. torque | 40Ncm |
| Display | LED |
| Interface | RS232 |
| Overall dimensions (L×W×H) | 83 × 220 × 186 mm |
| Weight | 2.8 kg |
It is widely used essential laboratory equipment in areas like Analytical and Organic Chemical laboratories and industries such as petroleum, paint, medicine, environment protection, biochemistry, education and scientific research etc.
