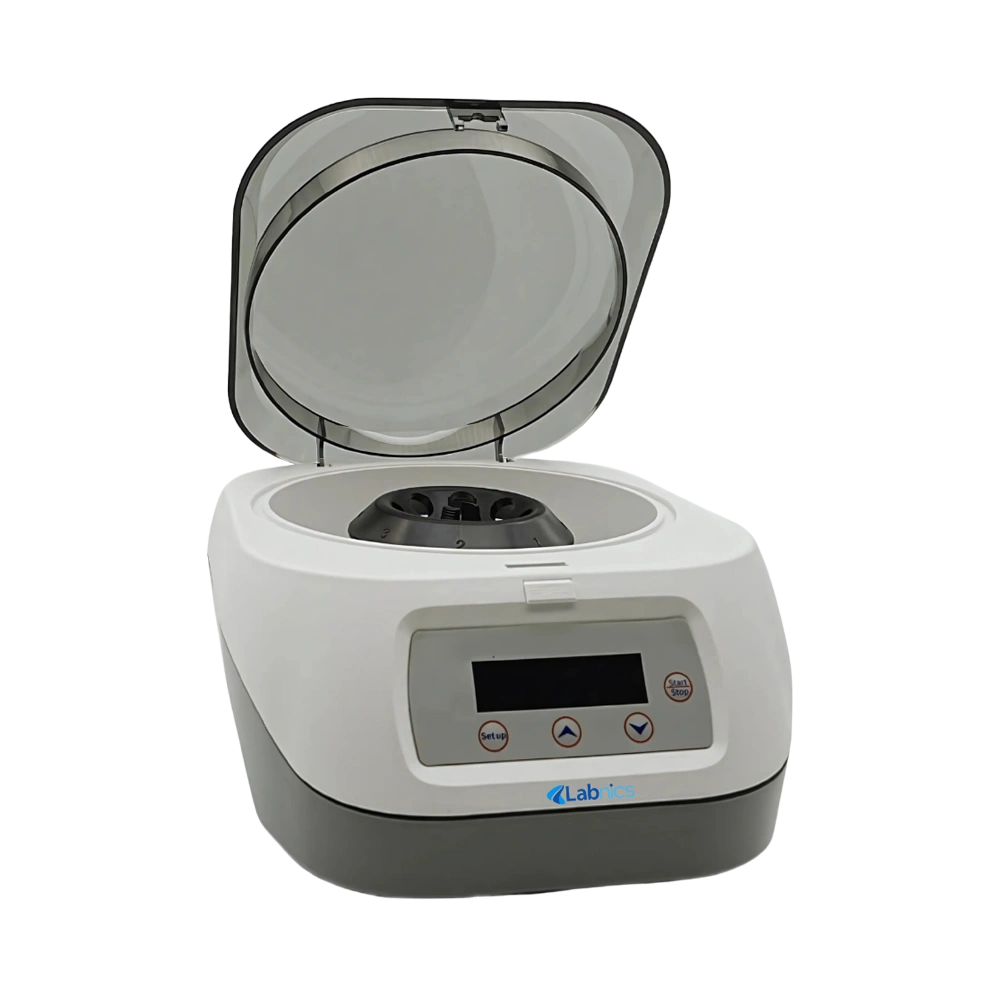

Laboratory Mini Centrifuge NLMC-401 provides a speed increment of 500 RPM and maintains a noise level of ≤ 60 dB(A). It is equipped with a DC permanent magnet motor for reliable and stable performance. Our centrifuge has a high-strength housing for added protection and structural integrity. It includes a 360° rotation chamber for smooth and efficient operation. This unit offers minimal wind resistance for quiet and effective performance.
| Maximum Speed | 1000 to 12000 RPM ± 5% |
| Maximum RCF | 9650 × g |
| Speed Increment | 500 RPM |
| Noise Level | ≤ 60 dB(A) |
| Acceleration Time | ≤ 8 seconds |
| Deceleration Time | ≤ 10 seconds |
| Time Range | 1 to 99 minutes and 1 to 59 seconds |
| Temperature Range | +5°C to +40°C |
| Relative Humidity | ≤ 80% |
| Protection Class | IP21 |
| Compliance Standards | EN 61010-1, EN 61010-2, EN 61326-1, EN 61010-3-2/A2 |
| Motor Type | DC 24V permanent magnet motor |
| Control Mode | St16-bit MCU/PWM/ speed regulation |
| Power Fuse | PPTC self-restoring fuse |
| Power Consumption | 30 W |
| Power Supply | AC100 to 240V, 50/60Hz |
| Dimensions | 192 × 222 × 115 mm |
| Weight | 1.85 kg |
Our Laboratory Mini Centrifuge is mainly used for rapid spin-downs, microfiltration, and sample separation of small-volume liquids in research, clinical, and diagnostic laboratories.
| Rotor No. | Maximum Capacity | Maximum Speed (RPM) | Maximum RCF (× g) |
| Angle Rotor 1 | 1.5/2 ml × 12 hole + 0.2 ml × 8 hole × 4 | 12000 RPM | 9500 × g |
| Angle Rotor 2 | 0.2 ml × 12 hole × 4 row | 12000 RPM | 5960 × g |
| Angle Rotor 3 | 5 ml × 4 hole | 12000 RPM | 9650 × g |
| Angle Rotor 4 | 5/1.8/1.1 ml × 4 hole | 7000 RPM | 3180 × g |
| Capillary Angle Rotor | 20 µl × 4 hole | 12000 RPM | 8371 × g |
| Adapter No. | Capacity (mL) |
| Adapter 1 | 0.5 ml |
| Adapter 2 | 0.2 ml |
| Adapter 2 | 1.1/1.8 ml |
