Product Data Sheet · Laboratory Equipment

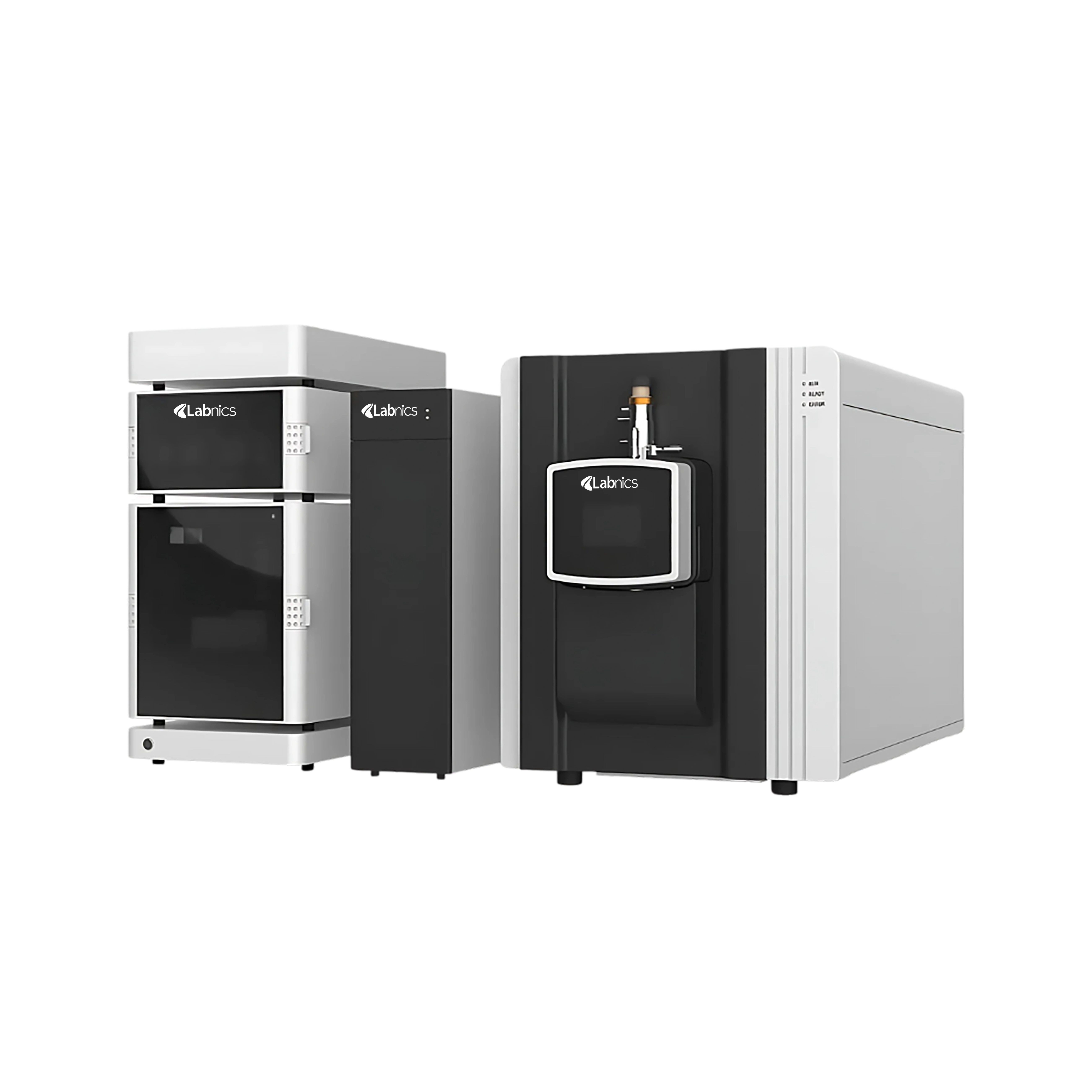

Liquid Chromatograph Mass Spectrometer NLMS-101 features an ultra-high-pressure gradient pump system for precise solvent delivery. It comes with a column oven that controls temperatures from RT +5 °C to 90 °C. Our unit houses up to six chromatographic columns, each measuring 250 mm in length. It uses a triple quadrupole mass analyzer built with high-precision molybdenum. This system enables real-time status monitoring for continuous performance tracking.
| Working temperature range | 18 to 25 °C |
|---|---|
| Working humidity range | 20 to 60%RH |
| Gradient pump | Dual solvent lines (A/B or C/D) with solvent selection valve Vacuum degasser for each pump line (A/B) |
| Gradient pump flow rate | 1 to 4000 µL/min |
| Gradient pump flow rate accuracy | ≤1% |
| Gradient pump flow rate precision | ≤0.075% RSD |
| Gradient pump max pressure | ≥18,850 psi |
| Automatic sample injection mode | Full loop, Partial loop, Microliter pickup |
| Automatic sample injection repeatability | Full/Partial <0.3% RSD; Microliter <1.0% RSD |
| Cross contamination | <0.05% |
| Max sample capacity | 384 vials; Standard: 96 vials |
| Column oven temperature range | RT +5 °C to 90 °C |
| Column oven temperature mode | Flow phase preheating + forced air circulation |
| Column oven capacity | 6 × 250 mm columns |
| Ion source | Orthogonal vertical spray Anti-contamination, Low noise Nitrogen gas: Atomizing (0 to 2 L/min), Desolvation (0 to 15 L/min) |
| Vacuum interface | Blowback gas: Nitrogen, 0 to 5 L/min 4-stage differential vacuum system |
| Ion transmission system | Multi-quadrupole focusing |
| Mass analyzer type | Triple quadrupole |
| Quadrupole material | High-purity Molybdenum |
| Collision cell | Axial acceleration, Nitrogen gas (≥99.999%) |
| Mass stability | <0.1 amu over 24 hours |
| Scanning speed | ≥20,000 amu/s |
| Mrm channels | 300/s |
| Mass range | 5 to 1000 amu |
| Scan modes | Full Scan, SIM, Product/Precursor Ion, Neutral Loss, MRM, Polarity Switch |
| Vacuum system | Mechanical + turbo molecular pump |
| Operating system | Windows XP or above |
| Control functions | Full control of LC and MS systems |
| Data handling | Built-in data processing, reporting, and quantification |
| Database | Spectrum database creation and retrieval |
| Power supply | Five sets of single-phase AC(220 ± 20) V, 10A, 50 Hz |
| Product dimension | 1000×700 ×600mm |
| Packing dimension | 1400×680×920mm 1570×970×1020mm 810×700×790mm |
| Net weight | 120 kg |
| Gross weight | 428 kg |
Nitrogen generator-NG-200 membrane separation type
Nitrogen generator maintenance kit
European standard adapter plug & 2500W & 10A & 250V & 50×40×43mm & blister/with switch
European standard three-core power cord & length 2m (4stick)
MS accessory kit (overseas version)
LC accessory kit (overseas version)
Vacuum mechanical pump EMP 70
Flow injection pump
Liquid phase ultra-high pressure infusion pump (spark)
Liquid waste module
Solvent tray
