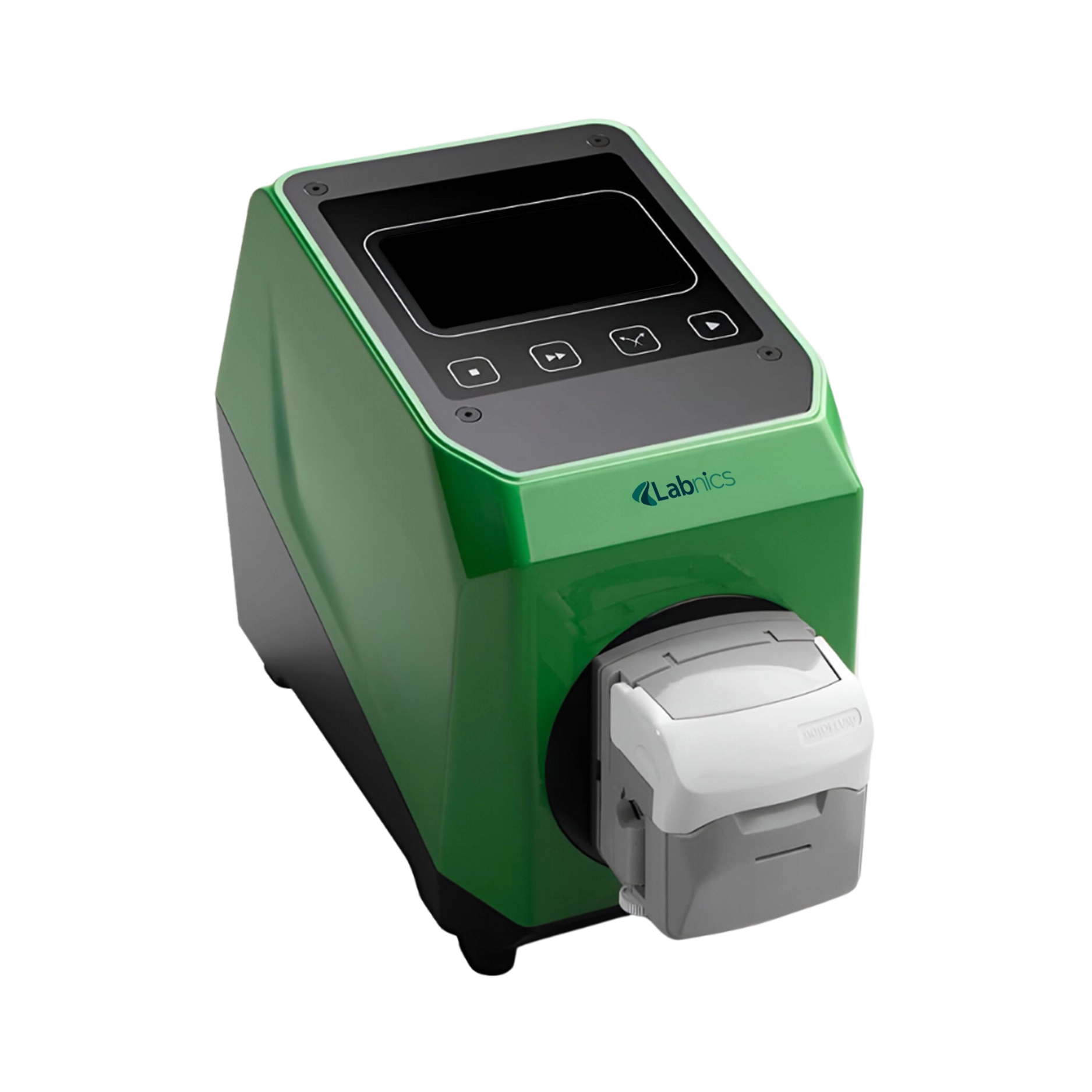

Intelligent Flow Peristaltic Pump NIFPP-502 has a dispensing volume ranging from 0.1 mL up to 9999 L, with dispensing times from 0.1 seconds to 9999 hours. It offers automatic calibration for improved accuracy and ease of use. This pump features an aluminium alloy body with efficient heat dissipation. It complies with GMP certification for controlled processes. Our unit supports multi-control compatibility for flexible remote operation.
| Flow Range | 0.0079 to 3027.97 mL/min |
| Speed Range | 0.1 to 600 RPM |
| Speed Resolution | 0.01 RPM |
| Dispensing Volume | 0.1mL to 9999 L |
| Dispensing Time | 0.1s to 9999 h |
| Pause Time | 0.5s to 9999 h |
| Repeat Number | 1 to 9999 times |
| Motor type | stepper motor |
| Display | 4.3-inch industrial grade |
| Temperature Range | 0 to 40°C |
| Relative Humidity | |
| Working Mode | Transferring mode and dispensing mode |
| Transferring Mode | Continuous operation at set flow rate and speed |
| Dispensing Mode | Dispensing: set volume, time, repeat numbers, pause time Dispensing: set volume, flow rate, repeat numbers, pause time Speed dispensing: set speed (RPM), time, repeat numbers, pause time |
| Control Method | Touch screen, Mechanical keypad, External control signal control, Communication control |
| Back Suction Angle | 0 to 360° |
| Output Interface | Output motor working status (open-collector output) |
| Communication Interface | RS485 support MODBUS protocol (RTU mode) |
| EMC Standard | TEC 61000-6-2/IEC 61000-6-4/IEC 61000-3-2/IEC 61000-3-3 |
| IP Rate | IP66 |
| External Control | 0 to 5 V, 0 to 10 V, 4 to 20 mA (option) |
| External Control Signal Input | 5V to 24V active control, Passive switch control (start/stop) |
| Signal Output | Open collector output operation status; 4 to 20mA output |
| Power Consumption | 110 W |
| Power Supply | AC 110 to 220V±10%, 50Hz/60Hz |
| Dimension | 274 × 160 × 221 mm |
| Weight | 6.2 Kg |
Our Intelligent Flow Peristaltic Pump is suitable for pharmaceutical, cell culture, mining, environmental monitoring, water treatment, and chemical industry applications, providing accurate and reliable fluid handling.
Silicone tubing (2 meters)
Operation manual × 1 pc
Power cable × 1 pc
