Product Data Sheet · Laboratory Equipment

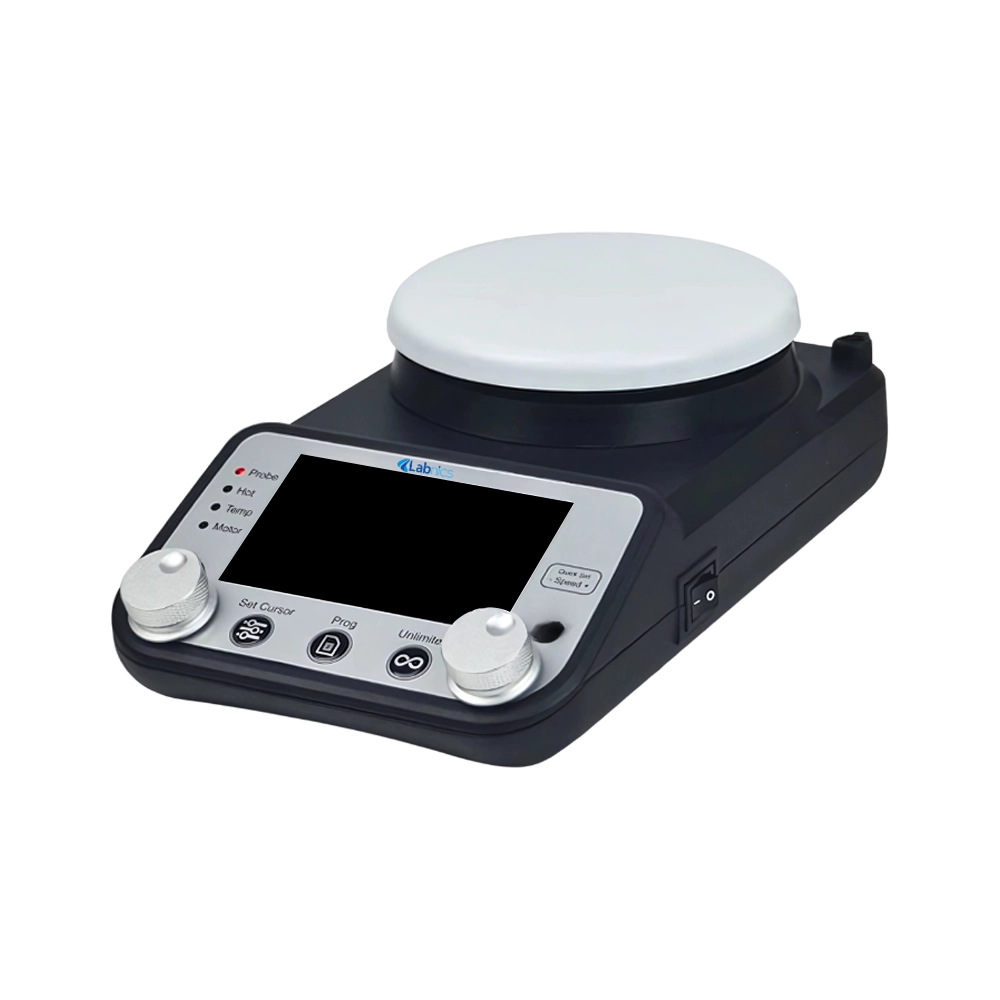

Hotplate Magnetic Stirrer NHMS-400 offers a wide speed range from 80 to 1800 rpm to accommodate various stirring needs. It supports a single stirring point with a capacity ranging from 50 mL to 20 L. This unit features PID temperature control to deliver high precision for stable operation. It is designed with a 30° inclined control panel to ensure optimal visibility. Our stirrer includes a 4.3-inch color screen with a holographic display to provide clear and intuitive monitoring.
| Speed range | 80 to 1800 rpm |
|---|---|
| Temperature range | RT+5°C to 340°C |
| Temperature setting range | 30°C to 340°C |
| Temperature stability | ±3°C |
| Time range | 1 min to 99 hours 59 min |
| Stirring point quantity | 1 |
| Stirring capacity | 50 ml to 20L |
| Maximum size of the stirrer stick | 80mm |
| Platform size | Φ137mm |
| Platform material | Enamel |
| Temperature sensor | PT1000 |
| Adjustable safety loop minimum temperature | 50°C |
| Adjustable safety loop maximum temperature | 350°C |
| Power consumption | 600W |
| Power supply | AC 220V/AC 110V, 50/60Hz |
| Fuse | 250V, 4A/8A, Ф5x20 |
| Dimension | 160×270×90mm |
| Net weight | 2.4 kg |
Support rod and temperature probe
