Product Data Sheet · Laboratory Equipment

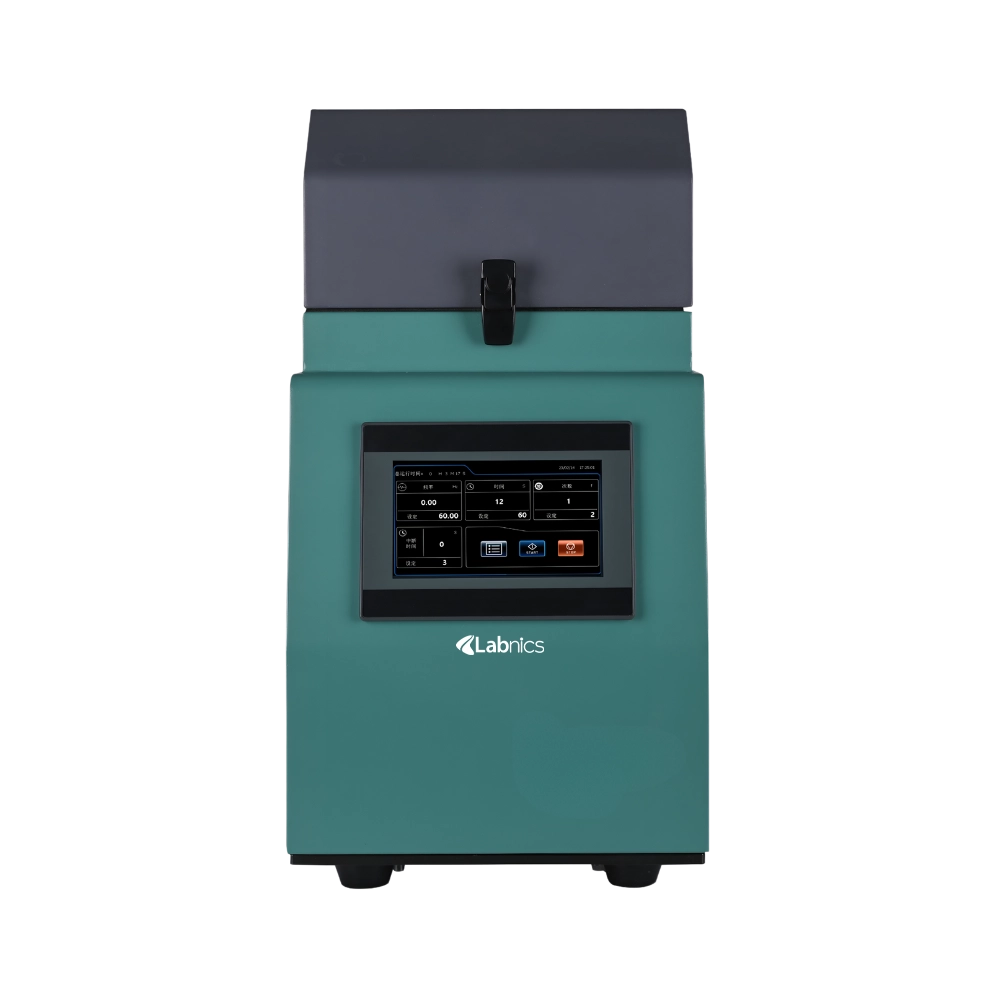

High Throughput Tissue Grinder NHTG-103 supports grinding speeds of up to 2100 rpm for fast processing. It features a frequency range of 0 to 70 Hz, allowing precise control over temperature. This grinder accommodates different sample tubes for flexible laboratory operations. Our unit achieves ultra-fine particle sizes ≤3µm with minimum grinding time. It ensures safe and efficient performance with rapid speed transitions.
| Sample handling capacity | 348×0.2 to 0.5 ml 192×2 ml 48×(5 to10 ml 24×15 ml 4×25 ml 4×50 ml Choose two of them |
|---|---|
| Vibration frequency range | 0 to 70HZ, 0 to 2100rpm |
| Typical crushing time | 155 to 2min |
| Liquid-crystal display | 7-inch touch screen, display working status, convenient and Intuitive operation |
| Number of grinding platforms | More than 2 grinding tanks can be used |
| Feed and discharge size | Maximum feed size: no requirement Final discharge particle size: ≤3µm. |
| Grinding bead material | Hard steel, stainless steel, tungsten carbide, agate, zirconia, ceramic, chrome steel, quartz sand |
| Grinding bead size | 0.1 to 30mm |
| Liquid nitrogen pre-cooling function | Yes |
| Stroke of fixture | 40mm(vertical) |
| Grinding time range | OS 99995 |
| Grinding tank material | Hard steel, stainless steel, tungsten carbide, agate, zirconia, TEfion aluminum alloy |
| Speed up/speed cut | Maximum speed was reached within 2 seconds. Minimum speed was reached within 2 seconds |
| Noise level | <50dB |
| Type of protection | IP 30 |
| Power | 350W |
| Dimensions (L×W×H) | 520×380×520mm |
