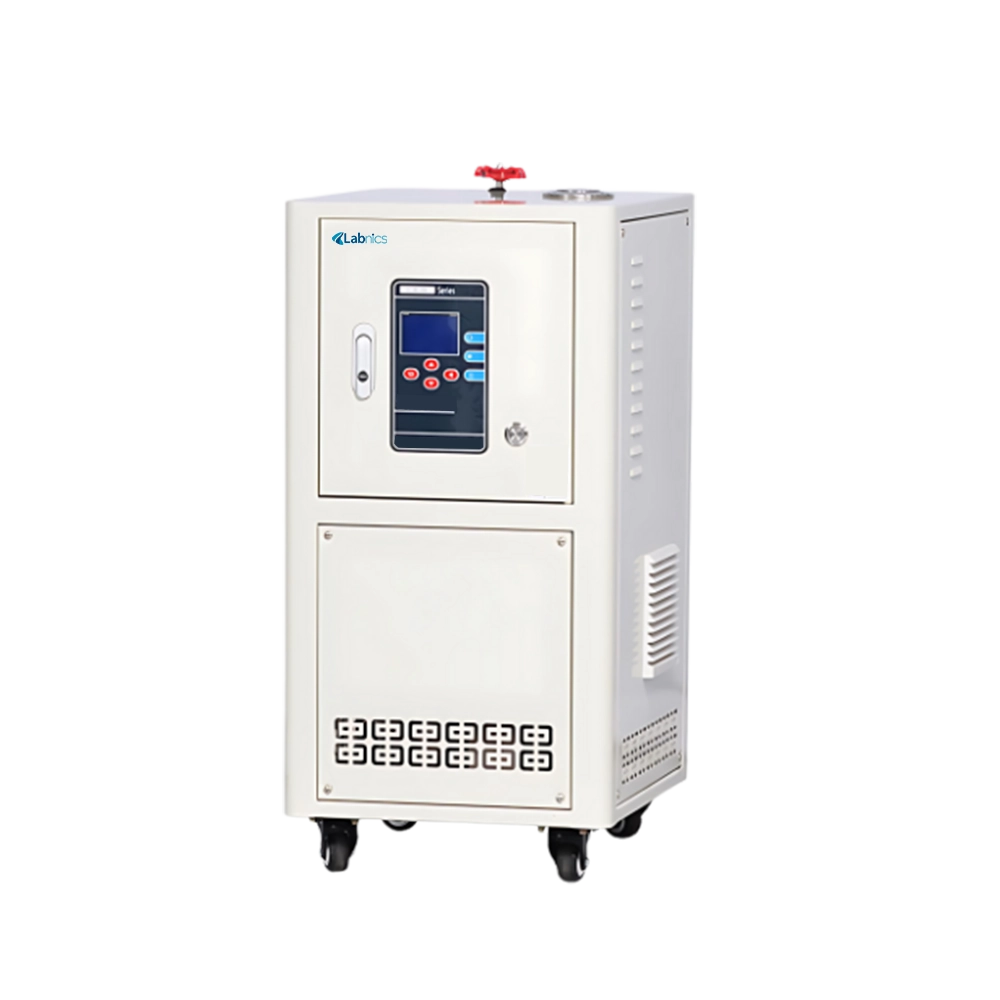

Heating Circulator NHTC-103 is designed with a capacity of 65L to handle large volumes of heat-conducting fluid. It features an oil-based electric heating system in a fully enclosed structure to prevent oil mist volatilization. Our unit allows for fast temperature adjustment by injecting cooling water to adapt to process demands. It includes a visual level indicator for easy monitoring of fluid levels. This circulator is equipped with an exhaust valve to eliminate gas buildup, ensuring smooth operation.
| Capacity | 65L |
| Temperature range | RT to 200°C |
| Temperature accuracy | ±0.5°C |
| Ambient temperature | 5 to 30°C |
| Ambient humidity | 45 to 80%RH |
| Circulating pump type | Vortex pump |
| Circulating pump pressure | 2.5bar |
| Cycle interface | DN20 |
| Cooling water interface | DN20 |
| Rated flow | 110L/min |
| Heating method | Electric heating |
| Cooling method | Water cooling |
| Temperature sensor | PT100 |
| Water cooler | Plate heat exchanger |
| PLC control system | Siemens S7-200smart |
| PLC protocol | Modbus RTU protocol RS485 interface (optional RS232 Ethernet) |
| PLC operation panel | 7-inch Siemens color touch screen (optional 10-inch) |
| PLC programming | 5 programs can be edited, each with up to 40 steps |
| PLC control mode | Material temperature and equipment outlet temperature can be switched automatically |
| PLC data output | Support U disk data output, can be outputted temperature data in TXT format |
| Display | LCD |
| Safety protection | Self-diagnosisHigh-pressure switchOverload relayOver-temperature alarm |
| Heating power | 25kW |
| Cooling capacity (200°C) | 25kW |
| Cooling capacity (100°C) | 20kW |
| Cooling capacity (65°C) | 8.5kW |
| Power consumption | 26.5kW |
| Power supply | 220V/380V/480V, 50/60Hz |
| Packaging Dimension | 1150 × 890 × 1590 mm |
| Gross Weight | 392 kg |
Heating Circulator NHTC-103 is used to maintain a constant and precise temperature of liquids by ensuring uniform heat distribution. It is widely used in chemical synthesis, petrochemicals, life sciences, pharmaceutical manufacturing, and energy sectors.
Stainless steel hose with thermal insulation (3.6 meters/piece),1pc Main engine, 1 set Matching valves, 2 sets Raw tape, 1 roll Operation manual, 1pc
