Gradient Thermal Cycler NGTC-103

Laboratory Equipment

Product Series / Gradient Thermal Cycler

Gradient Thermal Cycler

NGTC-103

Gradient PCR Type

96 × 0.2 ml (6 independent 16-well block) Capacity

4°C-100°C Temperature Range

info@labnics.com www.labnics.com

Gradient Thermal Cycler

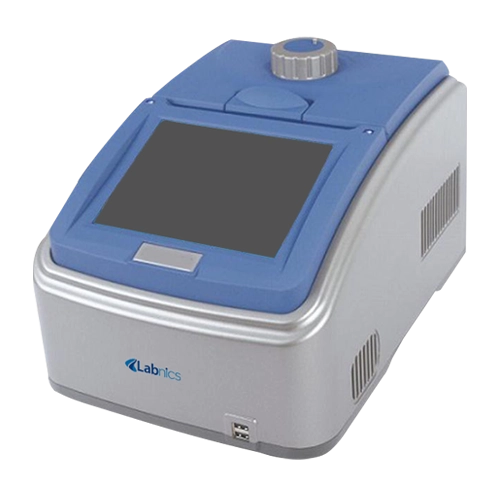

Gradient Thermal Cycler NGTC-103

Gradient Thermal Cycler NGTC-103 is an advanced molecular biology tool with Peltier based technology that independently controls deviation in thermal cycles. It is an automated system with a double gradient block that allows execution of two different PCR program simultaneously. It is featured with an email-alert function that notifies the user on termination of a program.

Key metrics

Gradient

PCR Type

96 × 0.2 ml (6 independent 16-well block)

Capacity

4°C-100°C

Temperature Range

Labnics Ltd.

Specifications

PCR Type	Gradient
Capacity	96 × 0.2 ml (6 independent 16-well block)
Temperature Range	4°C-100°C
Heating Rate	6°C /s
Cooling Rate	4°C /s
Uniformity	≤±0.3°C
Accuracy	≤±0.2°C
Display Resolution	0.1°C
Temperature Control	Block\Tube
Ramping Rate Adjustable	0.1°C ~6°C
Gradient Uniformity	≤±0.2°C
Gradient Accuracy	≤±0.2°C
Gradient Temperature Range	30°C ~100°C
Hot Lid Temperature	30°C ~110°C
Maximum no. of steps	30
Maximum no. of cycles	100
Time Increment/Decrement	2 sec ~600 sec
Temperature Increment/Decrement	0.1-10.0°C
Hold at	4℃ constant
Power Supply	86 V ~264V AC, 47Hz~63Hz, 600 W
Overall Dimensions (L×W×H)	390×270×255 mm
Net weight	9kg

Gradient Thermal Cycler NGTC-103 · Product Details

Features

8" TFT colour touchscreen with graphical representation allows access for setting up and monitoring of thermal cycles
Six piece Peltier heating with 6 independent temperature control zone
Provides good resistance to corrosive chemicals
High ramping rate allows quick heating and cooling of thermal blocks
Equipped with stepless adjustable hot lid with pressure protection
Built-in 11 standard program template, can be customized by the user
Reinforced aluminium module engineered with anodizing technology provides rapid heating-conducting property
Internal large memory of about 10000 PCR files with configurable folders
Large data storage capacity with USB2.0 and LAN interface to obtain connectivity with PC, software and printer
One-click incubation, preliminary Incubation step executes denaturation of test sample that doesn’t require prior sample preparation
Automatic restart function post power failure
User login is secured with 3-tier permission and password protection to disallow unauthorized access to the system
Programmed with email-alert function on termination of thermal cycles

Applications

It is used for crucial analysis and optimization of PCR protocols with variable temperature settings for denaturation or elongation step. It has wide applications in fields of clinical, haematology, healthcare, pharmaceutical, and microbiological etc. Also, it is utilized in research and development sectors for genomics and proteomics studies.
