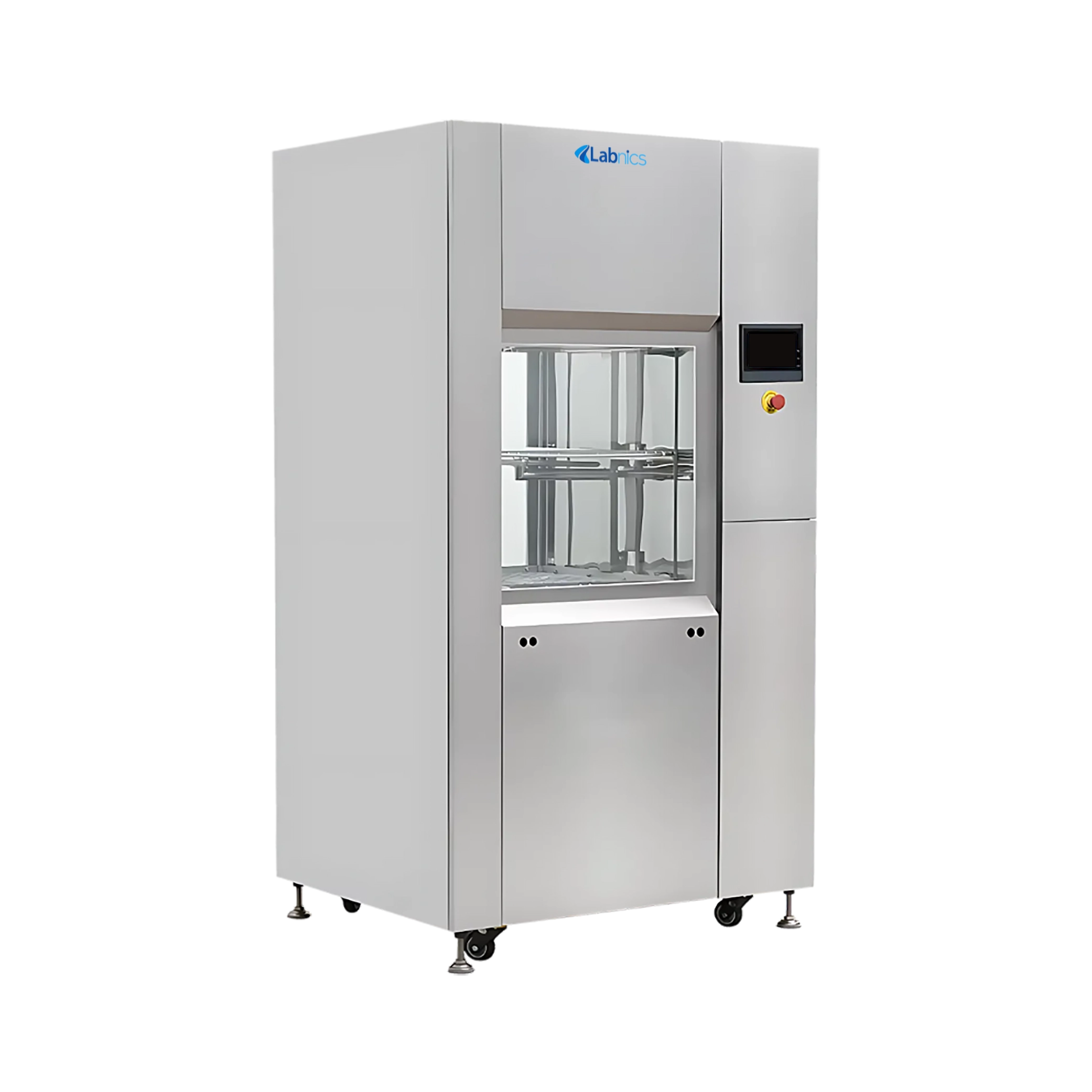

Automatic Glassware Washer NAGW-205 features a large 420L capacity for extensive laboratory cleaning. It delivers a powerful 1000L/min water flow to ensure effective and thorough washing. This unit provides three levels of password protection for secure operation. It supports efficient cleaning with optimized spray arms and nozzles for complete coverage. Our washer has a 7-inch LCD touchscreen display for intuitive control and easy monitoring.
| Capacity | 420L |
| Water consumption/cycle | 25L |
| Tank internal temperature | 0 to 99°C |
| Water supply pressure | 0.3 to 1 MPa |
| Washer load level | 2 |
| Peristaltic pump for cleaning agent | 2 independent pumps control the detergent agent and neutralizing agent |
| Cleaning agent level sensor | Yes |
| Washing pump | 1000L/min |
| Drying function | Yes |
| Steam Condenser | No |
| Control system | Microprocessor |
| Display | 7-inch color LCD touchscreen |
| Cleaning program | 12 pre-set programs (editable) + 99 PLC free programming |
| Password protection | 3 levels password |
| Safety emergency button | Yes |
| USB port | Optional |
| Integrated printer | Optional |
| Online monitoring performance of washing | No |
| Door | Double-layered glass door, electric 2 doors |
| Safety door lock | Yes |
| Built-in RO water pump | No |
| Noise level | Less than 60 dB |
| Power consumption (water washing) | 1.5kW |
| Power consumption (water heating) | 5kW |
| Power consumption (drying) | 3kW |
| Overall power consumption | 7kW |
| Chamber dimension | 638×700×703mm |
| External dimension | 1110×900×2165mm |
| Packaging dimension | 1230×1020×2290mm |
| Net weight | 370kg |
| Gross weight | 460kg |
Automatic Glassware Washer NAGW-205 is used to ensure thorough, consistent, and contamination-free cleaning of laboratory glassware, making it essential in research labs, pharmaceutical industries, and healthcare facilities.
