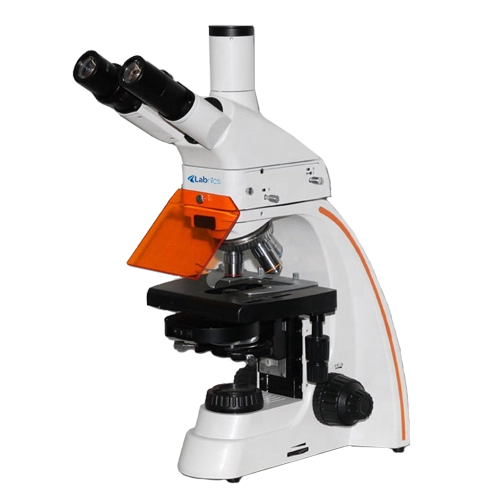

FLUORESCENCE MICROSCOPE NFM-100

Fluorescence Microscope NFM-100 is an optical microscope made up of solid brass body that uses fluorescence for screening for organic and inorganic substances. It is equipped with halogen lamp as the light source with adjustable brightness. The full range coarse adjustment feature ensures increased visibility of the cell properties.

FEATURES

⇋ Superior quality possessing anti-reflective and anti-fungal properties
⇋ It is equipped with stage stopper ensuring no damage to the slide as well as objective
⇋ Hard coated surface with scratch resistance
⇋ Parfocality and Centration of all the objectives
⇋ Ports fitted with dust proof plastic caps
⇋ Vertical movement of condenser
⇋ X&Y axis movement with precise ball bearing guides
⇋ Low drive co-axial movement are efficiently controlled
⇋ Dual specimen holder fitted spring for accurate positioning
⇋ Rulers and scale aids in easy mounting of specimen
⇋ Both coarse and fine focusing mechanisms possible

SPECIFICATIONS

Optical System	Plan Achromatic optical system
Observation	Fluorescence
Light source	6V/20W halogen lamp
Viewing tube	Trinocular, 30° inclined, 360°rotating
Objectives	4X/0.1, 10X/0.25, 40X/0.65 100X/1.25
Eyepiece	WF 10 ×(Ø 22mm)
Nosepiece	Quadruple revolving Nosepiece
Condenser	Kohler N.A. 1.25 condenser with Iris Diaphragm
IPD adjustment	54mm ~ 75mm
Diopter adjustment	±5 mm
Stage	Double layer mechanical stage
Moving accuracy	0.1mm
Fine adjustment accuracy	0.3 mm
Dimensions of Stage	210× 140mm
Moving range	75×50 mm
X & Y travel range	75x50 mm
Power supply	AC110V/220V , 50-60Hz
External Dimensions	46×59×34 cm
Weight	11kg

APPLICATIONS

It is widely used for study of cell biology, cell structures, identification of live and dead cells, imaging of cell’s genetic material etc in areas like Cellular biology, Microbiology, Animal biotechnology, and oncology centres etc.

OPTIONAL ACCESSORIES

Accessories No	Name
1	Mercury Lamp 100W/DC
1	Epifluorescence Kit : a. Fluorescence filter B group: excitation wavelength 420-485nm b. Fluorescence filter G group: excitation wavelength460-550nm c. Fluorescence filter UV group: excitation wavelength330-400nm d. Fluorescence filter V group: excitation wavelength395-415nm
