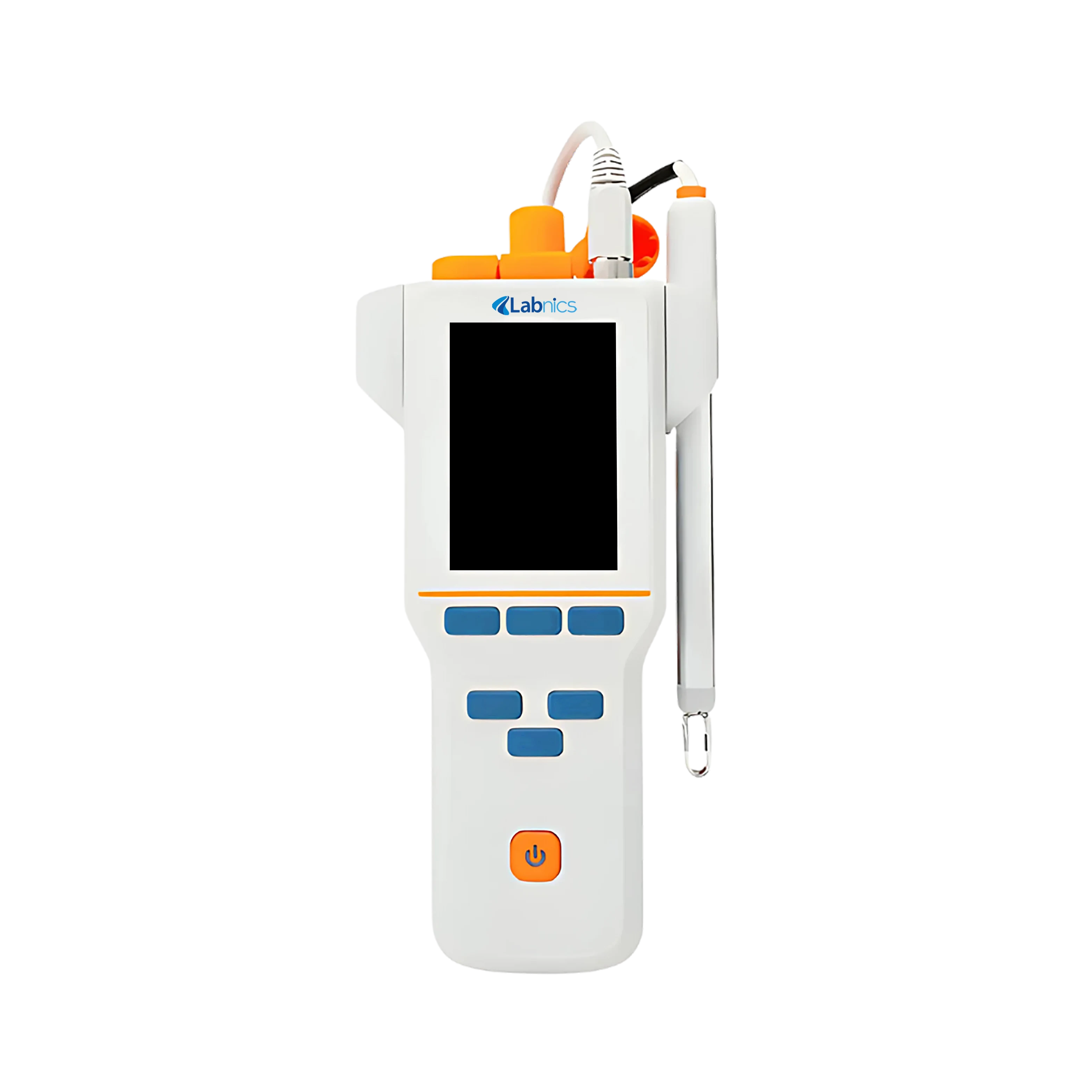

Portable Conductivity Meter NCM-201 measures conductivity from 0.000 μS/cm to 500 mS/cm for ultra-pure and highly conductive solutions. It allows users to switch between Celsius and Fahrenheit, accommodating different preferences. This unit comes with a 3.5-inch LCD screen for clear and easy readings. It includes a built-in date and time function for accurate data tracking. Our conductivity meter features an auto-shutdown mechanism to extend battery life.
| Conductivity range | 0.000 μS/cm to 500 mS/cm |
| Conductivity resolution | 0.001 μS/cm minimum, various range selection |
| Conductivity accuracy | ±1.0% FS |
| Conductivity reference temperature | 20°C, 25°C |
| Conductivity calibration points | Up to 3 |
| Conductivity standard recognition | 84 μS/cm, 1413 μS/cm, 12.88 mS/cm |
| Resistivity range | 5.00 Ωcm to 20.00 MΩcm |
| Resistivity resolution | 0.01 Ωcm minimum |
| Resistivity accuracy | ±1.0% FS |
| TDS range | 0.00 ppm to 300ppt |
| TDS resolution | 0.01 ppm minimum, various range selection |
| TDS accuracy | ±1.0% FS |
| Salinity range | 0.0 to 80.0 ppt |
| Salinity resolution | 0.1 ppt |
| Salinity accuracy | ±2 ppt |
| Temperature range | -5 to 110°C, 23 to 230°F |
| Temperature unit | °C, °F |
| Temperature resolution | 0.1°C |
| Temperature accuracy | ±0.2°C |
| Reading mode | Auto read (fast, medium, slow), timed, continuous |
| Reading prompts | Reading, stable, locked |
| Temperature compensation | ATC, MTC |
| Data storage | 500 results each |
| GLP features | Yes |
| Conductivity with temperature probe | 5-pin aviation connector |
| Outputs | USB, PC, printer |
| Display backlight | Yes |
| Auto shutdown | 300, 600, 1200, 1800, 3600 sec., off |
| IP rating | IP65 |
| Date and time | Yes |
| Power supply | Rechargeable lithium battery, AC adapter, 100 to 240VAC input, DC5V output |
| Dimension | 80×225×35mm |
| Packaging dimension | 410×330×165mm |
| Weight | 400g |
| Gross weight | 5kg |
Portable Conductivity Meter NCM-201 is used to measure conductivity, TDS, salinity, and resistivity for accurate water quality analysis. It is utilized in laboratories, industries, environmental monitoring, water treatment plants, and field testing.
