Product Data Sheet · Laboratory Equipment

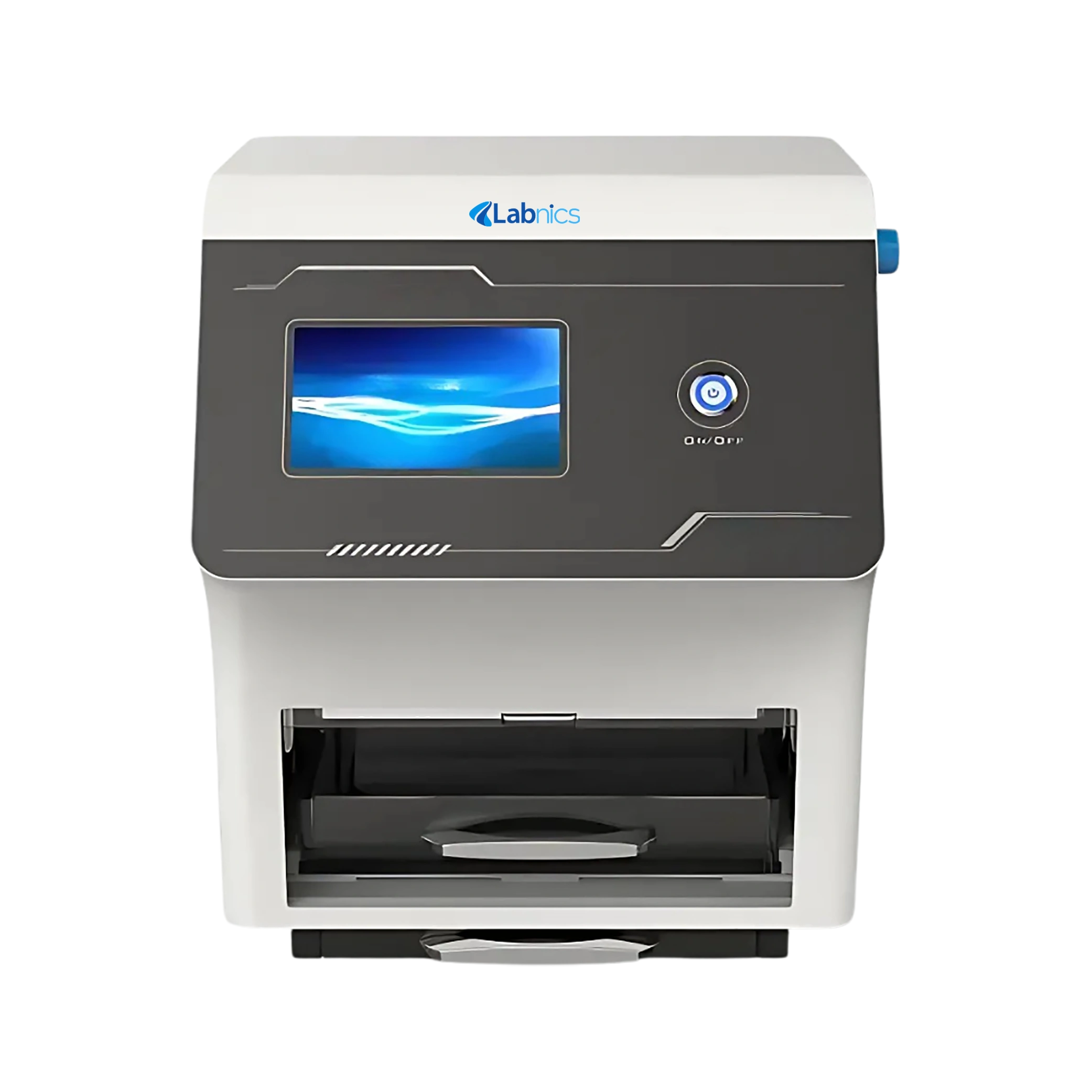

Compression Testing Machine NCTM-400 comes with a pressure range of 50 to 700 KPa and supports air pressure from 0 to 0.7 MPa. It features an LCD screen for real-time parameter display. This compression tester uses a pneumatic pressure system for efficient operation. It offers adjustable compression pressure for controlled and precise testing. Our unit is built with advanced technology to ensure reliable testing performance.
| Pressure Range | 50 to 700 Kpa |
|---|---|
| Air Pressure Range | 0 to 0.7 MPa |
| Pressure Accuracy | ±0.8% |
| Test Distance | 0 to 100 mm |
| Air Connection | Ф6mm Air pipe |
| Test Disc | 1 |
| Power Consumption | 100 W |
| Power Supply | AC 220 V, 50 Hz |
| Internal Dimensions | 280 × 180 mm |
| External Dimensions | 394 × 355 × 475 mm |
| Weight | 28.8 kg |
